NSN 5365-00-822-5180 NAS42DD68, NAS42DD6-8, NAS42DD68N
Product Details | SLEEVE SPACER
5365-00-822-5180 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: NAS42DD68, NAS42DD6-8, NAS42DD68N, NAS42DD6-8N, SP04019, SP04-019, 10118668 , 9315A19417, 9315-A-194-17, 5365-00-822-5180, 00-822-5180, 5365008225180, 008225180
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-822-5180 | 13207 ( SPACER, SLEEVE ) |

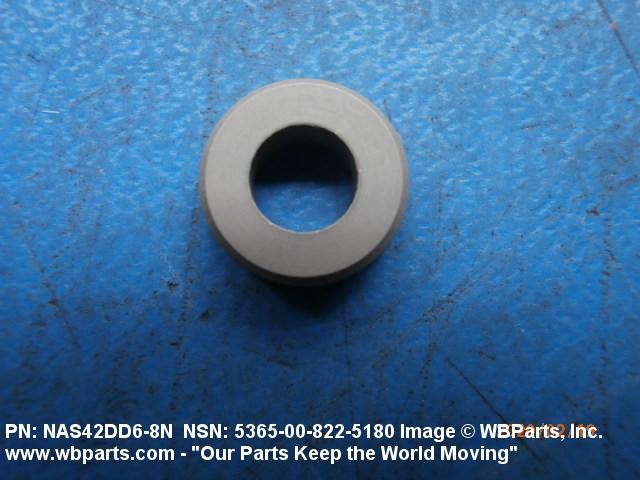

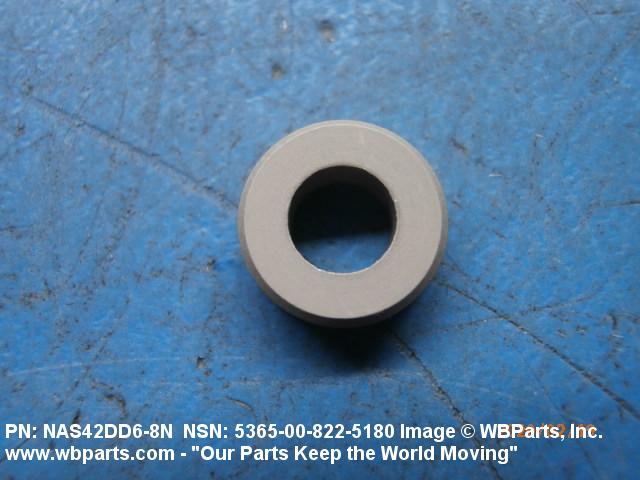

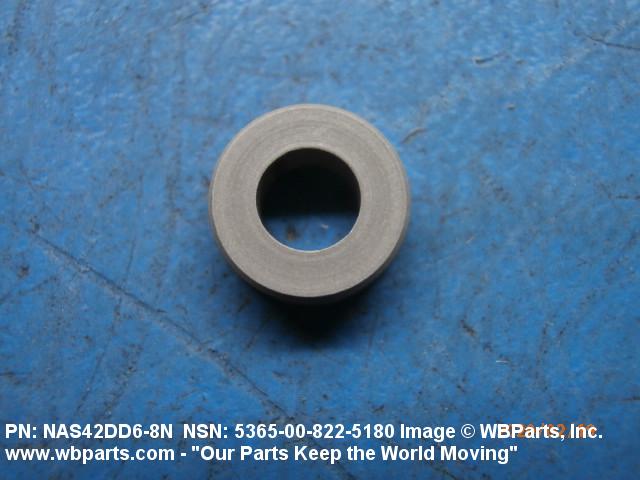

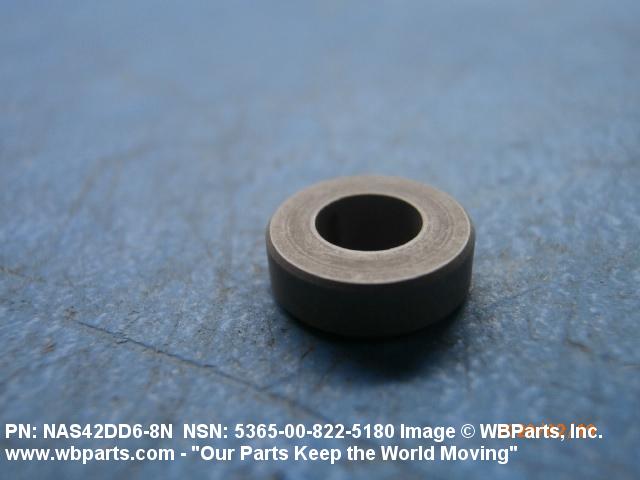

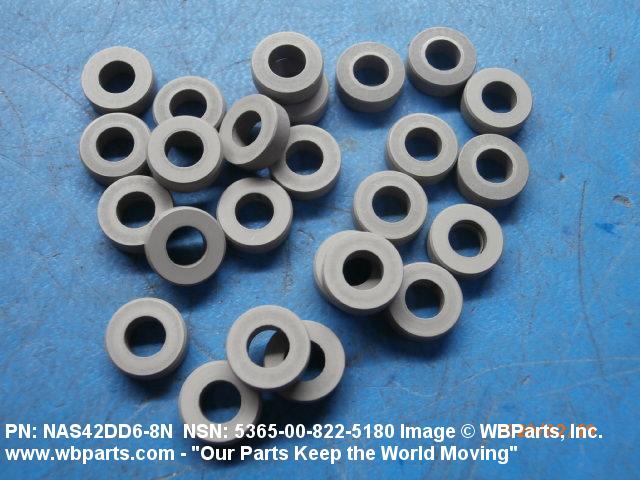

Drawings & Photos | NSN 5365-00-822-5180
Demand History | NSN 5365-00-822-5180
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-822-5180 | 2025-08-232 | 5212 | DIBBS |
| 5365-00-822-5180 | 2025-08-224 | 5212 | DIBBS |
| 5365-00-822-5180 | 2021-12-342 | 25 | US |
| 5365-00-822-5180 | 2020-04-99 | 50 | United States |
| 5365-00-822-5180 | 2020-02-41 | 25 | United States |
| NAS42DD68N | 2019-07-197 | 20 | United States |
| 5365-00-822-5180 | 2019-02-36 | 12476 | DIBBS |
| 5365-00-822-5180 | 2018-08-220 | 5741 | DIBBS |
| 5365-00-822-5180 | 2015-05-147 | 7324 | DIBBS |
| 5365-00-822-5180 | 2013-10-282 | 5429 | DIBBS |
Cross Reference | NSN 5365-00-822-5180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9315-A-194-17 | 71279 | INTERCONNECTION PRODUCTS INC |
| NAS42DD6-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS42DD6-8N | 023T7 | REFA INTERNATIONAL INC. DIV REFA INTERNATIONAL INC |
| NAS42DD6-8N | 0NFB8 | DIALOGIC CORP. DBA DIALOGIC FASTENERS |
| NAS42DD6-8N | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SP04-019 | 23386 | THALES DEFENSE & SECURITY, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-822-5180
Related Products | NSN 5365-00-822-5180
Technical Data | NSN 5365-00-822-5180
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | WW-T-700/3,TYPE 1,T3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541,CL 1A MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

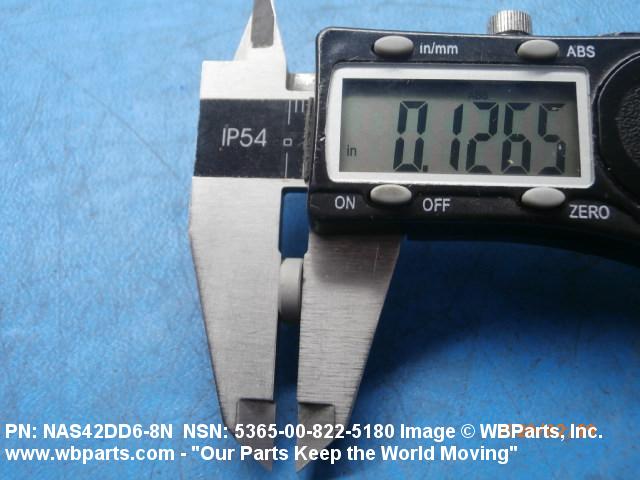

| OVERALL LENGTH | 0.1200 INCHES MINIMUM AND 0.1300 INCHES MAXIMUM |

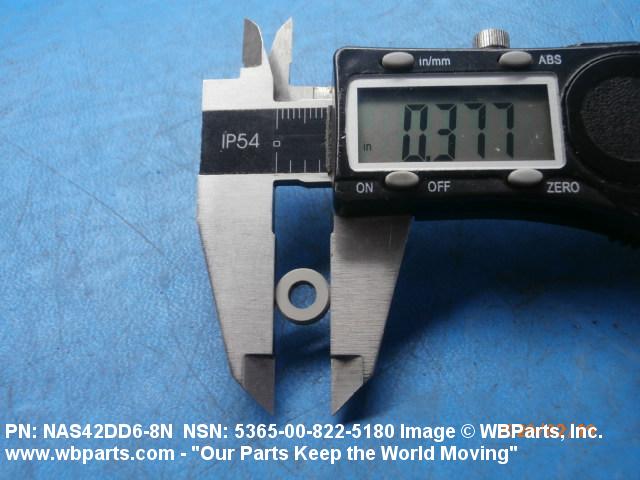

| BODY OUTSIDE DIAMETER | 0.3650 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |

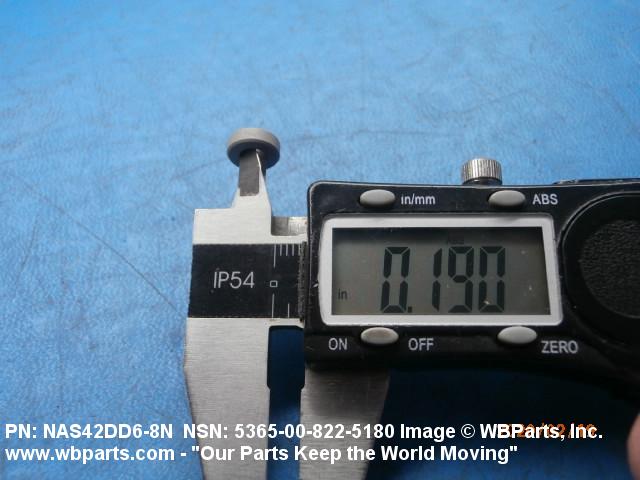

| BODY INSIDE DIAMETER | 0.1900 INCHES MINIMUM AND 0.1960 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SPECIAL FEATURES | COLOR,GRAY ANODIZED OR BLUE CHROMATE |
| SPECIFICATION/STANDARD DATA | 80205-NAS42 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5365-00-822-5180
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-822-5180
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
