NSN 5365-00-846-5612 898607R1, 00-846-5612, 008465612
Product Details | NONMETALLIC BUSHING
5365-00-846-5612 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: 898607R1, 5365-00-846-5612, 00-846-5612, 5365008465612, 008465612
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 DEC 1966 | 00-846-5612 | 39929 ( BUSHING, NONMETALLIC ) |
Drawings & Photos | NSN 5365-00-846-5612
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-846-5612
Technical Data | NSN 5365-00-846-5612
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC |
| SPLIT DESIGN FEATURE | NOT INCLUDED |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |

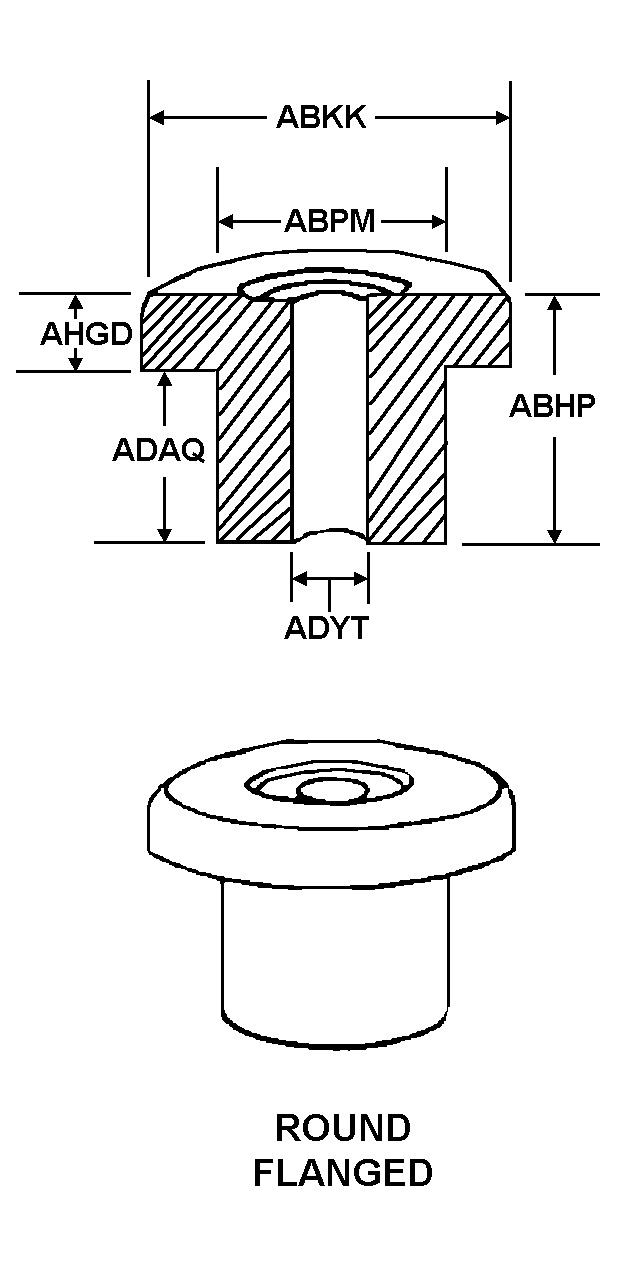

| STYLE DESIGNATOR | 13 ROUND FLANGED |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
| FLANGE DIAMETER | 1.125 INCHES NOMINAL |
| BODY DIAMETER | 0.812 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.569 INCHES NOMINAL |
| FLANGE HEIGHT | 0.438 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5365-00-846-5612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-846-5612
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
