NSN 5365-00-917-1057 MAG25669, 00-917-1057, 009171057
Product Details | SHIM SET
5365-00-917-1057 Two or more sizes and/or types of shims packaged or grouped for issue for complete one-time replacement. See also SHIM ASSORTMENT.
Part Alternates: MAG25669, 5365-00-917-1057, 00-917-1057, 5365009171057, 009171057
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1966 | 00-917-1057 | 22784 ( SHIM SET ) |

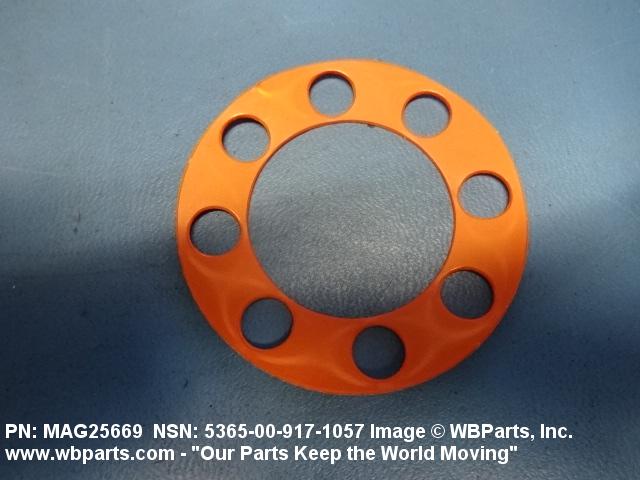

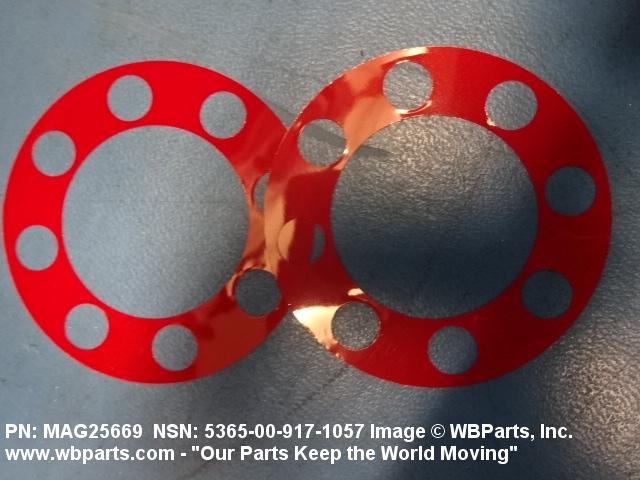

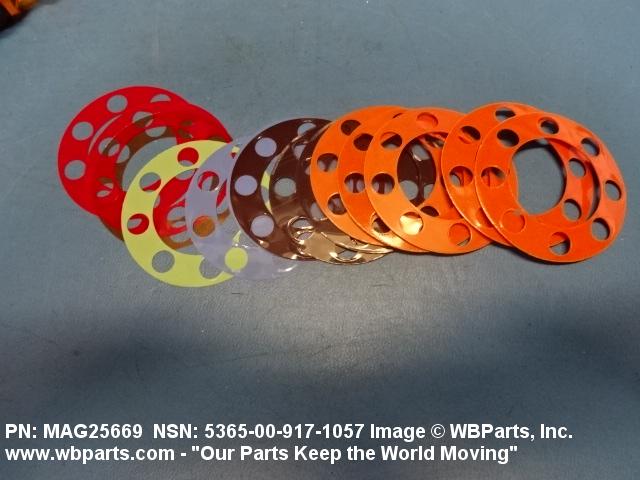

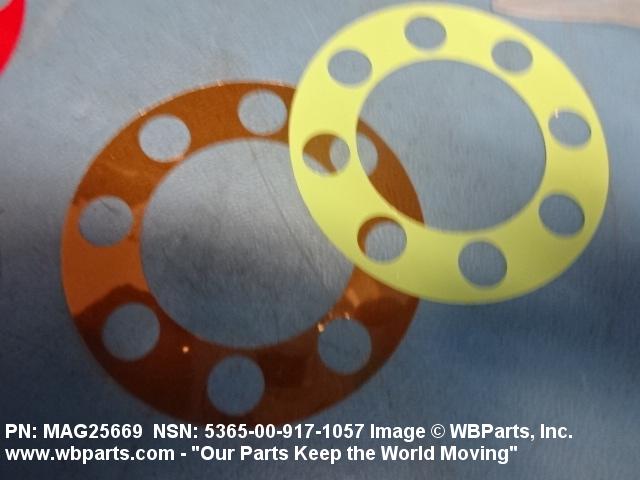

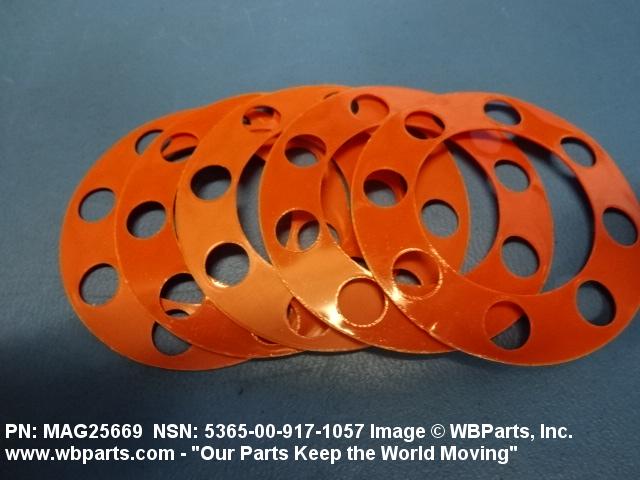

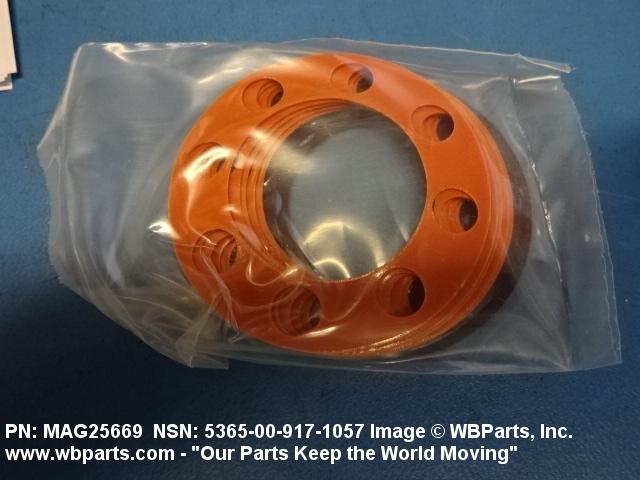

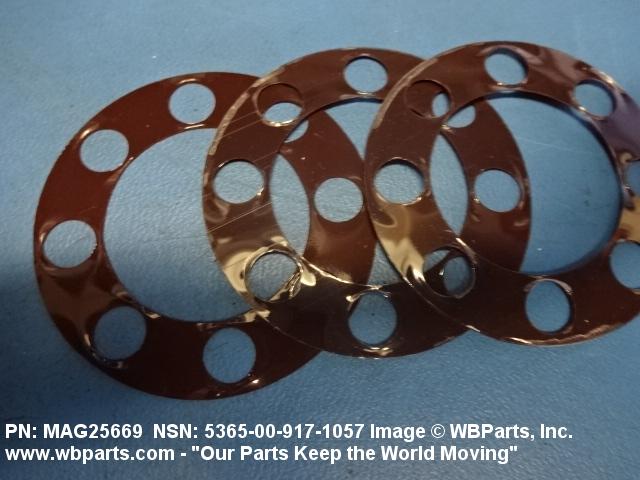

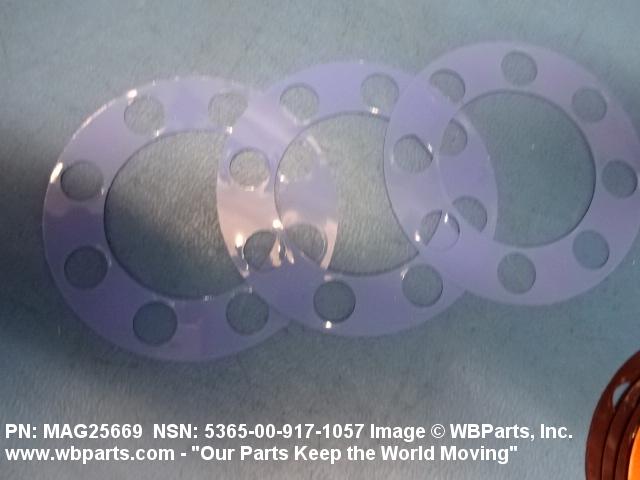

Drawings & Photos | NSN 5365-00-917-1057
Demand History | NSN 5365-00-917-1057
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-917-1057 | 2019-01-30 | 7 | DIBBS |
| 5365-00-917-1057 | 2018-12-354 | 10 | US |
| 5365-00-917-1057 | 2018-12-353 | 10 | DIBBS |
| 5365-00-917-1057 | 2018-09-261 | 13 | DIBBS |
| 5365-00-917-1057 | 2018-08-235 | 15 | DIBBS |
| 5365-00-917-1057 | 2017-11-325 | 15 | United States |
| 5365-00-917-1057 | 2017-10-299 | 1 | DIBBS-KIT |
| MAG25669 | 2017-10-299 | 1 | |
| 5365-00-917-1057 | 2017-10-295 | 15 | DIBBS |
| 5365-00-917-1057 | 2017-06-152 | 8 | DIBBS |
Cross Reference | NSN 5365-00-917-1057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MAG25669 | 78567 | SPECO CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-917-1057
Related Products | NSN 5365-00-917-1057
Technical Data | NSN 5365-00-917-1057
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 15 |
| NONSUPPLY ITEMS AND QUANTITIES | SHIM 5 SHIM 3 SHIM 3 SHIM 1 SHIM 2 SHIM 1 |
| END ITEM NAME | ACTUATOR INSTL,WING FLAP |
| END ITEM SOURCE | 78567 |
| END ITEM IDENTIFICATION | 3C25000-101 |
| MANUFACTURERS CODE | 78567 |
| DESIGN CONTROL REFERENCE | MAG25669 |
Restrictions/Controls & Freight Information | NSN 5365-00-917-1057
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB7 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-917-1057
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | JY | SX:MISCELLANEOUS AIRCRAFT ACCESSORIES AND SYSTEMS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
