NSN 5365-00-936-6381 52C9121, 52C912-1, 00-936-6381
Product Details | RING SPACER
5365-00-936-6381 A circular-shaped item designed to maintain predetermined distance between assembled parts and/or for distributing pressure or preventing endwise movement between member parts. It has a solid cross-section and two flat parallel bearing surfaces. The distance between the bearing surfaces perpendicular to the axis of the centrally located hole shall not exceed 25 percent of the outside diameter. The diameter of the centrally located hole must exceed 75 percent of the outside diameter. Excludes laminated items. For items manufactured from impregnated graphite or lubricated nonmetallic materials, excluding felt or plastics, see GASKET. For items manufactured from lubricated plastics, see BEARING, WASHER, THRUST. For items manufactured from lubricated felt, see FELT, MECHANICAL, PREFORMED. Excludes DISK, VALVE; INSULATOR WASHER; and SHIM. See also SPACER, PLATE and SPACER, SLEEVE.
Part Alternates: 52C9121, 52C912-1, 5365-00-936-6381, 00-936-6381, 5365009366381, 009366381
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 1967 | 00-936-6381 | 24307 ( SPACER, RING ) |

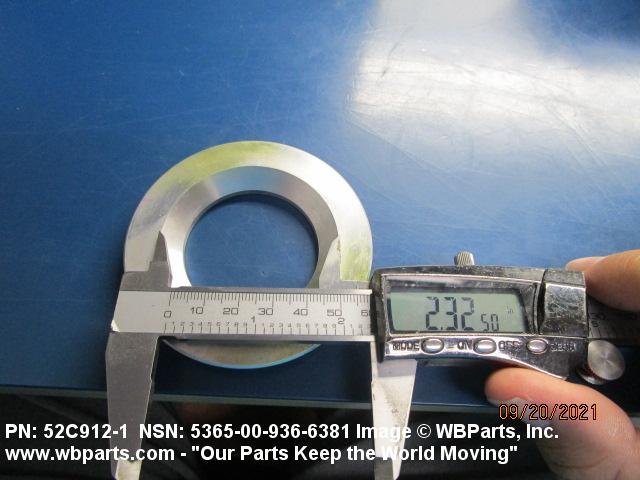

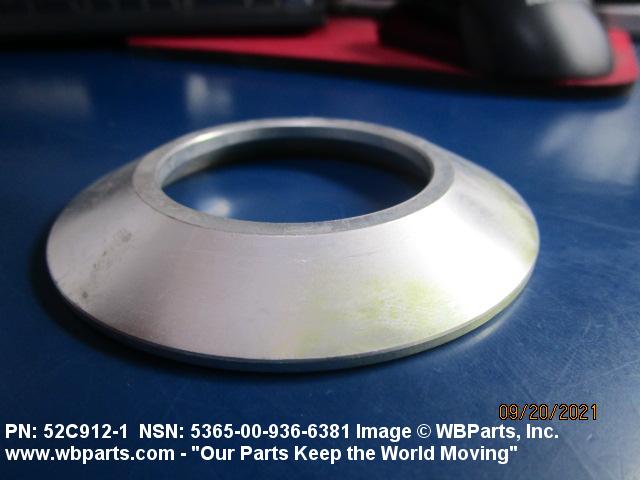

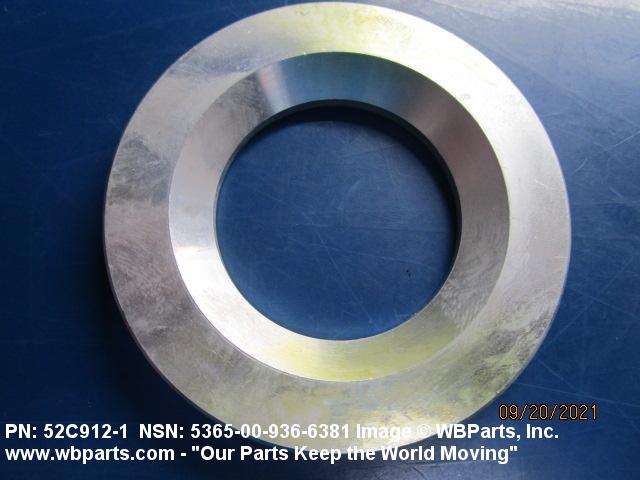

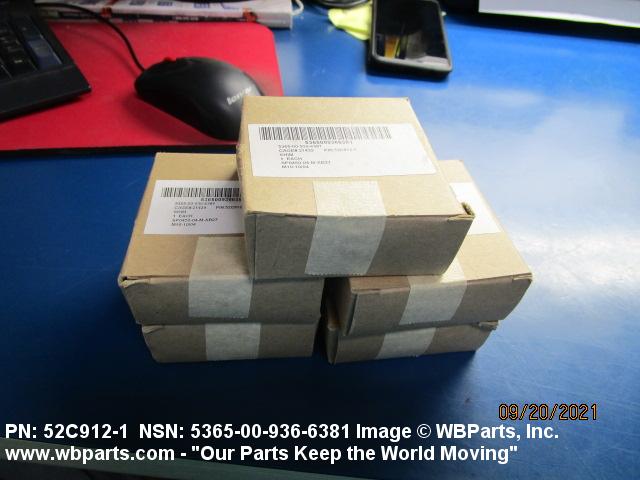

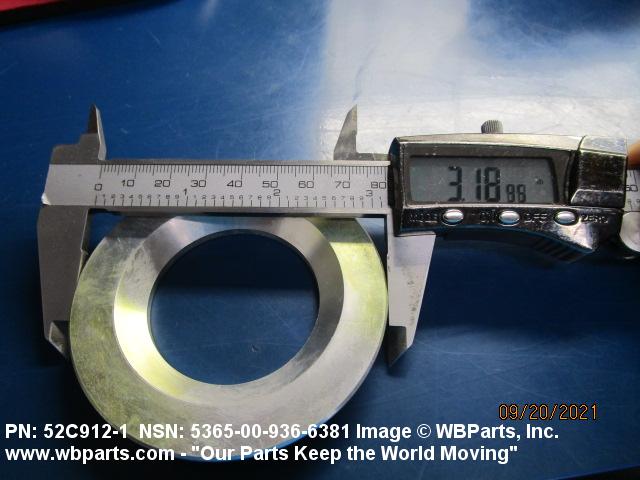

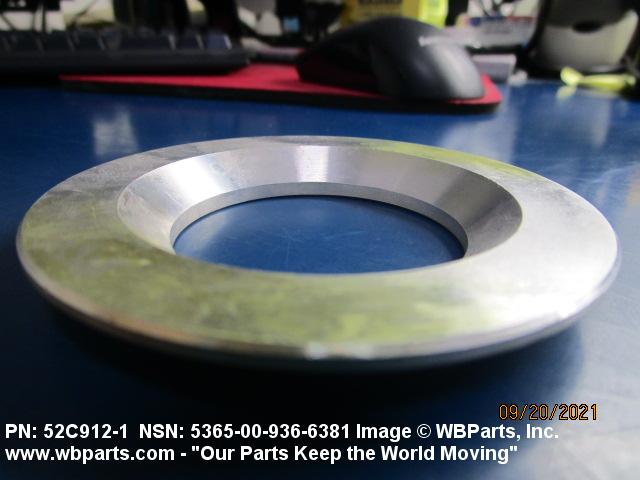

Drawings & Photos | NSN 5365-00-936-6381
Demand History | NSN 5365-00-936-6381
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52C912-1 | 2022-03-75 | 106 | DIBBS |
| 52C912-1 | 2022-01-04 | 31 | DIBBS |
| 52C912-1 | 2021-12-355 | 20 | DIBBS |
| 5365-00-936-6381 | 2021-09-259 | 5 | United States |
| 52C912-1 | 2021-08-217 | 5 | DIBBS |
| 52C912-1 | 2021-05-133 | 4 | DIBBS |
| 52C912-1 | 2020-02-35 | 16 | DIBBS |
| 52C912-1 | 2019-08-227 | 6 | DIBBS |
| 52C912-1 | 2019-04-97 | 11 | DIBBS |
| 5365-00-936-6381 | 2018-09-259 | 18 | DIBBS |
| 5365-00-936-6381 | 2017-08-219 | 20 | DIBBS |
| 5365-00-936-6381 | 2017-02-32 | 3 | DIBBS |
| 5365-00-936-6381 | 2017-01-24 | 3 | DIBBS |
| 5365-00-936-6381 | 2016-06-159 | 1 | DIBBS |
| 5365-00-936-6381 | 2016-05-151 | 1 | DIBBS |
| 5365-00-936-6381 | 2016-03-71 | 4 | DIBBS |
| 5365-00-936-6381 | 2016-03-63 | 4 | DIBBS |
| 5365-00-936-6381 | 2015-09-244 | 4 | DIBBS |
| 5365-00-936-6381 | 2015-08-235 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-936-6381
Technical Data | NSN 5365-00-936-6381
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FEATURES PROVIDED | CASEHARDENED |
| III SUPPLEMENTARY FEATURES | 0.375 IN. THICK; O/S DIA 3.188 IN.; I/S DIA 1.813 |
| III REFERENCE DATA AND LITERATURE | T.O.35E8-2-5-4 |
| III FUNCTIONAL DESCRIPTION | USED AS SPACER ON REEL SHAFT OF REEL SHAFT ASSY |
| MANUFACTURERS CODE | 21439 |
| DESIGN CONTROL REFERENCE | 52C912-1 |
Restrictions/Controls & Freight Information | NSN 5365-00-936-6381
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-936-6381
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QS | TG:AIRCRAFT GROUND SERVICES EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
