NSN 5365-01-024-2351 Y38495, 01-024-2351, 010242351
Product Details | SLEEVE SPACER
5365-01-024-2351 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: Y38495, 5365-01-024-2351, 01-024-2351, 5365010242351, 010242351
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUL 1976 | 01-024-2351 | 13207 ( SPACER, SLEEVE ) |

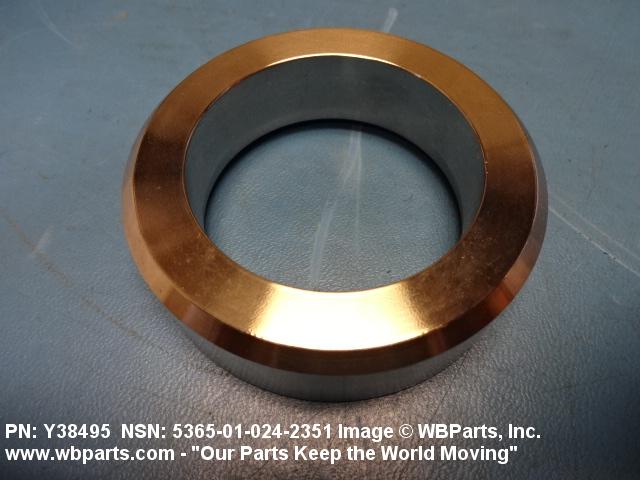

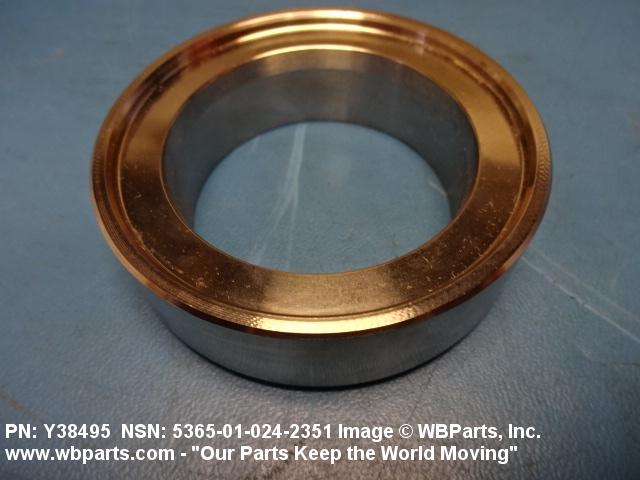

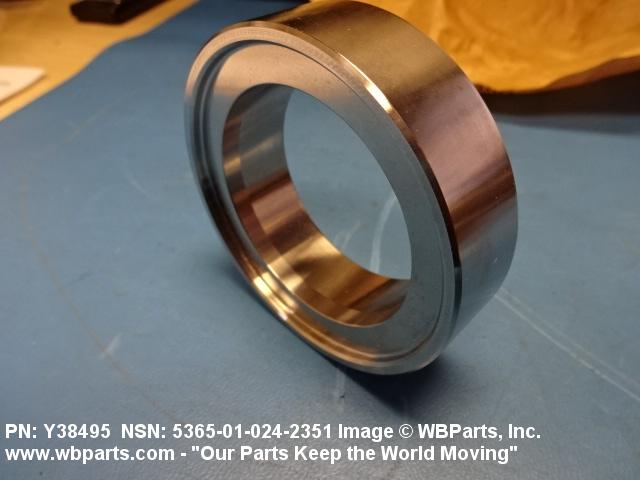

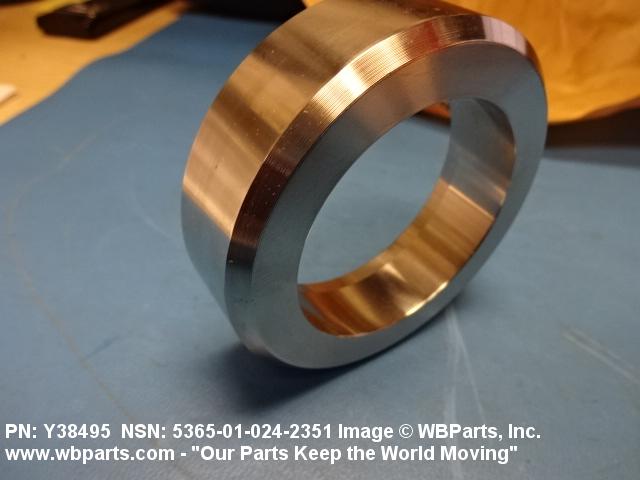

Drawings & Photos | NSN 5365-01-024-2351
Demand History | NSN 5365-01-024-2351
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| Y38495 | 2019-11-331 | 31 | DIBBS |
| Y38495 | 2019-11-323 | 31 | DIBBS |
| Y38495 | 2019-10-283 | 5 | DIBBS |
| Y38495 | 2019-09-273 | 1 | DIBBS |
| Y38495 | 2019-09-260 | 1 | DIBBS |
| Y38495 | 2019-07-204 | 1 | DIBBS |
| 5365-01-024-2351 | 2018-11-317 | 7 | DIBBS |
| 5365-01-024-2351 | 2018-08-233 | 4 | DIBBS |
| 5365-01-024-2351 | 2018-03-86 | 2 | DIBBS |
| 5365-01-024-2351 | 2017-03-89 | 1 | United States |
| 5365-01-024-2351 | 2017-01-17 | 1 | DIBBS |
| 5365-01-024-2351 | 2009-01-06 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-024-2351
Related Products | NSN 5365-01-024-2351
Technical Data | NSN 5365-01-024-2351
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 17C-1 SOLID INTERNAL FLANGE ONE END |

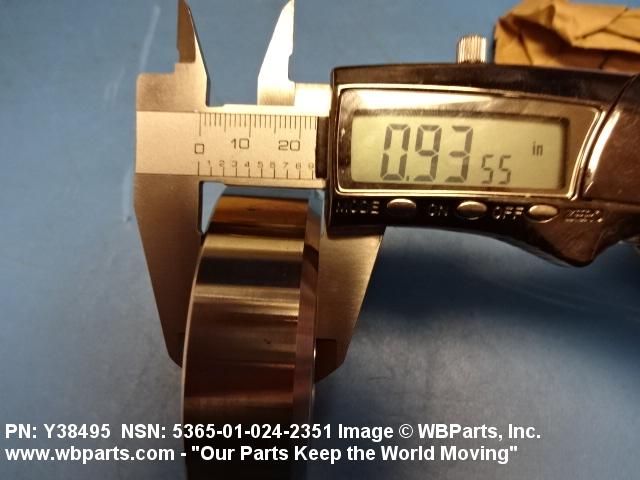

| OVERALL LENGTH | 0.9320 INCHES MINIMUM AND 0.9420 INCHES MAXIMUM |

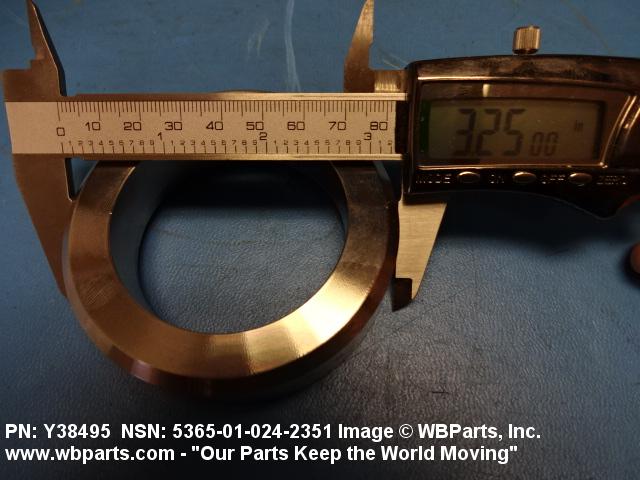

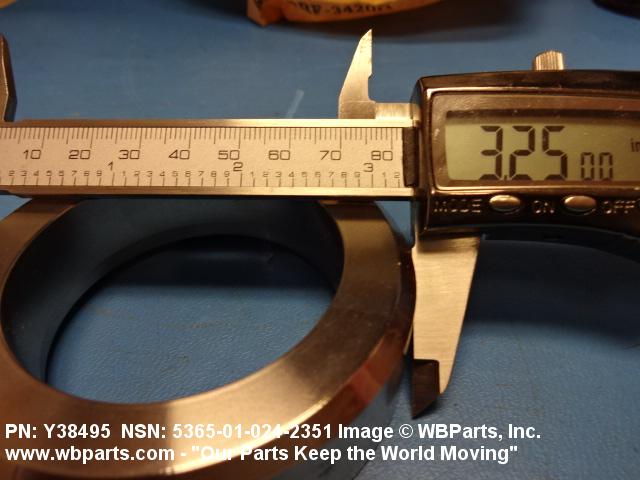

| BODY OUTSIDE DIAMETER | 3.2470 INCHES MINIMUM AND 3.2530 INCHES MAXIMUM |

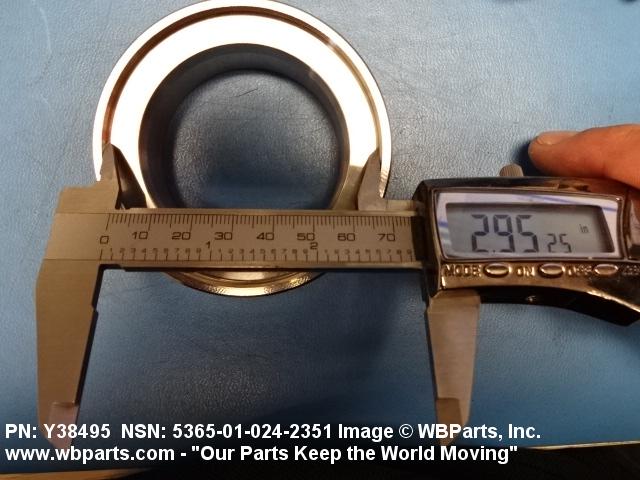

| BODY INSIDE DIAMETER | 2.9550 INCHES MINIMUM AND 2.9590 INCHES MAXIMUM |

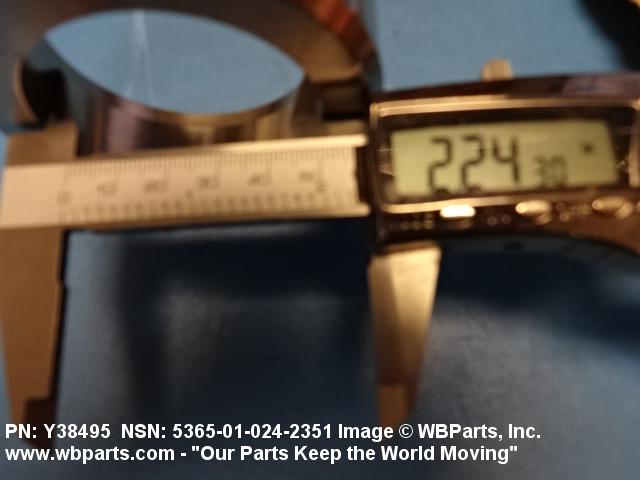

| RIGHT INTERNAL FLANGE HOLE DIAMETER | 2.2450 INCHES MINIMUM AND 2.2470 INCHES MAXIMUM |
