NSN 5365-01-032-0946 A11813.001.130, A11813001130, MILF1183
Product Details | RING SPACER
5365-01-032-0946 A circular-shaped item designed to maintain predetermined distance between assembled parts and/or for distributing pressure or preventing endwise movement between member parts. It has a solid cross-section and two flat parallel bearing surfaces. The distance between the bearing surfaces perpendicular to the axis of the centrally located hole shall not exceed 25 percent of the outside diameter. The diameter of the centrally located hole must exceed 75 percent of the outside diameter. Excludes laminated items. For items manufactured from impregnated graphite or lubricated nonmetallic materials, excluding felt or plastics, see GASKET. For items manufactured from lubricated plastics, see BEARING, WASHER, THRUST. For items manufactured from lubricated felt, see FELT, MECHANICAL, PREFORMED. Excludes DISK, VALVE; INSULATOR WASHER; and SHIM. See also SPACER, PLATE and SPACER, SLEEVE.
Part Alternates: A11813.001.130, A11813001130, MILF1183, MIL-F-1183, MILF118310TABLE2NPS14, T12452, 80343845361XXX31, 803-4384536-1XXX-31, 99-1103-5-D1-S1 PC24, 9911035D1S1PC24, 5365-01-032-0946, 01-032-0946, 5365010320946, 010320946
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1976 | 01-032-0946 | 24307 ( SPACER, RING ) |

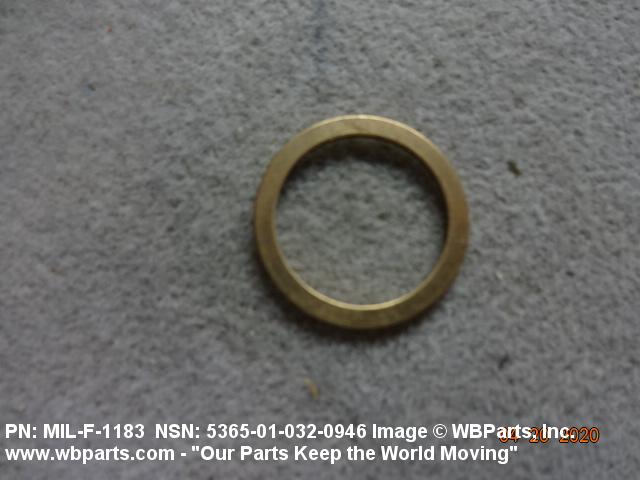

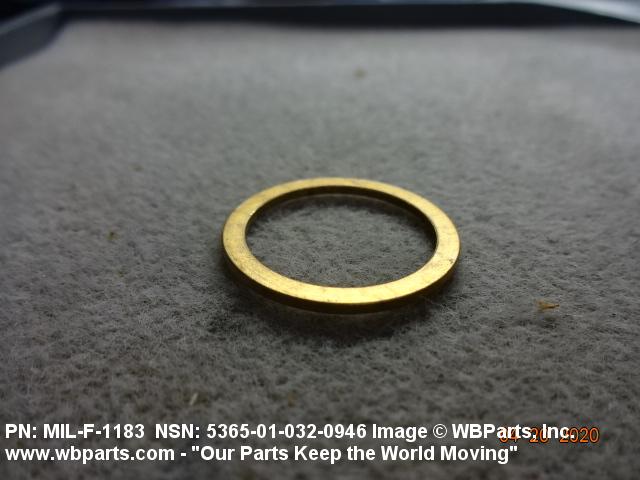

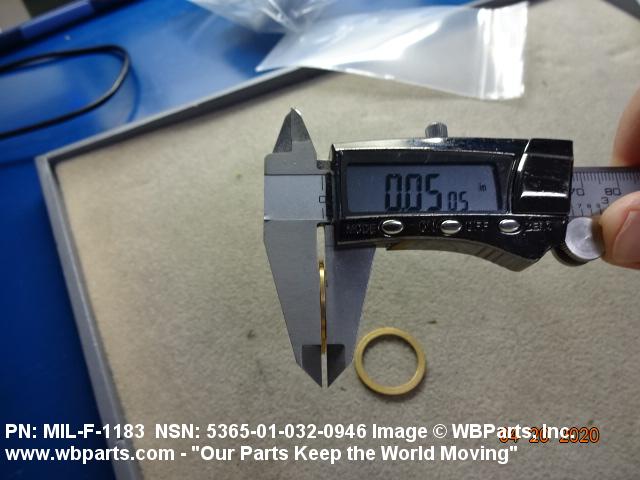

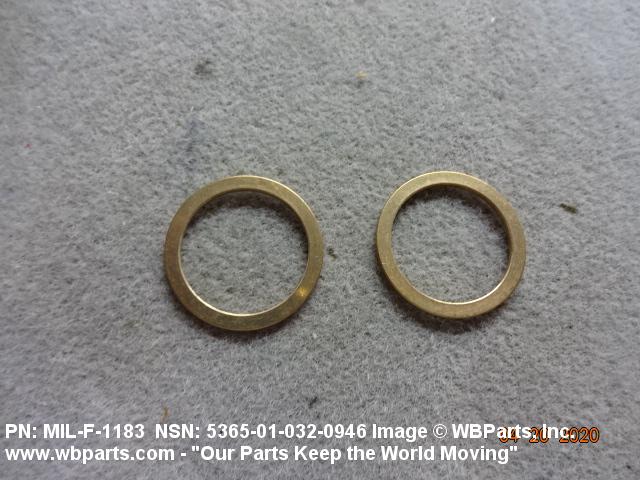

Drawings & Photos | NSN 5365-01-032-0946
Demand History | NSN 5365-01-032-0946
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-032-0946 | 2025-09-268 | 6 | United States |
| 5365-01-032-0946 | 2020-02-58 | 2 | United States |
| 5365-01-032-0946 | 2020-02-44 | 482 | DIBBS |
| 5365-01-032-0946 | 2019-03-77 | 1 | DIBBS-RFPs |
| MILF1183 | 2019-03-63 | 8 | US |
| 5365-01-032-0946 | 2017-08-236 | 10 | United States |
| MILF1183 | 2017-05-137 | 1 | United States |
| 5365-01-032-0946 | 2017-04-100 | 3746 | DIBBS |
| 5365-01-032-0946 | 2016-06-153 | 4008 | DIBBS |
| 5365-01-032-0946 | 2012-02-52 | 157 | DIBBS |
| 5365-01-032-0946 | 2012-02-32 | 3355 | DIBBS |
| MILF1183 | 2010-11-329 | 100 | FR |
| 5365-01-032-0946 | 2010-10-277 | 3178 | DIBBS |
| 5365-01-032-0946 | 2010-04-92 | 311 | DIBBS |
| 5365-01-032-0946 | 2010-03-82 | 793 | DIBBS |
| 5365-01-032-0946 | 2008-12-344 | 3000 | DIBBS |
Cross Reference | NSN 5365-01-032-0946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803-4384536-1XXX-31 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 99-1103-5-D1-S1 PC24 | 0X9M7 | TITUS COMPANY THE |
| A11813.001.130 | 15187 | PENTAIR VALVES & CONTROLS US LP DBA NAVY PRODUCT TEAM |
| MIL-F-1183 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-1183/10 TABLE 2, NPS 1/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| T12452 | 0X9M7 | TITUS COMPANY THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-032-0946
Technical Data | NSN 5365-01-032-0946
| Characteristic | Specifications |
|---|---|

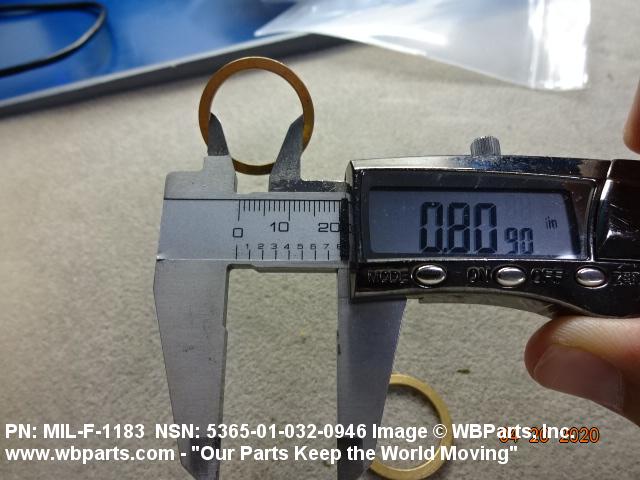

| INSIDE DIAMETER | 0.808 INCHES MINIMUM AND 0.818 INCHES MAXIMUM |

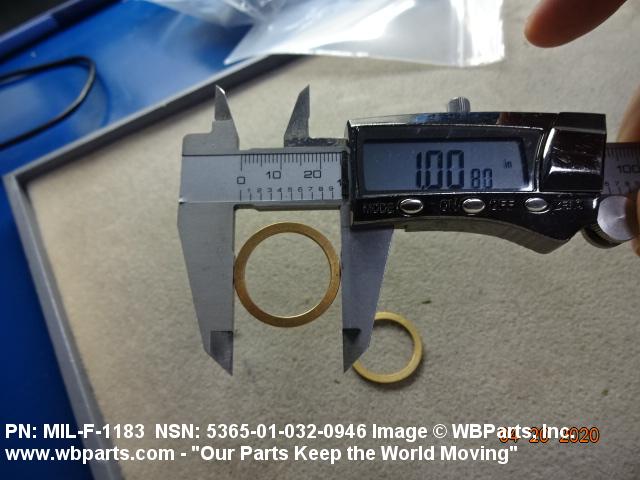

| OUTSIDE DIAMETER | 1.003 INCHES MINIMUM AND 1.013 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES LARGEST OUTSIDE DIAMETER 63.0 MICROINCHES LEFT SIDE 63.0 MICROINCHES RIGHT SIDE 32.0 MICROINCHES BORE |
| NONDEFINITIVE SPEC/STD DATA | 23 TABLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-1183 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-1183/10 TABLE 2, NPS 1/4 |
Restrictions/Controls & Freight Information | NSN 5365-01-032-0946
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-032-0946
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
