NSN 5365-01-124-0950 RL28SU5, 59021902, 5902190-2
Product Details | SERRATED LOCK RING
5365-01-124-0950 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: RL28SU5, 59021902, 5902190-2, 5365-01-124-0950, 01-124-0950, 5365011240950, 011240950
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 DEC 1981 | 01-124-0950 | 16013 ( RING, LOCK, SERRATED ) |

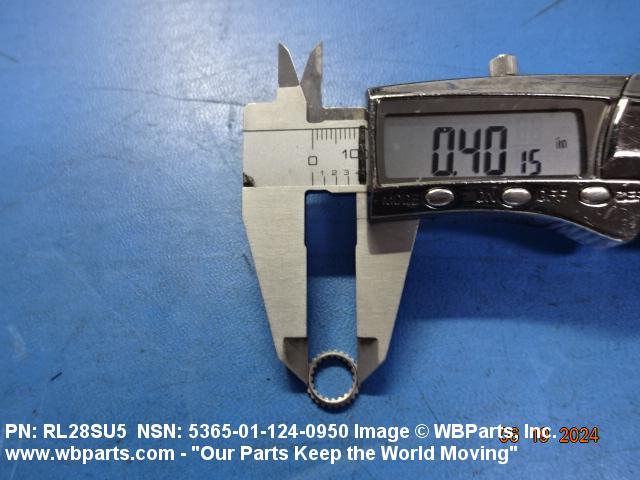

Drawings & Photos | NSN 5365-01-124-0950
Demand History | NSN 5365-01-124-0950
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-124-0950 | 2024-06-163 | 200 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-124-0950
Technical Data | NSN 5365-01-124-0950
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| OVERALL OUTSIDE DIAMETER | 0.399 INCHES NOMINAL |
| INSIDE DIAMETER | 0.323 INCHES NOMINAL |
| OVERALL HEIGHT | 0.081 INCHES NOMINAL |
| PILOT DIAMETER | 0.400 INCHES NOMINAL |
| OUTER SERRATION QUANTITY | 26 |
| INNER SERRATION QUANTITY | 20 |
| MANUFACTURERS CODE | 99167 |
| MFR SOURCE CONTROLLING REFERENCE | 5902190-2 |
Restrictions/Controls & Freight Information | NSN 5365-01-124-0950
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128000 | PUMPS PWR NOI/WORKING HEADS/PARTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-124-0950
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | TN | JET ENGINES(F404) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
