NSN 5365-01-141-1906 ST4M15310T2, ST4M153-10T2, 01-141-1906
Product Details | MACHINE THREAD BUSHING
5365-01-141-1906 A straight nonfluid fitting with wrenching facilities on one end and external threads, other than pipe or hose series, on the other end. It has an unthreaded through hole in its axis which may be countersunk and/or counterbored on one or both ends. It is designed to accommodate a shaft, or the like, or used to reinforce a hole in a bulkhead, or the like. For similar items specifically designed for use in a stuffing box, see PACKING NUT. For nonfluid items with an internal thread, see INSERT, SCREW THREAD; or ADAPTER BUSHING. Excludes REDUCER, BOSS; and items designed to accommodate a tube or tube fitting.
Part Alternates: ST4M15310T2, ST4M153-10T2, 5365-01-141-1906, 01-141-1906, 5365011411906, 011411906
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1982 | 01-141-1906 | 18019 ( BUSHING, MACHINE THREAD ) |

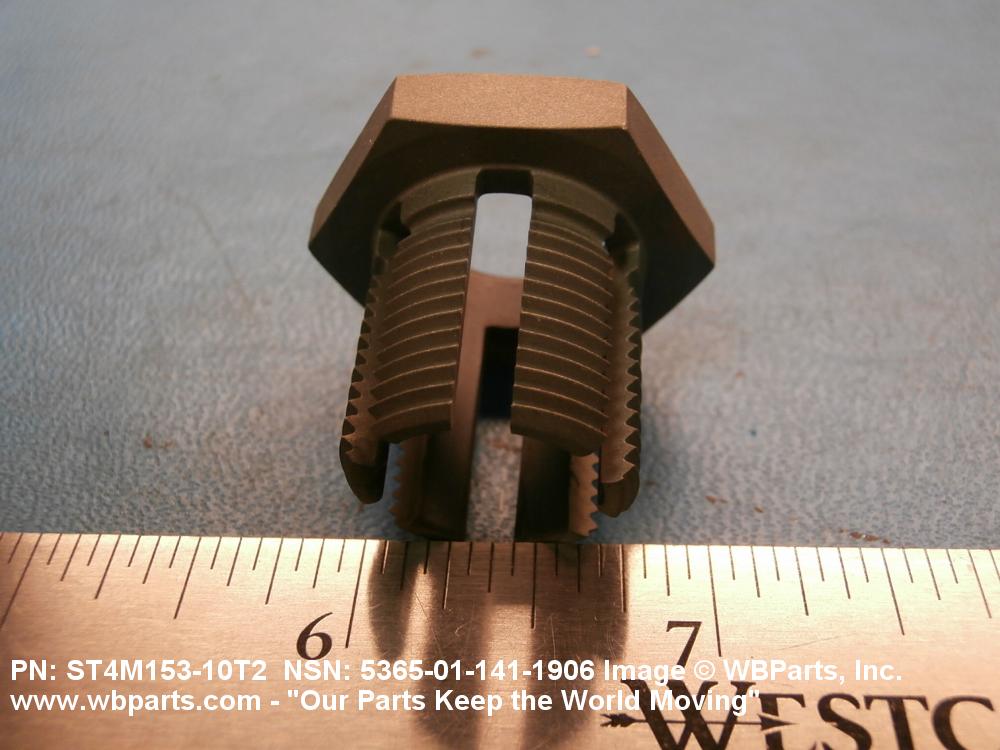

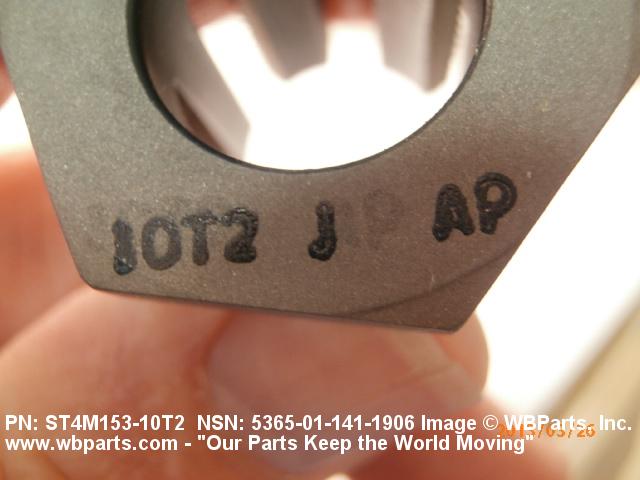

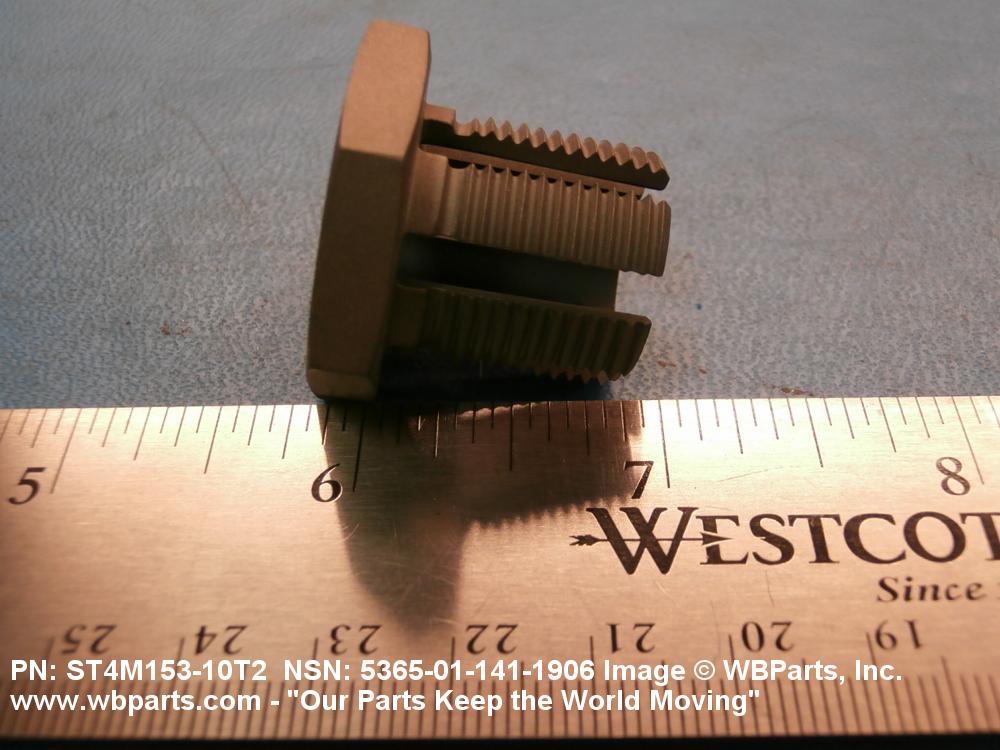

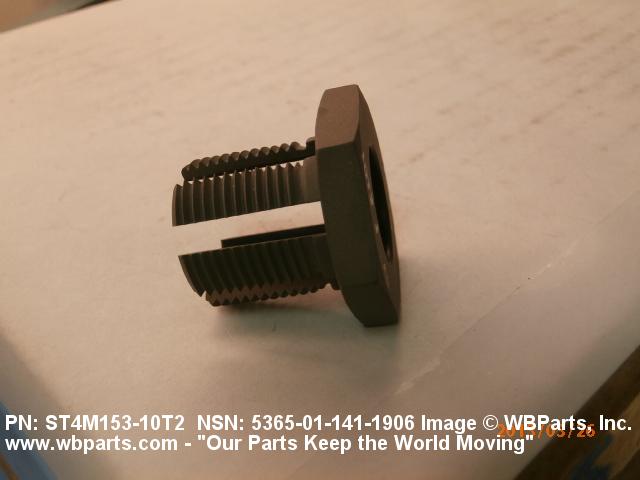

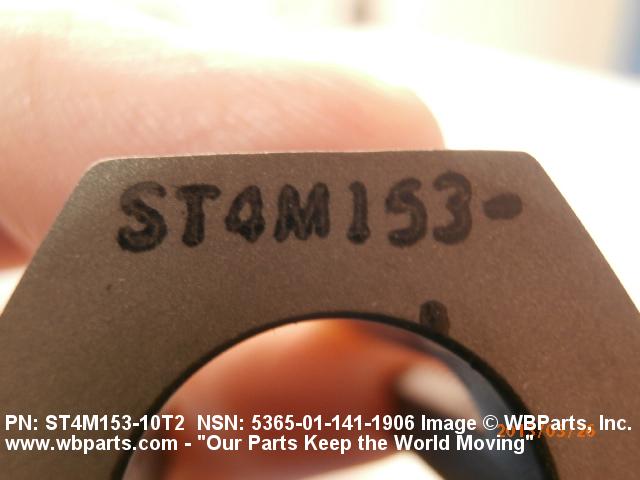

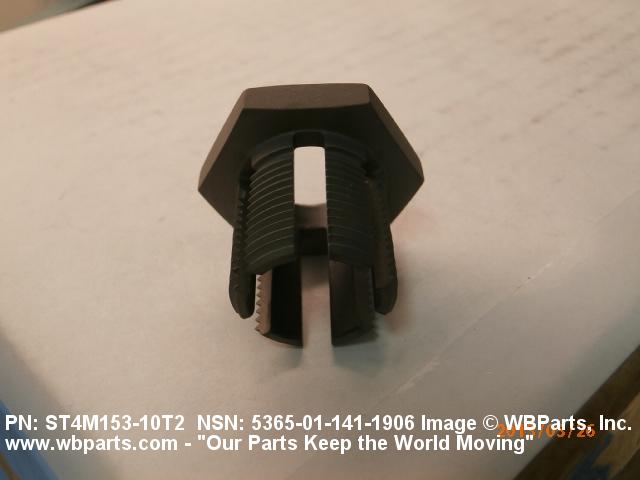

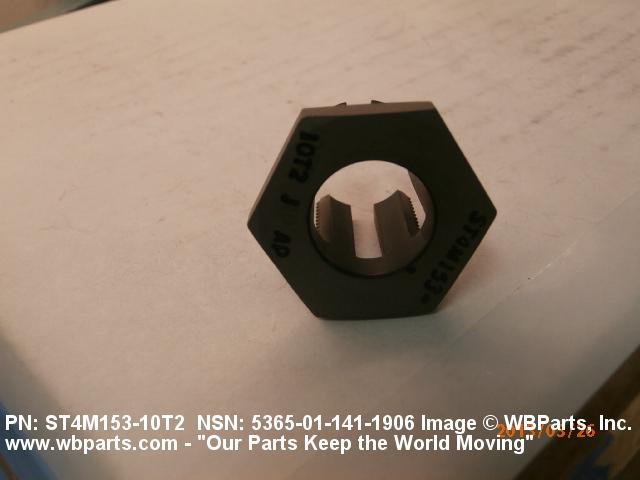

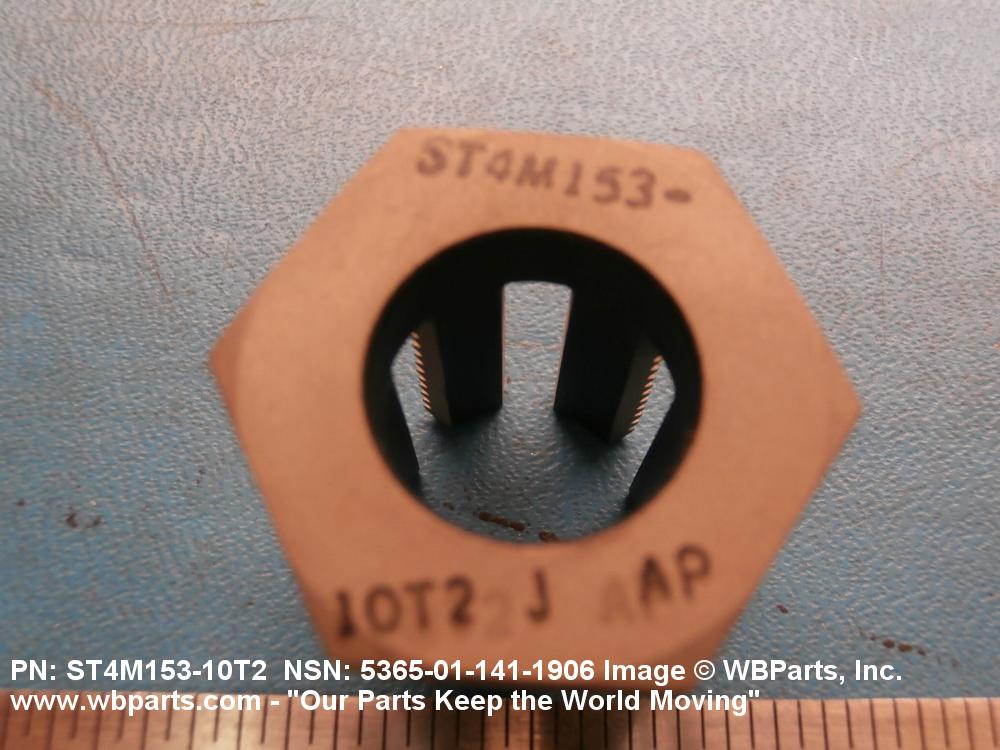

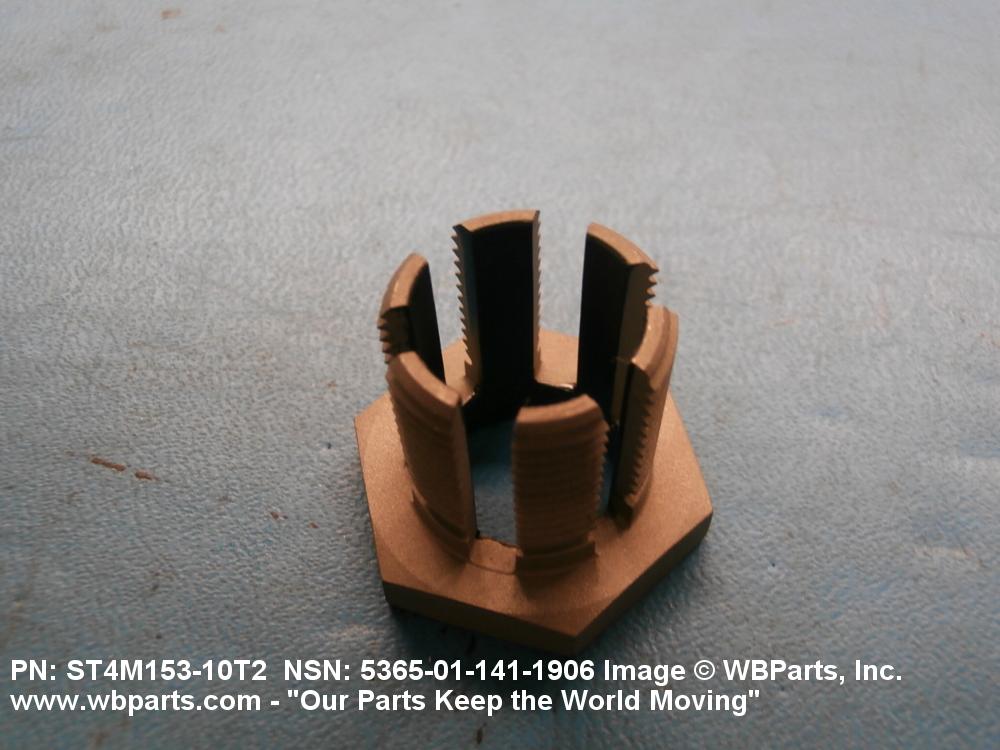

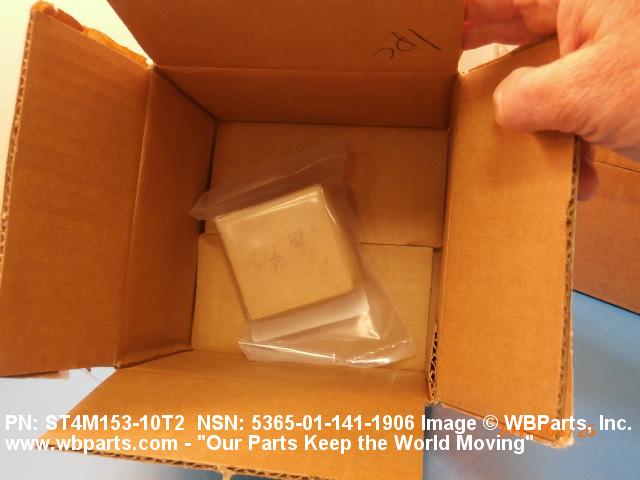

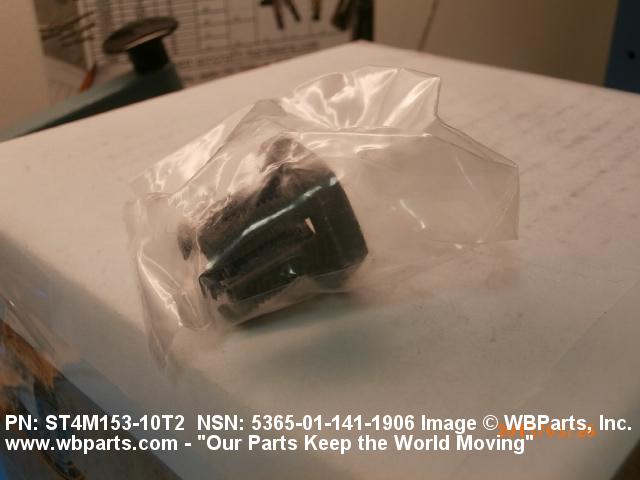

Drawings & Photos | NSN 5365-01-141-1906
Demand History | NSN 5365-01-141-1906
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-141-1906 | 2017-02-38 | 20 | DIBBS |
| 5365-01-141-1906 | 2017-02-37 | 17 | DIBBS |
| 5365-01-141-1906 | 2017-01-04 | 17 | DIBBS |
| 5365-01-141-1906 | 2016-12-356 | 10 | DIBBS |
| 5365-01-141-1906 | 2016-11-325 | 10 | DIBBS |
| 5365-01-141-1906 | 2016-11-307 | 4 | DIBBS |
| 5365-01-141-1906 | 2013-03-86 | 1 | us |
| 5365-01-141-1906 | 2013-03-73 | 4 | United States |
| 5365-01-141-1906 | 2011-02-34 | 14 | DIBBS |
| 5365-01-141-1906 | 2010-12-357 | 13 | DIBBS |
| 5365-01-141-1906 | 2010-10-294 | 1 | us |
| 5365-01-141-1906 | 2010-07-182 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-141-1906
Technical Data | NSN 5365-01-141-1906
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY,AMS 4967 |
| SURFACE TREATMENT | PLASTIC,TEFLON,954-103 BLACK,FSCM 31708 |

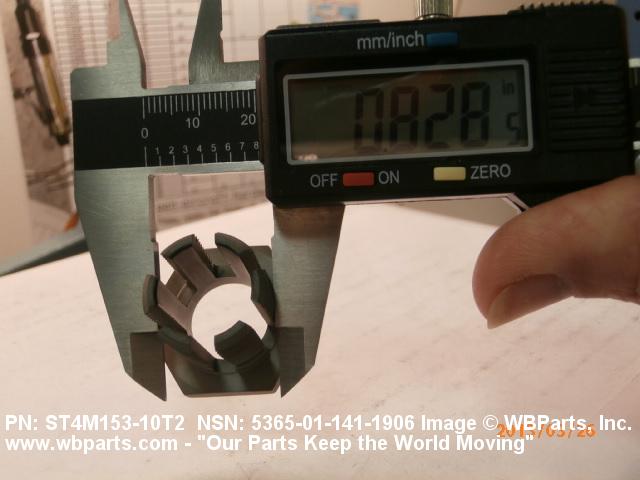

| THREAD SIZE | 0.8438-18 |
| SCREW THREAD SERIES DESIGNATOR | UNJS |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LENGTH | ANY ACCEPTABLE |

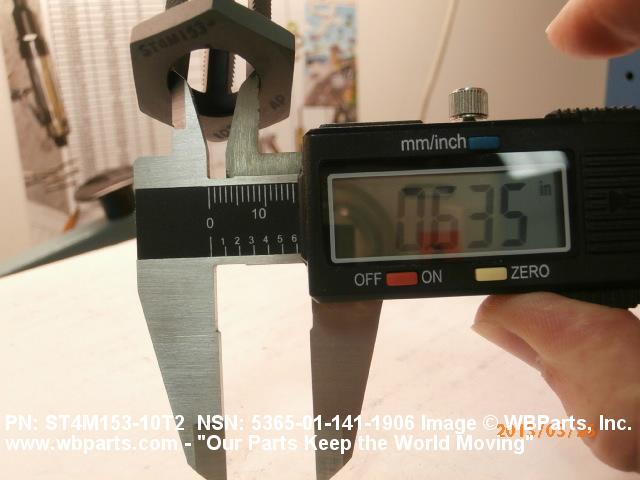

| HOLE INSIDE DIAMETER | 0.634 INCHES MINIMUM AND 0.637 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| COUNTERSUNK FEATURE | NOT INCLUDED |
| WRENCHING FACILITY SHAPE | HEXAGONAL |

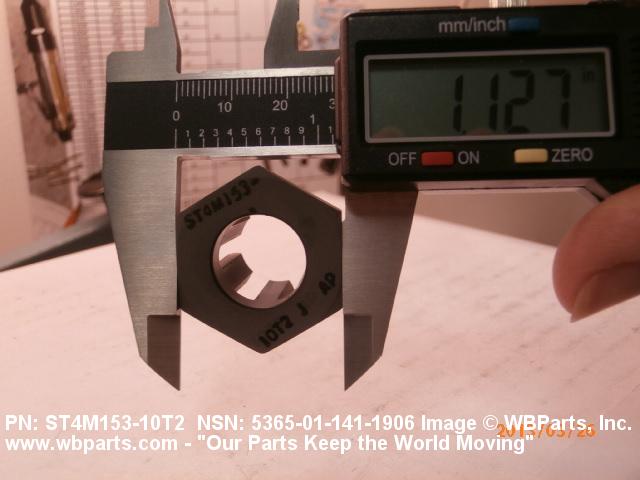

| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |

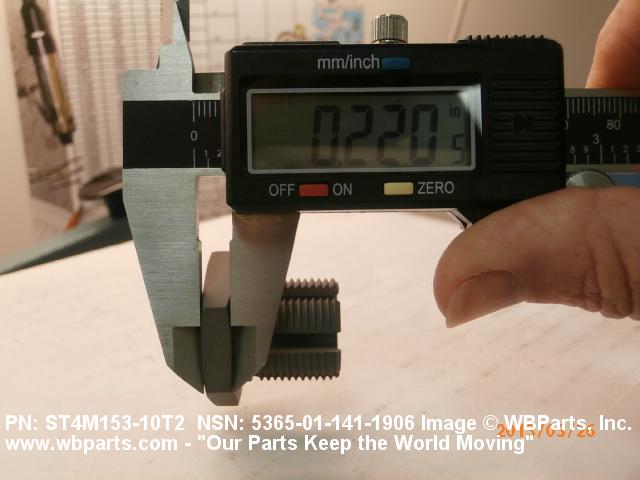

| THICKNESS | 0.218 INCHES NOMINAL |

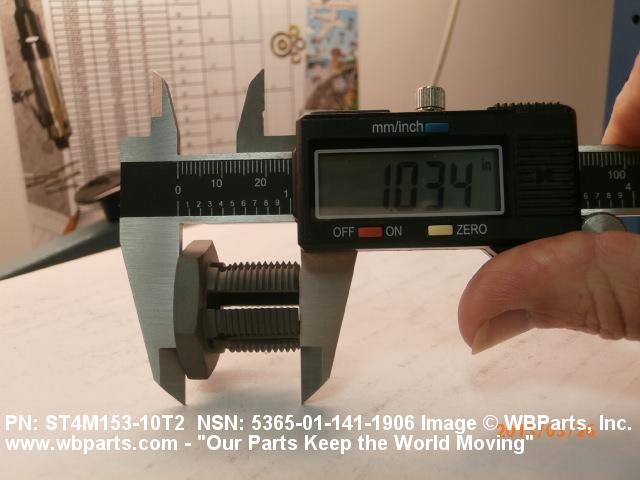

| OVERALL LENGTH | 1.032 INCHES NOMINAL |
| SPECIAL FEATURES | COAT ID ONLY 0.0010 TO 0.0015 THK |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | ST4M153-10T2 |
Restrictions/Controls & Freight Information | NSN 5365-01-141-1906
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-141-1906
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
