NSN 5365-01-146-7671 AS36C816L, AS-36-C816L, C643C816L
Product Details | SHIM

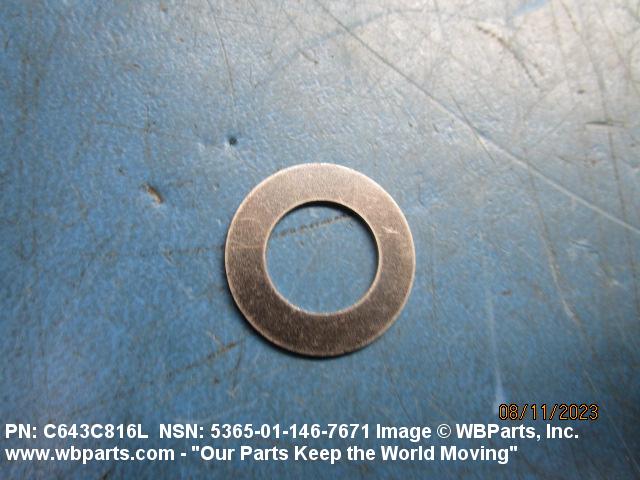

5365-01-146-7671 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: AS36C816L, AS-36-C816L, C643C816L, 5365-01-146-7671, 01-146-7671, 5365011467671, 011467671
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 FEB 1983 | 01-146-7671 | 20349 ( SHIM ) |
Drawings & Photos | NSN 5365-01-146-7671
Demand History | NSN 5365-01-146-7671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS-36-C816L | 2025-10-292 | 444 | DIBBS |
| AS-36-C816L | 2025-04-120 | 781 | DIBBS |
| AS-36-C816L | 2025-04-112 | 781 | DIBBS |
| AS-36-C816L | 2025-03-64 | 139 | DIBBS |
| AS-36-C816L | 2025-01-16 | 546 | DIBBS |
| AS-36-C816L | 2024-10-303 | 139 | DIBBS |
| AS-36-C816L | 2024-10-291 | 139 | DIBBS |
| AS-36-C816L | 2024-08-214 | 902 | DIBBS |
| AS-36-C816L | 2024-07-199 | 902 | DIBBS |
| AS-36-C816L | 2024-07-194 | 902 | DIBBS |
| AS-36-C816L | 2024-06-177 | 902 | DIBBS |
| AS-36-C816L | 2024-01-16 | 987 | DIBBS |
| AS-36-C816L | 2024-01-07 | 987 | DIBBS |
| AS-36-C816L | 2023-11-331 | 431 | DIBBS |
| AS-36-C816L | 2023-11-323 | 431 | DIBBS |
| 5365-01-146-7671 | 2023-08-220 | 289 | United States |
| AS-36-C816L | 2023-07-205 | 289 | DIBBS |
| AS-36-C816L | 2023-07-197 | 289 | DIBBS |
| AS-36-C816L | 2023-04-106 | 212 | DIBBS |
| AS-36-C816L | 2023-01-25 | 802 | DIBBS |
| AS-36-C816L | 2023-01-17 | 802 | DIBBS |
| AS-36-C816L | 2022-10-289 | 207 | DIBBS |
| AS-36-C816L | 2022-09-258 | 1231 | DIBBS |
| AS-36-C816L | 2022-08-243 | 1231 | DIBBS |
| AS-36-C816L | 2022-06-173 | 628 | DIBBS |
| AS-36-C816L | 2022-02-59 | 314 | DIBBS |
| AS-36-C816L | 2022-02-48 | 314 | DIBBS |
| AS-36-C816L | 2022-02-35 | 237 | DIBBS |
| AS-36-C816L | 2022-01-25 | 237 | DIBBS |
| AS-36-C816L | 2021-12-337 | 330 | DIBBS |
| AS-36-C816L | 2021-11-326 | 330 | DIBBS |
| AS-36-C816L | 2021-08-227 | 743 | DIBBS |
| AS-36-C816L | 2021-05-136 | 556 | DIBBS |
| AS-36-C816L | 2021-02-46 | 279 | DIBBS |
| AS-36-C816L | 2020-10-303 | 188 | DIBBS |
| AS-36-C816L | 2020-02-49 | 876 | DIBBS |
| AS-36-C816L | 2020-02-33 | 876 | DIBBS |
| AS-36-C816L | 2019-08-226 | 141 | DIBBS |
| AS-36-C816L | 2019-07-197 | 153 | DIBBS |
| AS-36-C816L | 2019-05-149 | 128 | DIBBS |
| AS-36-C816L | 2019-01-22 | 345 | DIBBS |
| AS-36-C816L | 2019-01-08 | 345 | DIBBS |
| 5365-01-146-7671 | 2018-08-219 | 675 | DIBBS |
| 5365-01-146-7671 | 2018-06-180 | 357 | DIBBS |
| 5365-01-146-7671 | 2018-06-169 | 357 | DIBBS |
| 5365-01-146-7671 | 2013-09-266 | 1739 | DIBBS |
| 5365-01-146-7671 | 2013-09-252 | 1 | DIBBS-RFPs |
| 5365-01-146-7671 | 2013-05-145 | 0 | DIBBS |
| 5365-01-146-7671 | 2011-04-102 | 343 | DIBBS |
| 5365-01-146-7671 | 2011-03-80 | 409 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-146-7671
Technical Data | NSN 5365-01-146-7671
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| CONSTRUCTION | LAMINATED |
| LAMINATION QUANTITY | 16 |

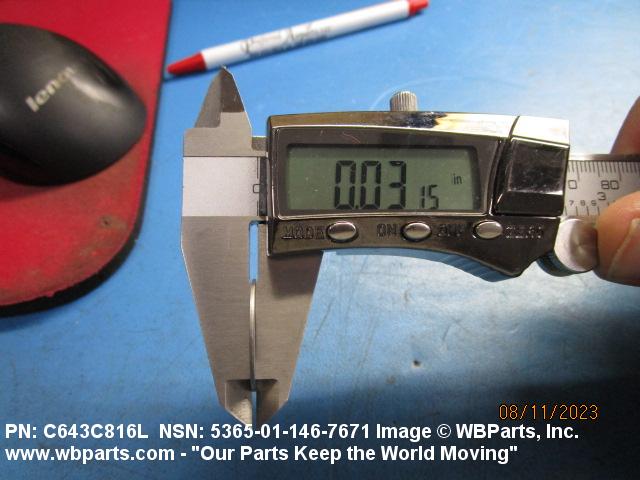

| LAMINATION THICKNESS | 0.002 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CIRCULAR |

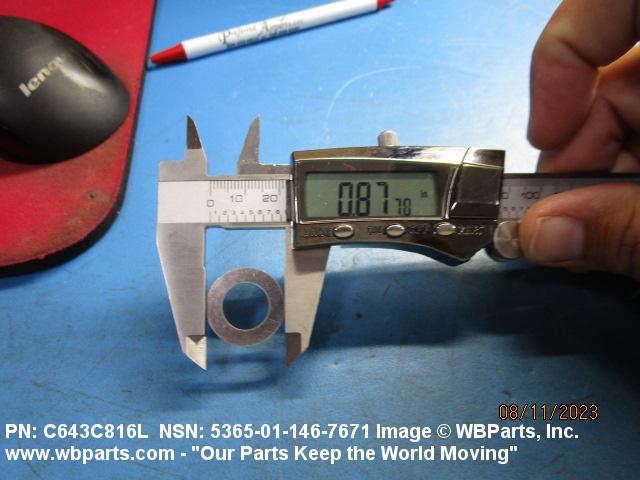

| OUTSIDE DIAMETER | 0.870 INCHES MINIMUM AND 0.895 INCHES MAXIMUM |

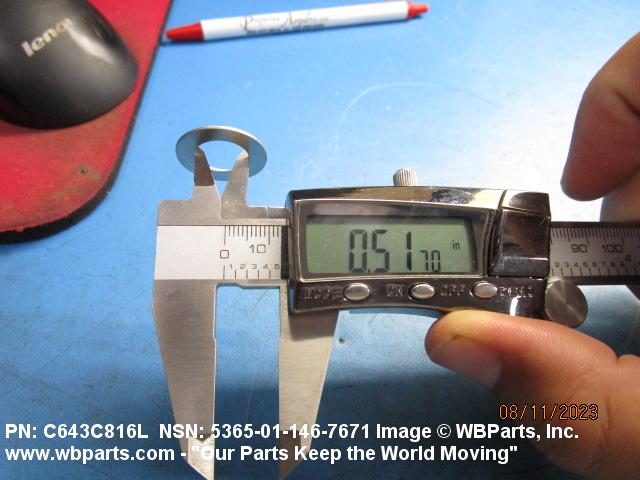

| APERTURE DIAMETER | 0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM |
