NSN 5365-01-157-1008 586R012H01, 01-157-1008, 011571008
Product Details | MACHINE THREAD BUSHING
5365-01-157-1008 A straight nonfluid fitting with wrenching facilities on one end and external threads, other than pipe or hose series, on the other end. It has an unthreaded through hole in its axis which may be countersunk and/or counterbored on one or both ends. It is designed to accommodate a shaft, or the like, or used to reinforce a hole in a bulkhead, or the like. For similar items specifically designed for use in a stuffing box, see PACKING NUT. For nonfluid items with an internal thread, see INSERT, SCREW THREAD; or ADAPTER BUSHING. Excludes REDUCER, BOSS; and items designed to accommodate a tube or tube fitting.
Part Alternates: 586R012H01, 5365-01-157-1008, 01-157-1008, 5365011571008, 011571008
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUN 1983 | 01-157-1008 | 18019 ( BUSHING, MACHINE THREAD ) |

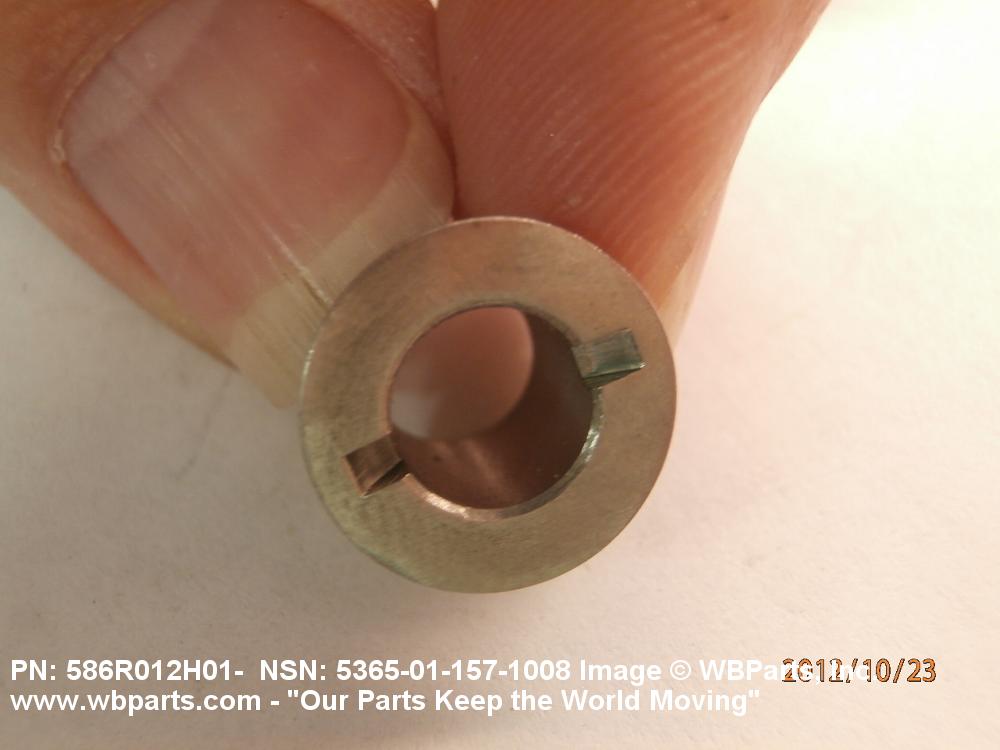

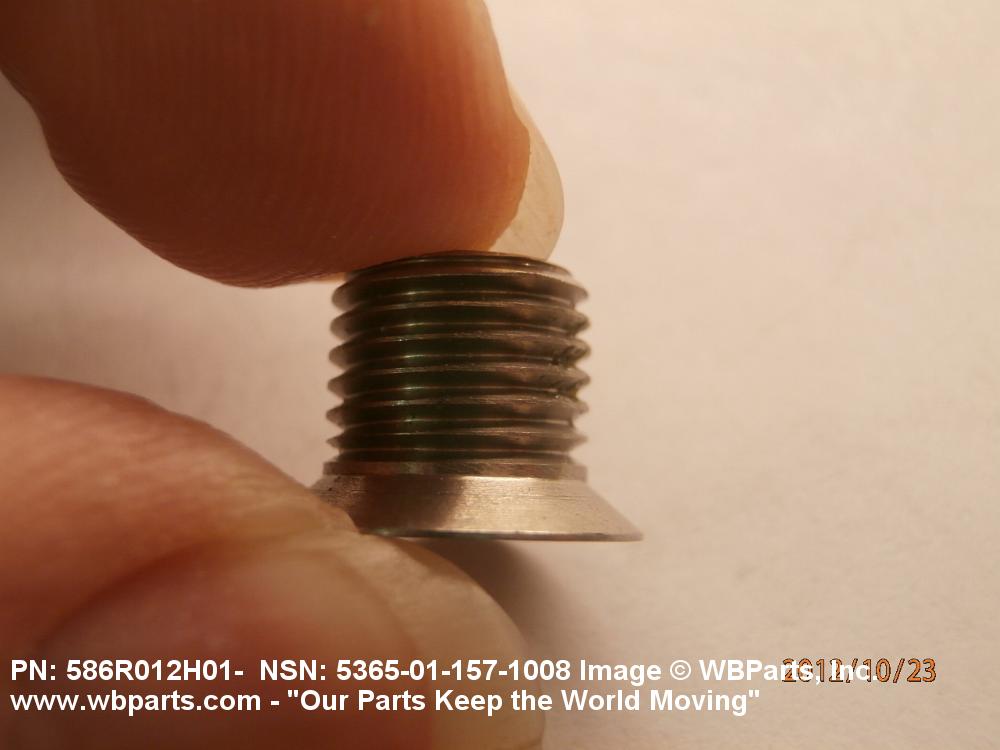

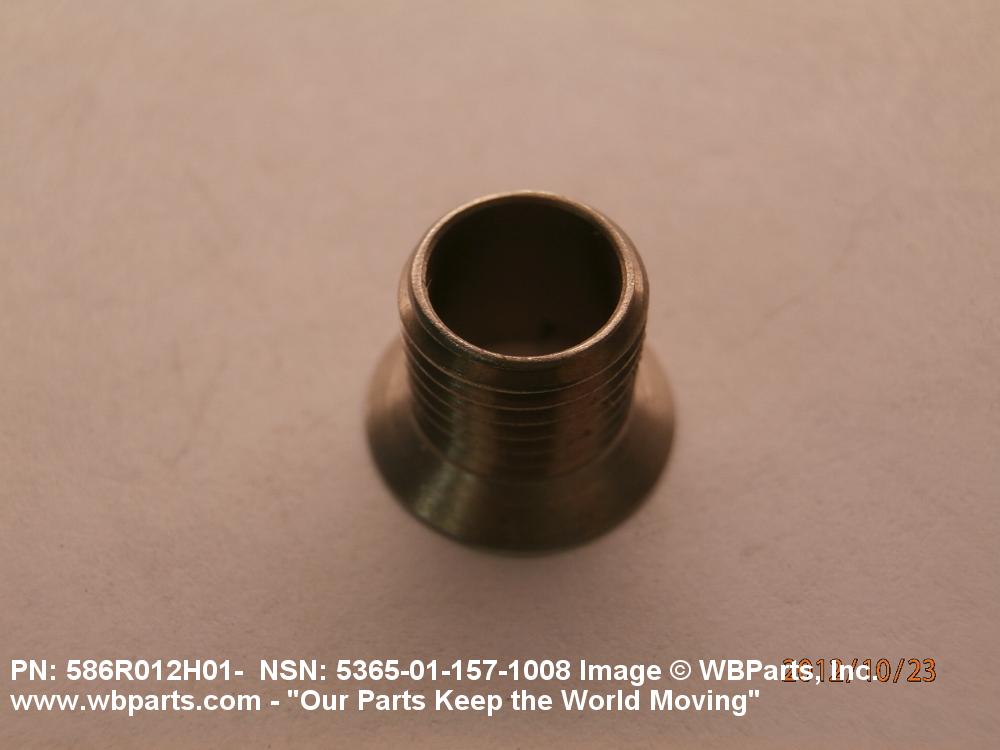

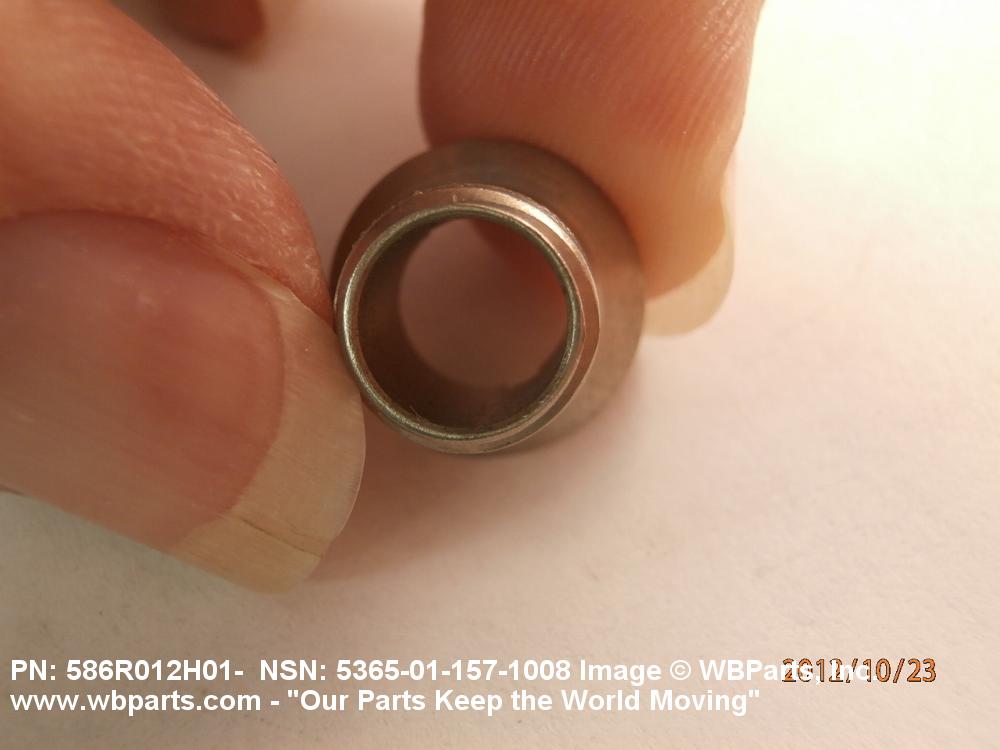

Drawings & Photos | NSN 5365-01-157-1008
Demand History | NSN 5365-01-157-1008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 586R012H01 | 2020-08-223 | 10 | United States |
Cross Reference | NSN 5365-01-157-1008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 586R012H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-157-1008
Technical Data | NSN 5365-01-157-1008
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5640 OR STEEL, QQ-S-763, CLASS 304 OR STEEL, QQ-S-763, CLASS 316, COND A OR STEEL, QQ-S-763, CLASS 347 OR STEEL,ASTM A582,COMP 303 OR 303MA OR 303PB OR 303 PLUS X OR 303SE OR STEEL,QQ-S-763,COMP 304L OR 305 OR 309 OR 310 OR 316L OR 317 OR 321 OR 322 OR 324 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| THREAD SIZE | 3/8-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LENGTH | 0.250 INCHES MINIMUM |
| HOLE INSIDE DIAMETER | 0.280 INCHES MINIMUM AND 0.285 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| COUNTERSUNK FEATURE | NOT INCLUDED |
| WRENCHING FACILITY SHAPE | SLOTTED |
| SLOT WIDTH | 0.062 INCHES NOMINAL |
| OVERALL LENGTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| SPECIAL FEATURES | LOCKING ELEMENT INCLUDED |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 586R012H01 |
Restrictions/Controls & Freight Information | NSN 5365-01-157-1008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-157-1008
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
