NSN 5365-01-177-3427 DRA163C, DRA-163-C, RL3128SB8
Product Details | SERRATED LOCK RING

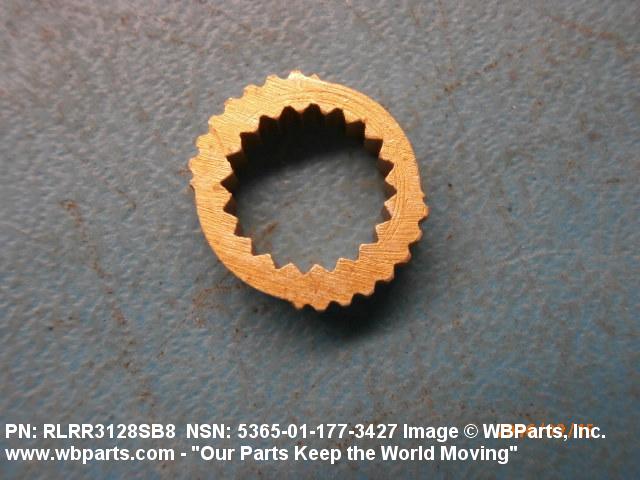

5365-01-177-3427 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: DRA163C, DRA-163-C, RL3128SB8, RL3128SB-8, RLRR3128SA8 , RLRR3128SB8, 5365-01-177-3427, 01-177-3427, 5365011773427, 011773427
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 APR 1984 | 01-177-3427 | 16013 ( RING, LOCK, SERRATED ) |
Drawings & Photos | NSN 5365-01-177-3427
Demand History | NSN 5365-01-177-3427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RLRR3128SA8 | 2025-01-22 | 2 | Japan |
| RL3128SB-8 | 2021-06-159 | 6 | DIBBS |
| RLRR3128SA8 | 2021-06-159 | 6 | DIBBS |
| RLRR3128SB8 | 2021-06-159 | 6 | DIBBS |
| RL3128SB-8 | 2021-04-112 | 8 | DIBBS |
| RLRR3128SA8 | 2021-04-112 | 8 | DIBBS |
| RLRR3128SB8 | 2021-04-112 | 8 | DIBBS |
| RL3128SB-8 | 2020-11-309 | 16 | DIBBS |
| RLRR3128SA8 | 2020-11-309 | 16 | DIBBS |
| RLRR3128SB8 | 2020-11-309 | 16 | DIBBS |
| RL3128SB-8 | 2020-10-304 | 6 | DIBBS |
| RLRR3128SA8 | 2020-10-304 | 6 | DIBBS |
| RLRR3128SB8 | 2020-10-304 | 6 | DIBBS |
| RL3128SB-8 | 2020-10-299 | 9 | DIBBS |
| RLRR3128SA8 | 2020-10-299 | 9 | DIBBS |
| RLRR3128SB8 | 2020-10-299 | 9 | DIBBS |
| RL3128SB-8 | 2020-10-281 | 6 | DIBBS |
| RLRR3128SA8 | 2020-10-281 | 6 | DIBBS |
| RLRR3128SB8 | 2020-10-281 | 6 | DIBBS |
| RL3128SB-8 | 2020-09-246 | 6 | DIBBS |
| RLRR3128SA8 | 2020-09-246 | 6 | DIBBS |
| RLRR3128SB8 | 2020-09-246 | 6 | DIBBS |
| RL3128SB-8 | 2020-08-238 | 6 | DIBBS |
| RLRR3128SA8 | 2020-08-238 | 6 | DIBBS |
| RLRR3128SB8 | 2020-08-238 | 6 | DIBBS |
| 5365-01-177-3427 | 2016-06-159 | 50 | United States |
| 5365-01-177-3427 | 2016-01-20 | 25 | United States |
| 5365-01-177-3427 | 2015-12-342 | 25 | United States |
Cross Reference | NSN 5365-01-177-3427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DRA-163-C | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RL3128SB-8 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RLRR3128SA8 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RLRR3128SB8 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-177-3427
Technical Data | NSN 5365-01-177-3427
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1117 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |

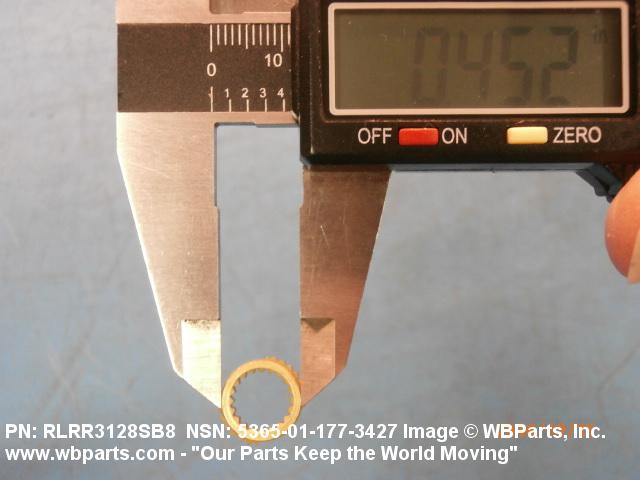

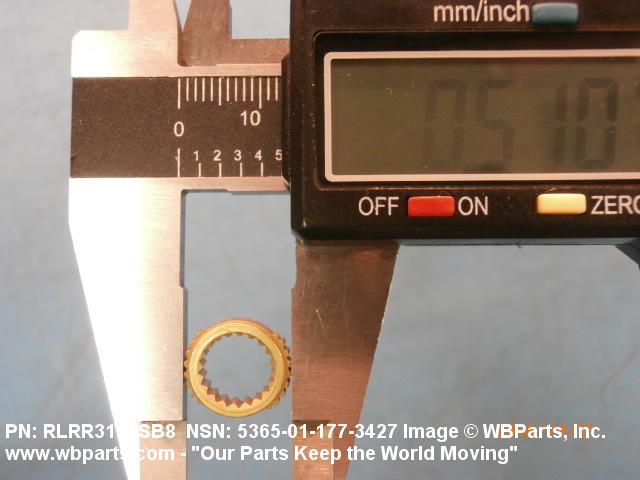

| OVERALL OUTSIDE DIAMETER | 0.509 INCHES MINIMUM AND 0.519 INCHES MAXIMUM |

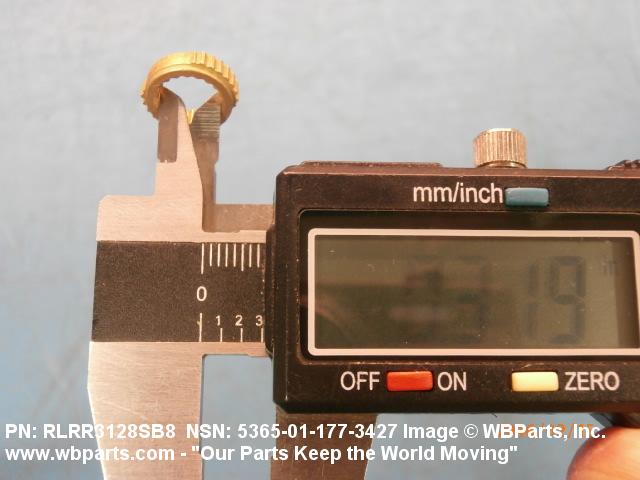

| INSIDE DIAMETER | 0.318 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |

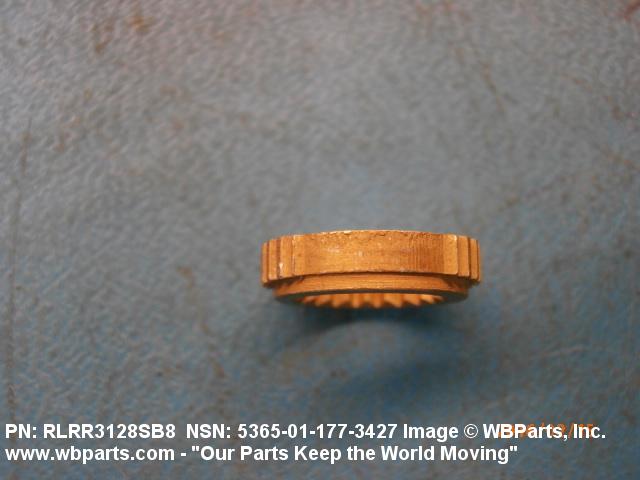

| OVERALL HEIGHT | 0.133 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
