NSN 5365-01-179-1840 DRA163C, DRA-163-C, RL3833SB9
Product Details | SERRATED LOCK RING
5365-01-179-1840 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: DRA163C, DRA-163-C, RL3833SB9, RLRR3833SA9, RLRR3833SB9, 5365-01-179-1840, 01-179-1840, 5365011791840, 011791840
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAY 1984 | 01-179-1840 | 16013 ( RING, LOCK, SERRATED ) |

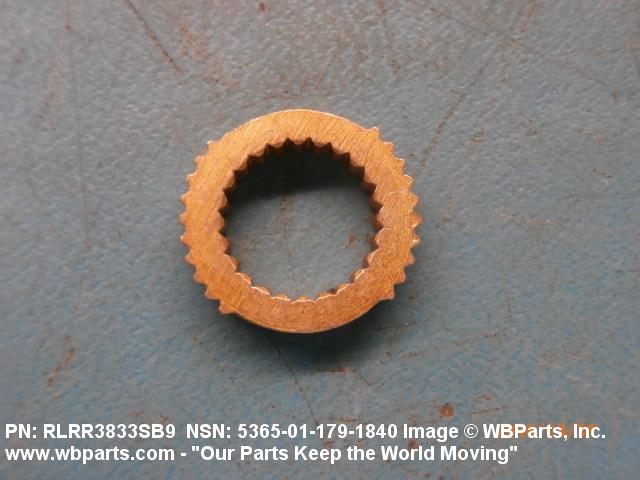

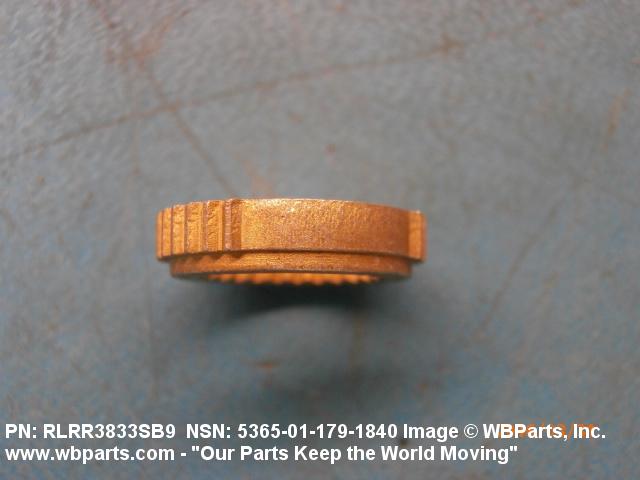

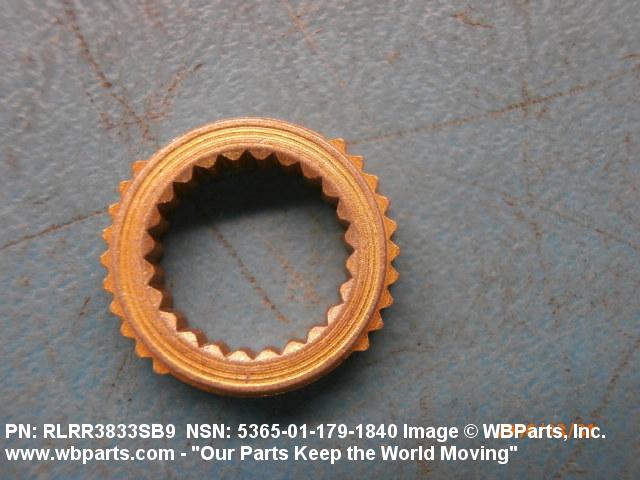

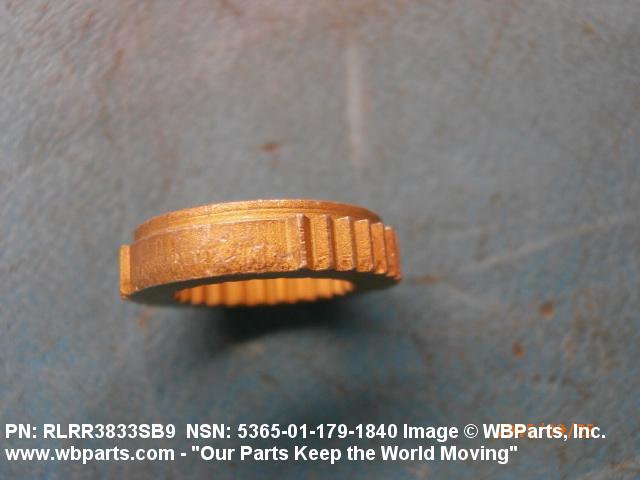

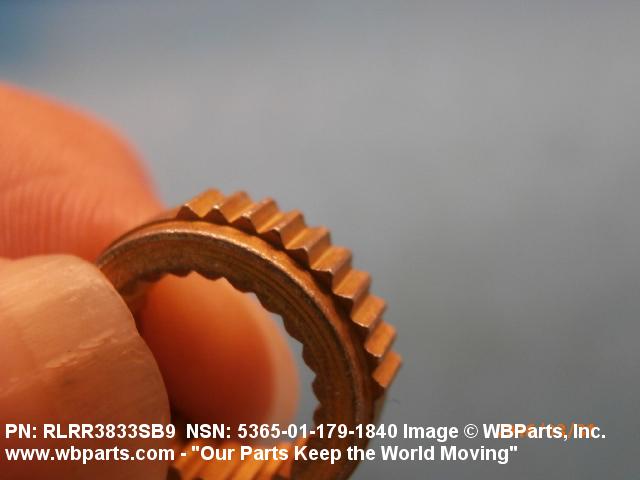

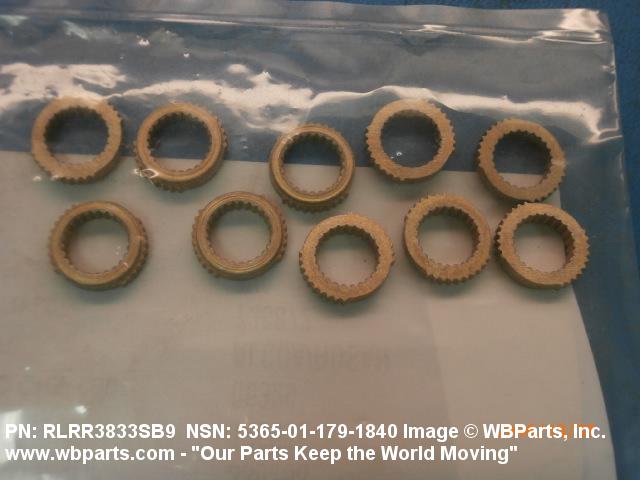

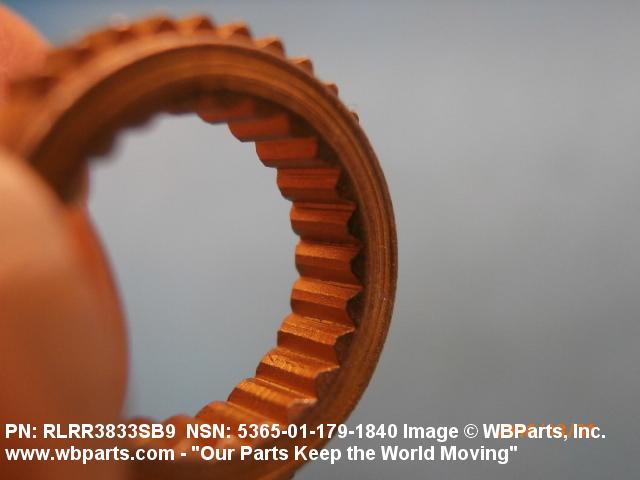

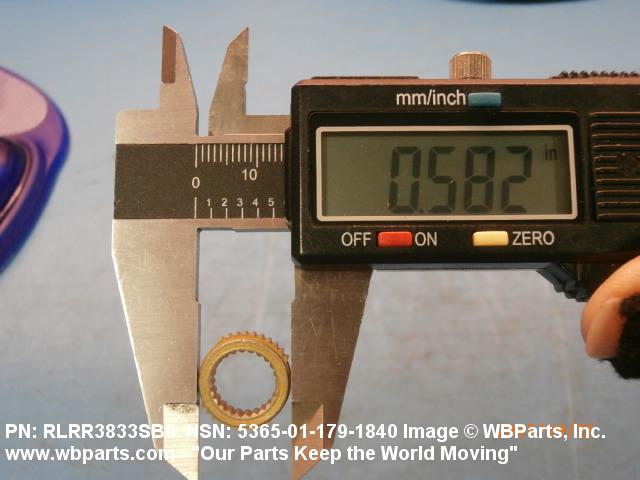

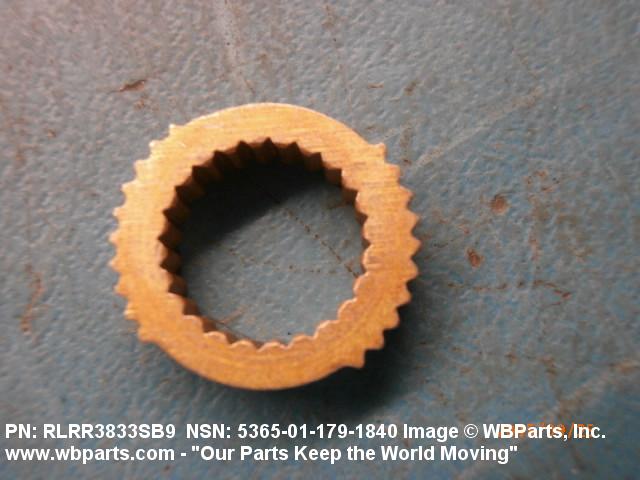

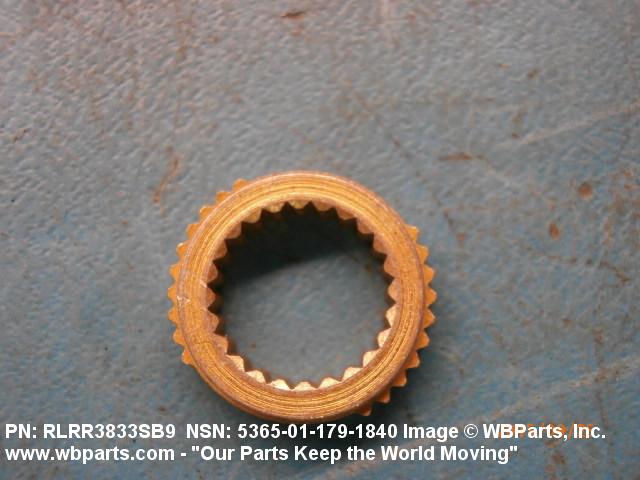

Drawings & Photos | NSN 5365-01-179-1840
Demand History | NSN 5365-01-179-1840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-179-1840 | 2025-04-105 | 1 | United States |
| RL3833SB9 | 2023-12-353 | 17 | DIBBS |
| RLRR3833SA9 | 2023-12-353 | 17 | DIBBS |
| RLRR3833SB9 | 2023-12-353 | 17 | DIBBS |
| RL3833SB9 | 2023-10-291 | 43 | DIBBS |
| RLRR3833SA9 | 2023-10-291 | 43 | DIBBS |
| RLRR3833SB9 | 2023-10-291 | 43 | DIBBS |
| RLRR3833SB9 | 2016-03-74 | 10 | United States |
| RLRR3833SB9 | 2015-09-257 | 40 | United States |
| 5365-01-179-1840 | 2014-04-119 | 1 | DIBBS |
| 5365-01-179-1840 | 2012-03-69 | 12 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-179-1840
Technical Data | NSN 5365-01-179-1840
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1117 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 1, CLASS 2 |

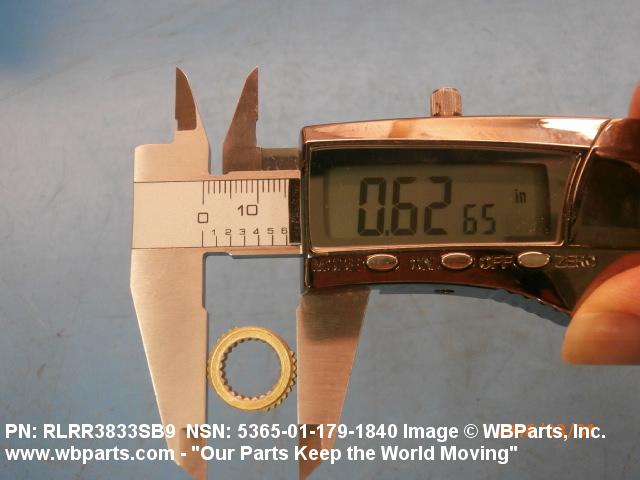

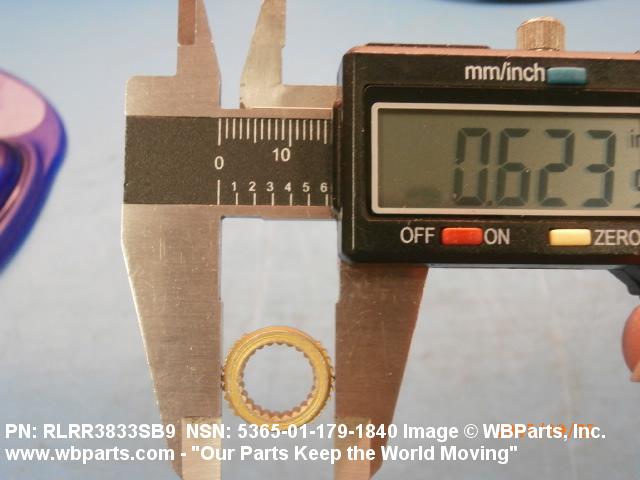

| OVERALL OUTSIDE DIAMETER | 0.621 INCHES MINIMUM AND 0.629 INCHES MAXIMUM |

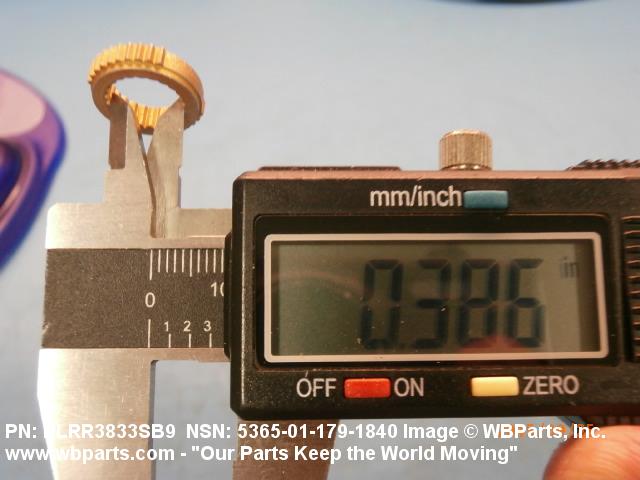

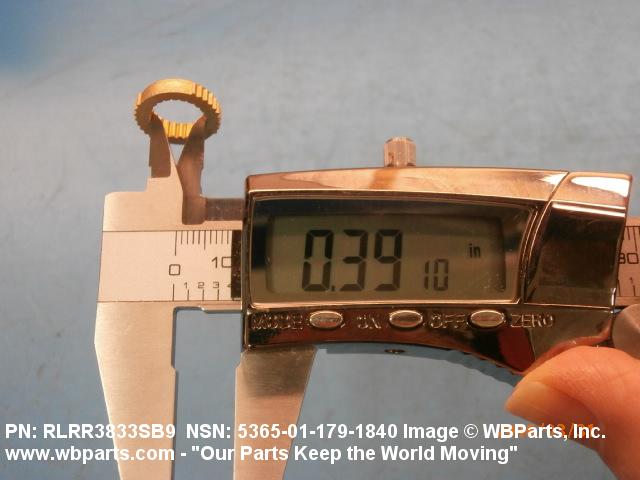

| INSIDE DIAMETER | 0.385 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |

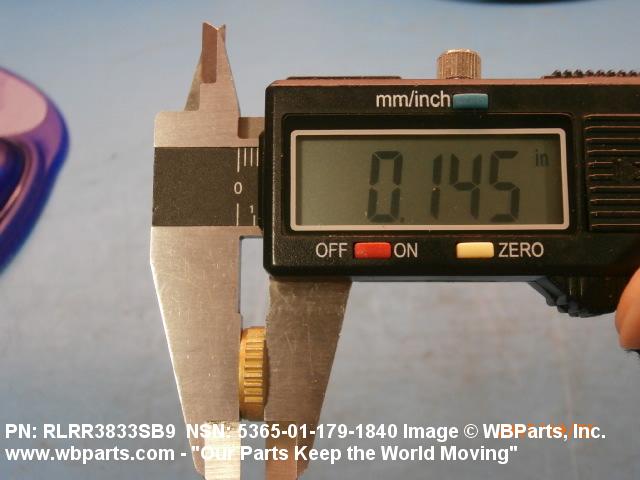

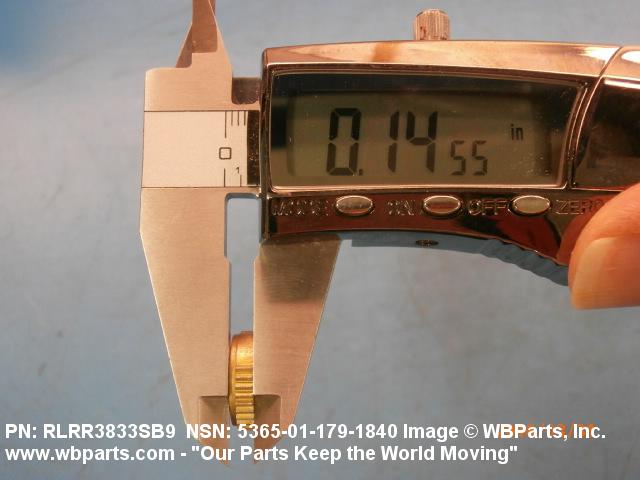

| OVERALL HEIGHT | 0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |

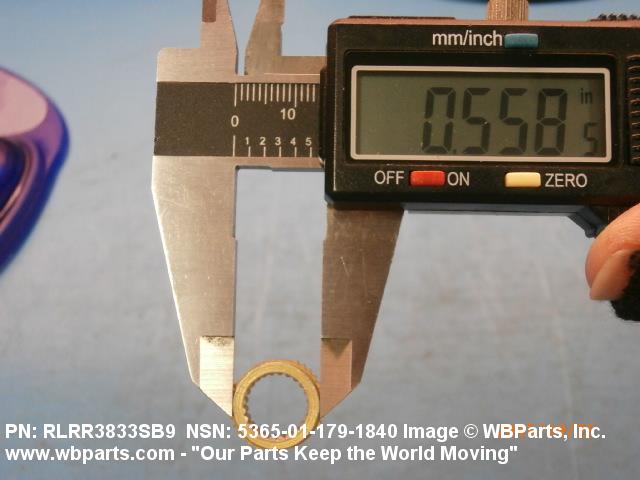

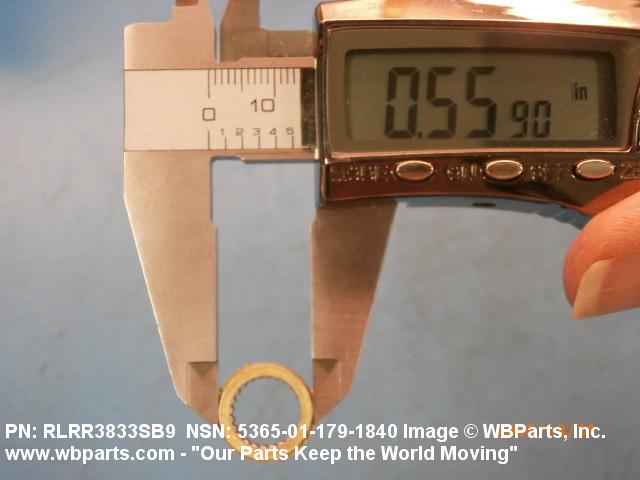

| PILOT DIAMETER | 0.555 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| OUTER SERRATION QUANTITY | 36 |
| INNER SERRATION QUANTITY | 24 |
| SPECIAL FEATURES | MATL STEEL UNS G11170 ASTM A108 AND CASEHARDENED 36.0/45.0 ROCKWELL C |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | RLRR3833SB9 |
Restrictions/Controls & Freight Information | NSN 5365-01-179-1840
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
