Product Details | MACHINE THREAD PLUG

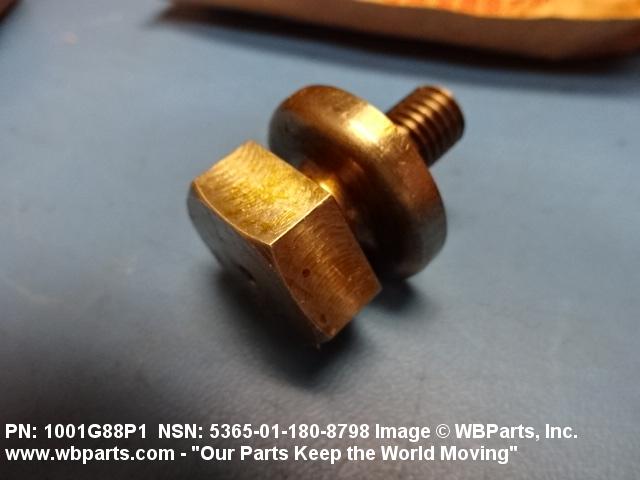

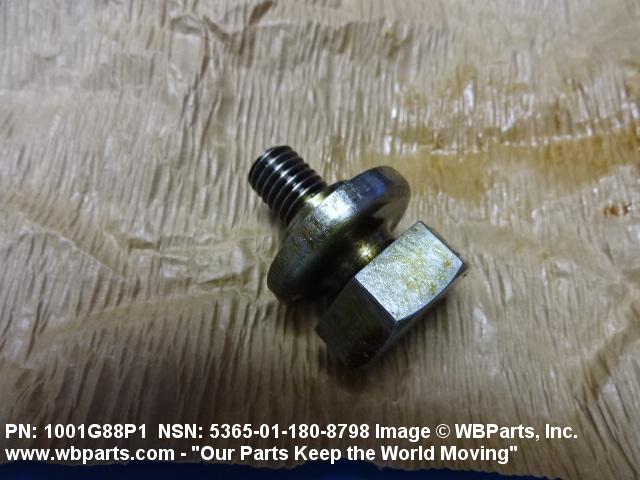

5365-01-180-8798 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 1001G88P1, 5365-01-180-8798, 01-180-8798, 5365011808798, 011808798
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1984 | 01-180-8798 | 03801 ( PLUG, MACHINE THREAD ) |

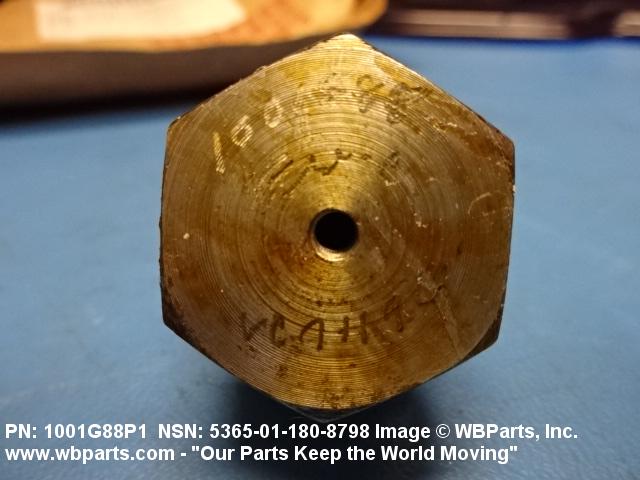

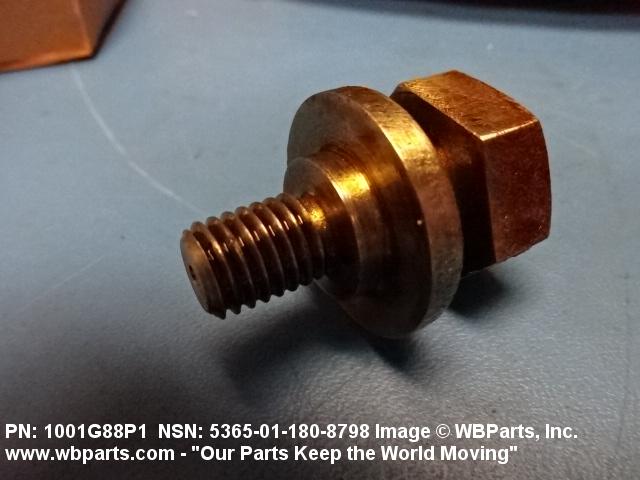

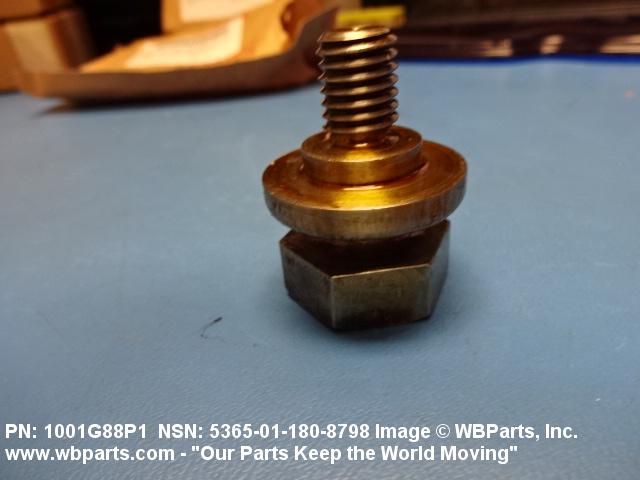

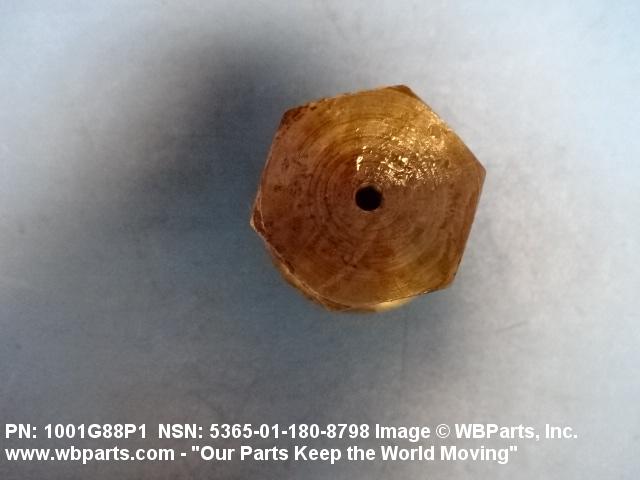

Drawings & Photos | NSN 5365-01-180-8798
Demand History | NSN 5365-01-180-8798
Cross Reference | NSN 5365-01-180-8798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1001G88P1 | 01289 | GENERAL ELECTRIC COMPANY DBA GE DIV GE-AVIATION GEAR PLANT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5365-01-180-8798
5365-01-180-8799, 5365-01-180-8843, 5365-01-180-8852, 5365-01-180-8853, 5365-01-180-8856
Technical Data | NSN 5365-01-180-8798
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A108 ASSN STD SINGLE MATERIAL RESPONSE OR B4A2A,FSCM 01289 MFR REF SINGLE MATERIAL RESPONSE OVERALL |

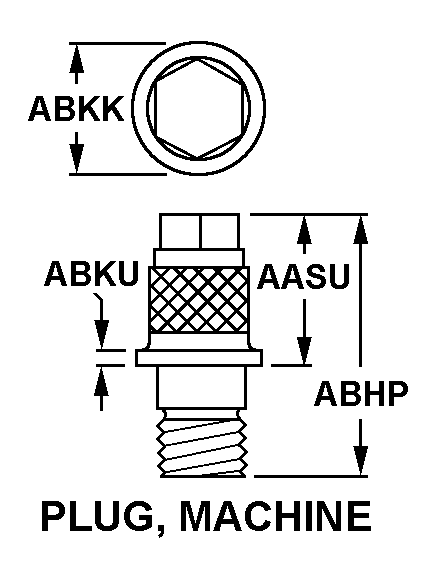

| STYLE DESIGNATOR | C45 PLUG, MACHINE |

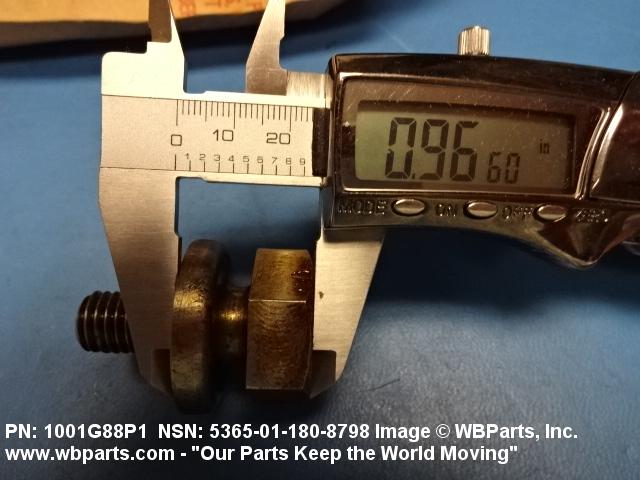

| HEAD HEIGHT | 0.960 INCHES NOMINAL |

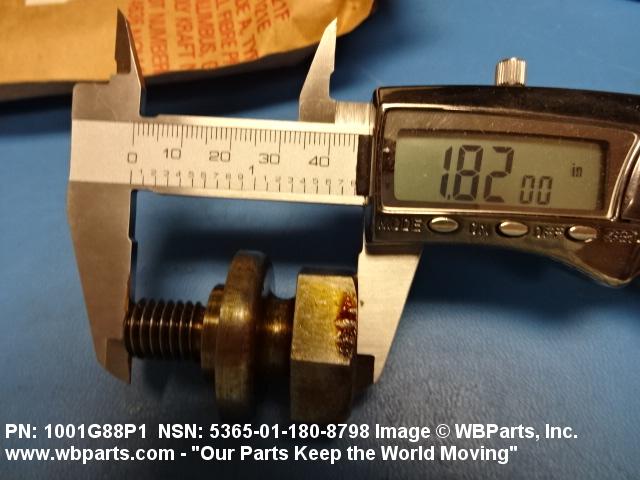

| OVERALL LENGTH | 1.820 INCHES NOMINAL |

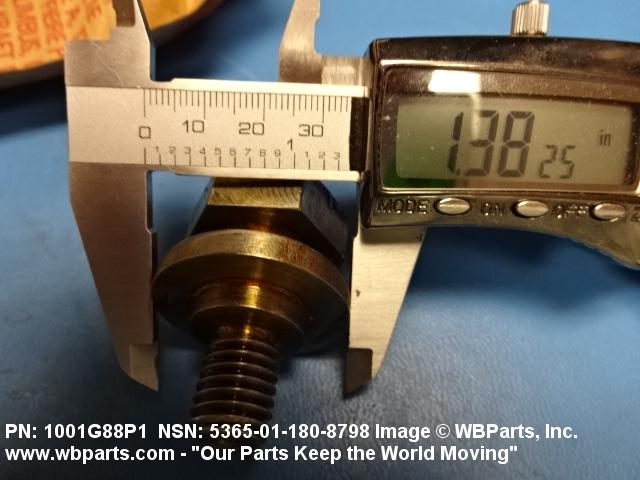

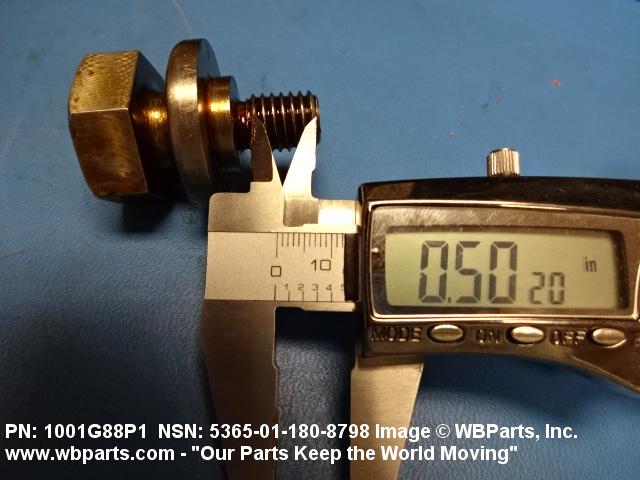

| FLANGE DIAMETER | 1.380 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNC EXTERNAL UNC HEAD, INTERNAL |
| NOMINAL THREAD SIZE | 0.500 INCHES EXTERNAL 0.164 INCHES HEAD, INTERNAL |
| THREAD CLASS | 2A EXTERNAL 2B HEAD, INTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL RIGHT-HAND HEAD, INTERNAL |

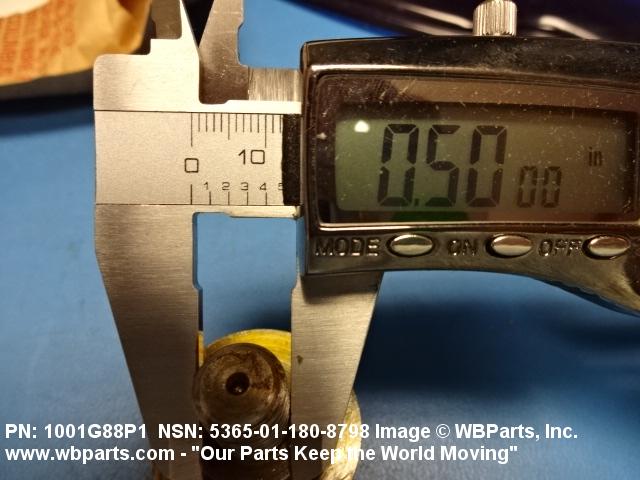

| THREAD LENGTH | 0.500 INCHES NOMINAL EXTERNAL |

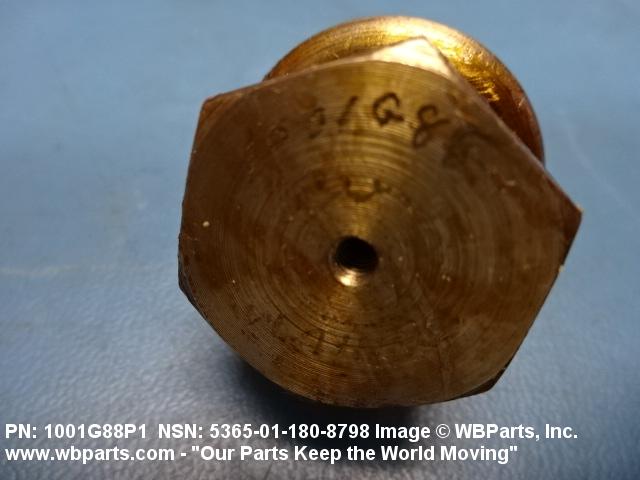

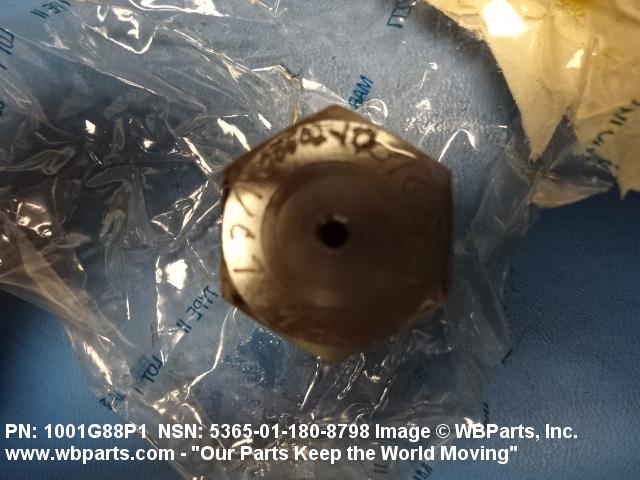

| HEAD TYPE | INTERNALLY THREADED |
| BODY TYPE | SOLID |
