NSN 5365-01-236-2114 12295116, 12328824, 01-236-2114
Product Details | MACHINE THREAD BUSHING
5365-01-236-2114 A straight nonfluid fitting with wrenching facilities on one end and external threads, other than pipe or hose series, on the other end. It has an unthreaded through hole in its axis which may be countersunk and/or counterbored on one or both ends. It is designed to accommodate a shaft, or the like, or used to reinforce a hole in a bulkhead, or the like. For similar items specifically designed for use in a stuffing box, see PACKING NUT. For nonfluid items with an internal thread, see INSERT, SCREW THREAD; or ADAPTER BUSHING. Excludes REDUCER, BOSS; and items designed to accommodate a tube or tube fitting.
Part Alternates: 12295116, 12328824, 5365-01-236-2114, 01-236-2114, 5365012362114, 012362114
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUL 1986 | 01-236-2114 | 18019 ( BUSHING, MACHINE THREAD ) |

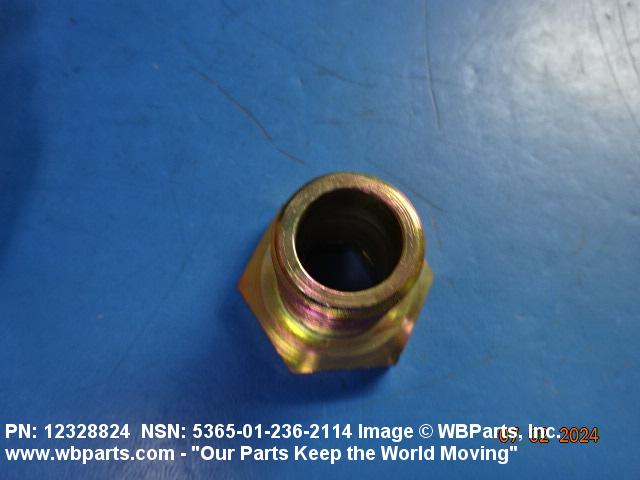

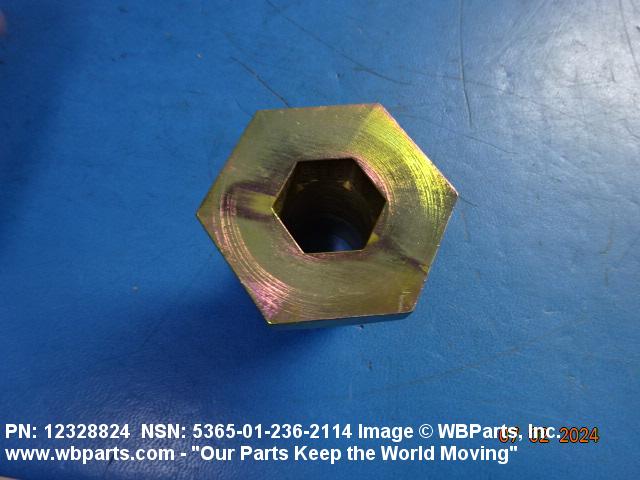

Drawings & Photos | NSN 5365-01-236-2114
Demand History | NSN 5365-01-236-2114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-236-2114 | 2025-01-22 | 293 | DIBBS |
| 5365-01-236-2114 | 2025-01-14 | 293 | DIBBS |
| 5365-01-236-2114 | 2024-06-179 | 10 | us |
| 5365-01-236-2114 | 2024-06-176 | 10 | us |
| 5365-01-236-2114 | 2023-12-346 | 269 | DIBBS |
| 5365-01-236-2114 | 2023-10-276 | 298 | DIBBS |
| 5365-01-236-2114 | 2009-04-106 | 1341 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-236-2114
Technical Data | NSN 5365-01-236-2114
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, ASTM A576, GRADE 1010 OR STEEL, ASTM A576, GRADE 1012 OR STEEL, ASTM A576, GRADE 1015 OR STEEL, ASTM A576, GRADE 1016 OR STEEL, ASTM A576, GRADE 1017 OR STEEL, ASTM A576, GRADE 1018 OR STEEL, ASTM A576, GRADE 1019 OR STEEL, ASTM A576, GRADE 1020 OR STEEL, ASTM A576, GRADE 1021 OR STEEL, ASTM A576, GRADE 1022 OR STEEL, ASTM A576, GRADE 1023 OR STEEL, ASTM A576, GRADE 1025 OR STEEL, ASTM A108, GRADE 1117 OR STEEL, ASTM A108, GRADE 1118 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| THREAD SIZE | 1.250-7 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LENGTH | 1.000 INCHES MINIMUM |
| HOLE INSIDE DIAMETER | 0.718 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| COUNTERSUNK FEATURE | INCLUDED |
| COUNTERSINK LOCATION | WRENCHING END |
| COUNTERSINK DEPTH | 0.077 INCHES NOMINAL |
| COUNTERSINK ANGLE IN DEG | 45.0 |
| WRENCHING FACILITY SHAPE | HEXAGONAL |
| WIDTH ACROSS FLATS | 1.859 INCHES MINIMUM AND 1.906 INCHES MAXIMUM |
| THICKNESS | 0.440 INCHES NOMINAL |
| OVERALL LENGTH | 1.790 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5365-01-236-2114
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-236-2114
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
