NSN 5365-01-277-5122 J1082P105, RL24SU5, 01-277-5122
Product Details | SERRATED LOCK RING
5365-01-277-5122 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: J1082P105, RL24SU5, 5365-01-277-5122, 01-277-5122, 5365012775122, 012775122
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 APR 1988 | 01-277-5122 | 16013 ( RING, LOCK, SERRATED ) |

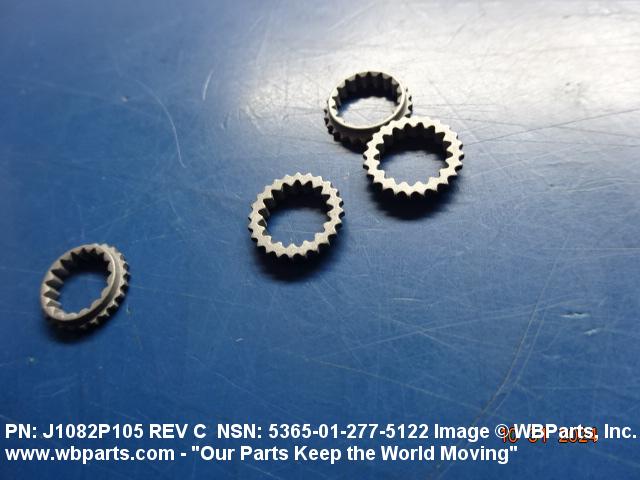

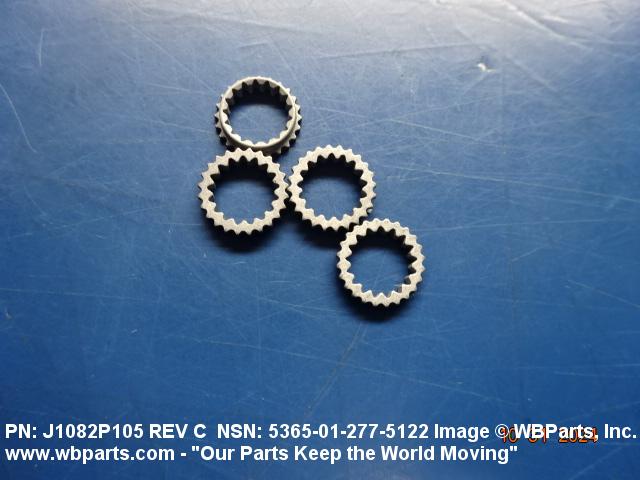

Drawings & Photos | NSN 5365-01-277-5122
Demand History | NSN 5365-01-277-5122
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J1082P105 | 2025-09-258 | 200 | us |
| J1082P105 | 2025-09-253 | 200 | us |
| 5365-01-277-5122 | 2024-10-276 | 250 | us |
| 5365-01-277-5122 | 2024-09-263 | 100 | US |
| 5365-01-277-5122 | 2024-01-04 | 200 | us |
| 5365-01-277-5122 | 2017-01-16 | 1 | United States |
| 5365-01-277-5122 | 2017-01-12 | 100 | US |
| 5365-01-277-5122 | 2010-01-06 | 55 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-277-5122
Technical Data | NSN 5365-01-277-5122
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY, AMS 5734, COMP 660 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| OVERALL OUTSIDE DIAMETER | 0.378 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.263 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| PILOT DIAMETER | 0.338 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| OUTER SERRATION QUANTITY | 24 |
| INNER SERRATION QUANTITY | 17 |
| SPECIAL FEATURES | MATL IRON ALLOY 660 AMS5737 UNS S66286 |
| SPECIFICATION/STANDARD DATA | 07482-J1082 MANUFACTURERS SPECIFICATION CONTROL |
Restrictions/Controls & Freight Information | NSN 5365-01-277-5122
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
