NSN 5365-01-355-1450 55982471, 5598247-1, 01-355-1450
Product Details | SHIM
5365-01-355-1450 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 55982471, 5598247-1, 5365-01-355-1450, 01-355-1450, 5365013551450, 013551450
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1992 | 01-355-1450 | 20349 ( SHIM ) |

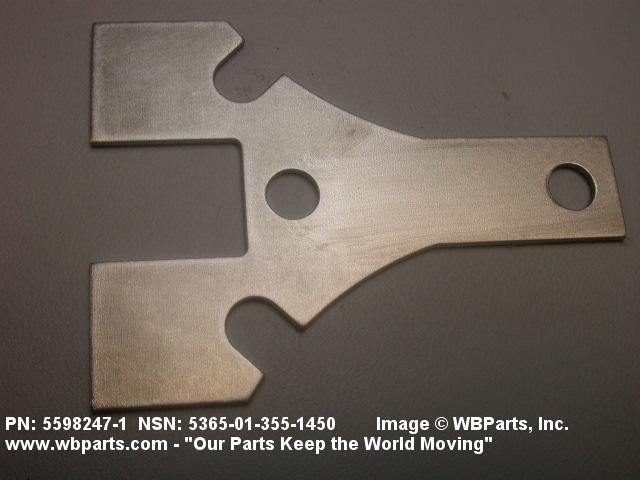

Drawings & Photos | NSN 5365-01-355-1450
Demand History | NSN 5365-01-355-1450
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 55982471 | 2025-02-35 | 24 | US |
| 5365-01-355-1450 | 2023-05-136 | 10 | US |
| 5365-01-355-1450 | 2023-01-06 | 498 | DIBBS |
| 5365-01-355-1450 | 2022-12-363 | 498 | DIBBS |
| 5365-01-355-1450 | 2021-08-242 | 851 | DIBBS |
| 5365-01-355-1450 | 2021-08-229 | 851 | DIBBS |
| 5365-01-355-1450 | 2021-08-221 | 514 | DIBBS |
| 5365-01-355-1450 | 2021-08-220 | 851 | DIBBS |
| 5365-01-355-1450 | 2020-01-24 | 32 | Spain |
| 5365-01-355-1450 | 2019-10-287 | 740 | DIBBS |
| 5365-01-355-1450 | 2016-11-313 | 576 | DIBBS |
| 55982471 | 2016-10-299 | 30 | United States |
| 55982471 | 2016-10-299 | 30 | Japan |
| 5365-01-355-1450 | 2014-08-240 | 6 | Japan |
| 5365-01-355-1450 | 2014-05-148 | 435 | DIBBS |
| 5365-01-355-1450 | 2013-10-295 | 30 | US |
| 5365-01-355-1450 | 2011-10-279 | 524 | DIBBS |
| 5365-01-355-1450 | 2010-10-302 | 504 | DIBBS |
| 5365-01-355-1450 | 2010-01-20 | 209 | DIBBS |
| 5365-01-355-1450 | 2009-11-307 | 327 | DIBBS |
| 5365-01-355-1450 | 2008-02-36 | 336 | DIBBS |
| 55982471 | 2007-04-102 | 32 | United States |
| 55982471 | 2007-03-80 | 32 | United States |
| 55982471 | 2007-01-24 | 32 | United States |
Cross Reference | NSN 5365-01-355-1450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5598247-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-355-1450
Technical Data | NSN 5365-01-355-1450
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE |
| CONSTRUCTION | LAMINATED |
| LAMINATION QUANTITY | 40 |
| LAMINATION THICKNESS | 0.002 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.371 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| OVERALL LENGTH | 3.910 INCHES NOMINAL |
| OVERALL WIDTH | 2.880 INCHES NOMINAL |
| FEATURES PROVIDED | SEPARABLE |
Restrictions/Controls & Freight Information | NSN 5365-01-355-1450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-355-1450
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
