NSN 5365-01-436-5929 53357493, 5335749-3, 01-436-5929
Product Details | SHIM
5365-01-436-5929 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 53357493, 5335749-3, 5365-01-436-5929, 01-436-5929, 5365014365929, 014365929
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 SEP 1996 | 01-436-5929 | 20349 ( SHIM ) |

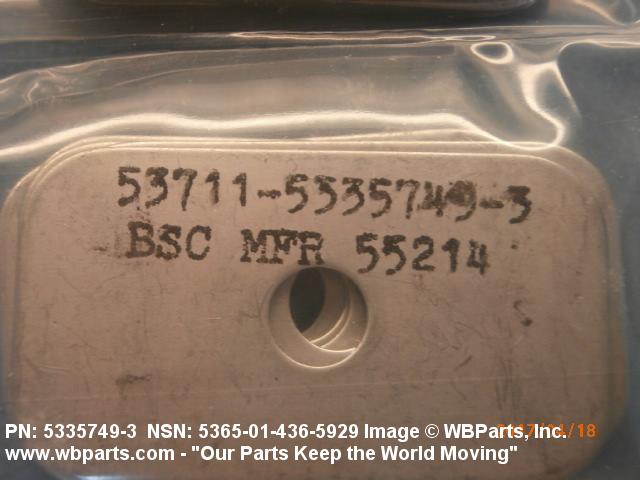

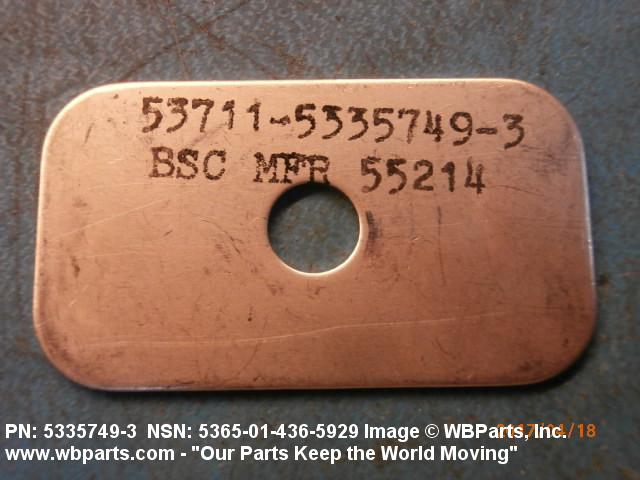

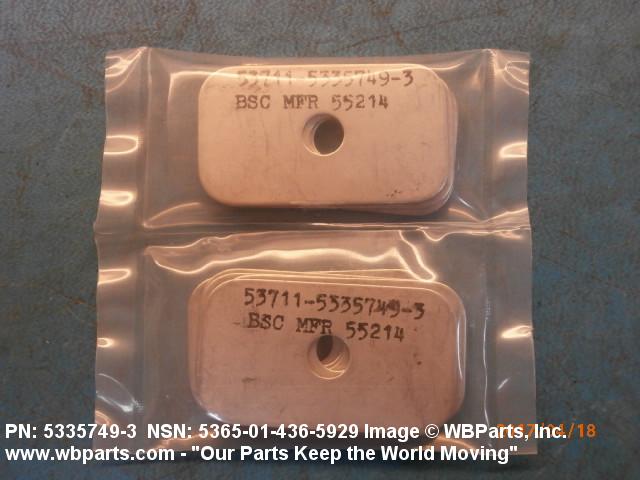

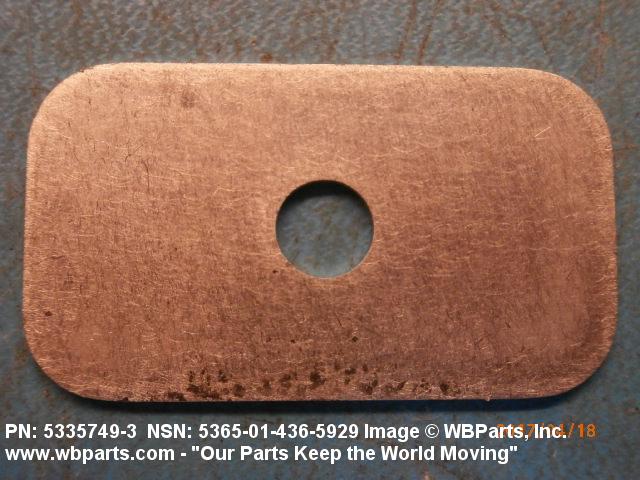

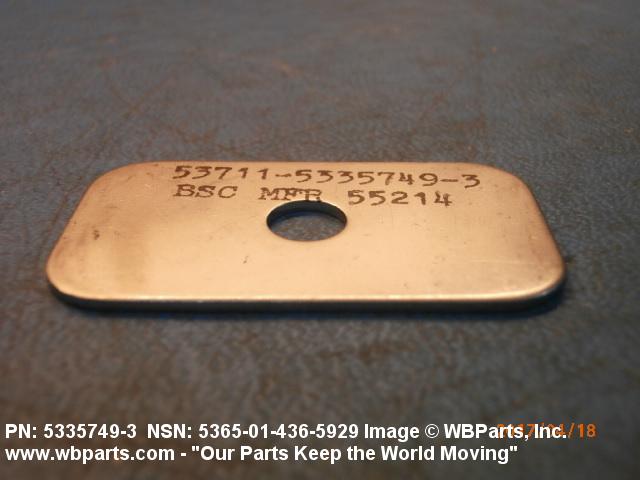

Drawings & Photos | NSN 5365-01-436-5929
Demand History | NSN 5365-01-436-5929
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-436-5929 | 2017-03-67 | 3 | United Kingdom |
Cross Reference | NSN 5365-01-436-5929
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5335749-3 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-436-5929
Technical Data | NSN 5365-01-436-5929
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE |

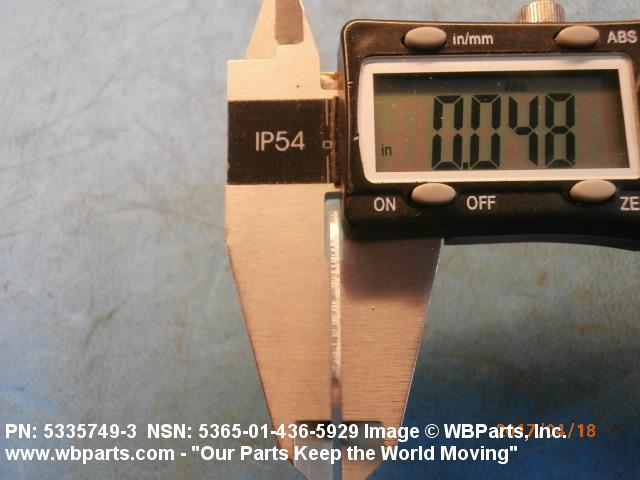

| OVERALL THICKNESS | 0.050 INCHES NOMINAL |
| STYLE DESIGNATOR | A34B NON-CIRCULAR W/ROUNDED CORNERS |

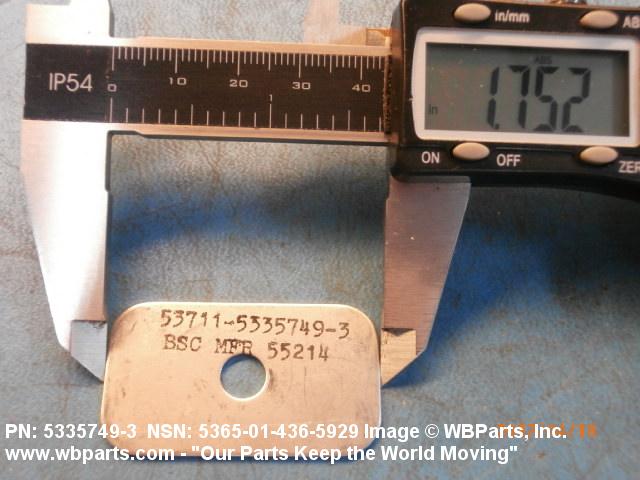

| OVERALL LENGTH | 1.750 INCHES NOMINAL |

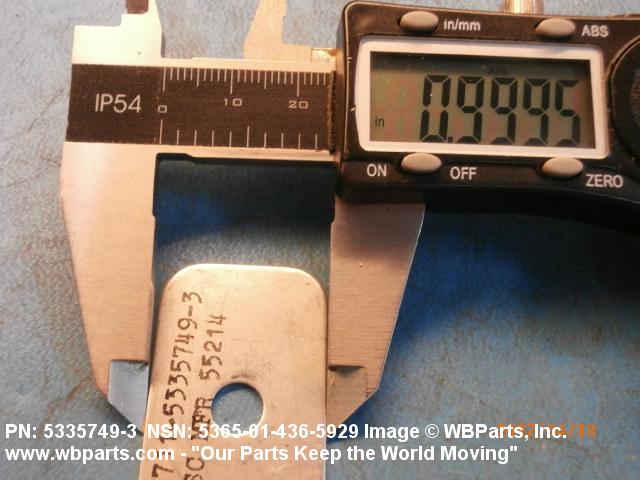

| OVERALL WIDTH | 1.000 INCHES NOMINAL |

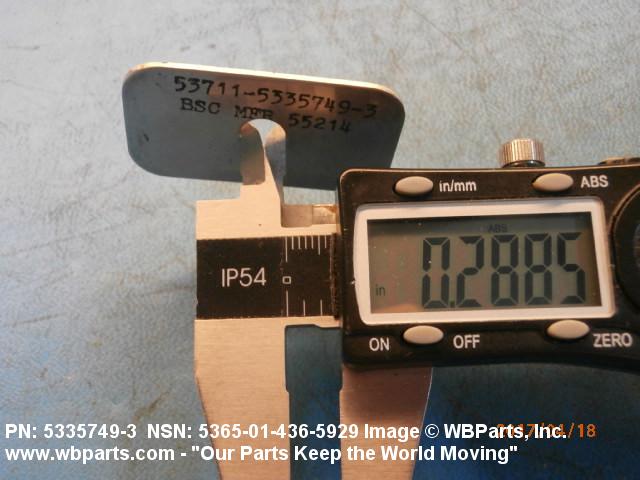

| APERTURE DIAMETER | 0.290 INCHES NOMINAL |
| SPECIAL FEATURES | NEXT ASSY P/N 5188052, NIIN 01-218-5840; USED ON CIWS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SHIM, FWD DOOR |
Restrictions/Controls & Freight Information | NSN 5365-01-436-5929
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
