Product Details | PLATE SPACER
5365-01-445-1753 A flat metal or plastic item of various peripheral shapes having a solid (not laminated) cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole having a solid rectangular cross-section use DISK, SOLID, PLAIN. For round or hexagonal items with only one hole centrally located and with the length (thickness) exceeding 25 percent of the outside diameter or distance across peripheral flats, see SPACER, SLEEVE. The thickness between the two parallel bearing surfaces must be 0.006 inch, (0.152 mm) or more for items less than 1/4 inch (6.35 mm) across the peripheral diameter, or smallest overall outside dimension, or must be 0.016 inch (0.406 mm) or more for items 1/4 inch (6.35 mm) or greater across the peripheral diameter or smallest overall outside dimension. For items with a thickness less than those indicated above, see SHIM. For items with one hole centrally located conforming to the above dimensional criteria use WASHER, FLAT or SPACER, RING as applicable. When thickness and/or outside diameter or smallest overall outside dimension is designated as a tolerance/dimension the maximum dimension will be used to determine compliance. Excludes GASKET; INSULATOR (as modified) and MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.202259000005365000000
Part Alternates: NAVS-6401402 ITEM 1, NAVS6401402ITEM1, 2110447957, 595640100040, 595-6401000-40, 59564014021, 595-6401402-1, 5365-01-445-1753, 01-445-1753, 5365014451753, 014451753
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1997 | 01-445-1753 | 26979 ( SPACER, PLATE ) |
Drawings & Photos | NSN 5365-01-445-1753
Cross Reference | NSN 5365-01-445-1753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2110447957 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 595-6401000-40 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 595-6401000-40 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 595-6401402-1 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 595-6401402-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| NAVS-6401402 ITEM 1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5365-01-445-1753
5365-01-445-2086, 5365-01-445-2104, 5365-01-445-2351, 5365-01-445-2395, 5365-01-445-2407
Technical Data | NSN 5365-01-445-1753
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CLA,FORM4 FED SPEC SINGLE MATERIAL RESPONSE |
| OVERALL THICKNESS | 0.250 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

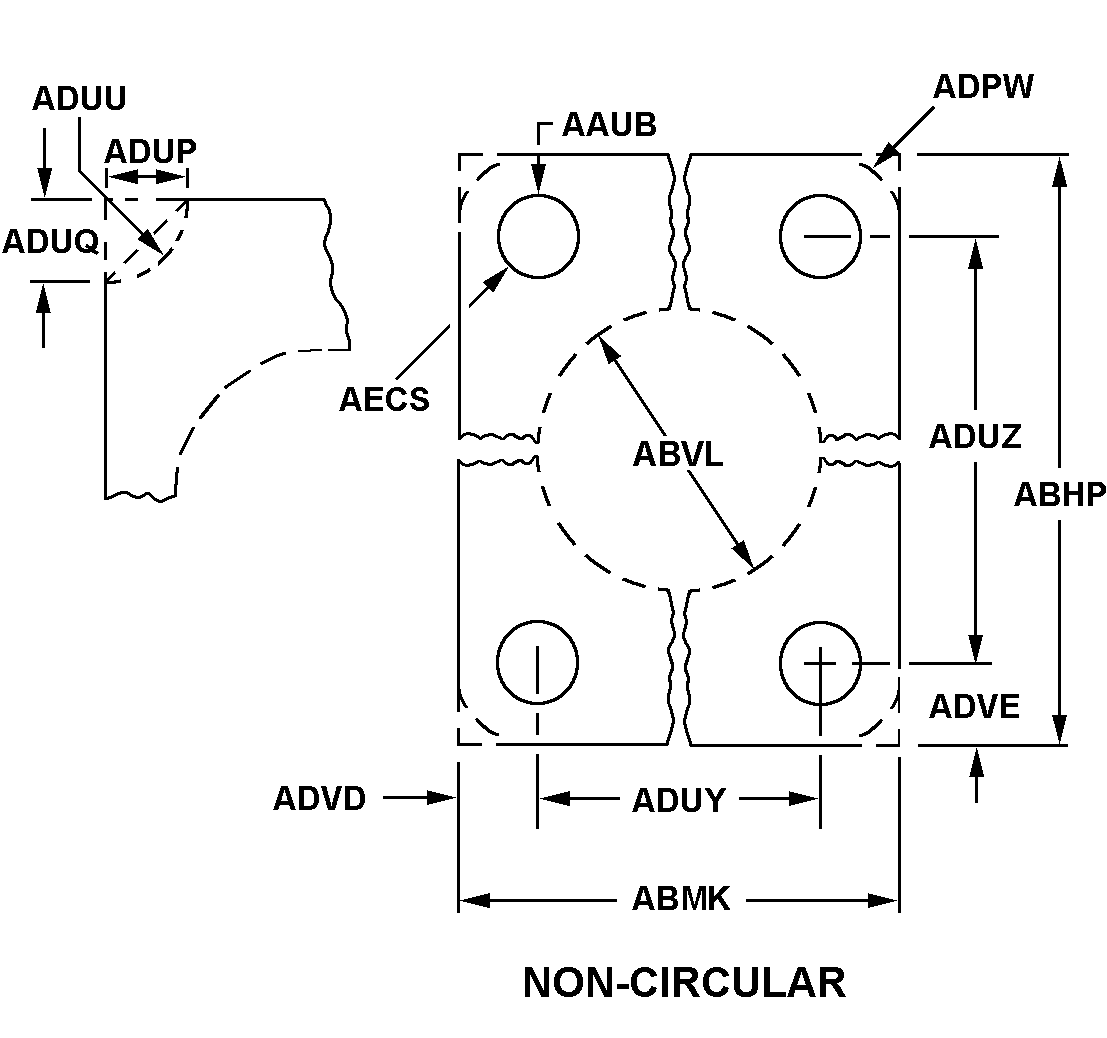

| STYLE DESIGNATOR | A15E NON-CIRCULAR W/BOLT HOLES |
| HOLE DIAMETER | 0.778 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| OVERALL WIDTH | 3.560 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 5.875 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.687 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.687 INCHES NOMINAL |
| SPECIAL FEATURES | TWO OF THE BOLT HOLES ALONG SAME SIDE OF THE LENGTH HAVE MINIMUM DIAMETER OF 1.059 IN. AND MAXIMUM DIAMETER OF 1.075 IN. |
Restrictions/Controls & Freight Information | NSN 5365-01-445-1753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-445-1753
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
