NSN 5365-01-492-8576 7409172, 7409172-01, 01-492-8576
Product Details | NONMETALLIC BUSHING
5365-01-492-8576 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: 7409172, 7409172-01, 5365-01-492-8576, 01-492-8576, 5365014928576, 014928576, 740917201
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 DEC 2001 | 01-492-8576 | 39929 ( BUSHING, NONMETALLIC ) |
Drawings & Photos | NSN 5365-01-492-8576
Demand History | NSN 5365-01-492-8576
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-492-8576 | 2023-12-352 | 91 | DIBBS |
| 5365-01-492-8576 | 2017-11-311 | 498 | DIBBS |
| 5365-01-492-8576 | 2015-05-148 | 25 | DIBBS |
| 5365-01-492-8576 | 2015-05-140 | 373 | DIBBS |
| 5365-01-492-8576 | 2015-05-139 | 25 | DIBBS |
| 5365-01-492-8576 | 2015-05-132 | 373 | DIBBS |
| 5365-01-492-8576 | 2015-05-132 | 3 | DIBBS |
| 5365-01-492-8576 | 2014-10-281 | 119 | DIBBS |
| 5365-01-492-8576 | 2014-10-280 | 79 | DIBBS |
| 5365-01-492-8576 | 2012-04-108 | 34 | DIBBS |
| 5365-01-492-8576 | 2010-04-102 | 14 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-492-8576
Technical Data | NSN 5365-01-492-8576
| Characteristic | Specifications |
|---|---|
| SPLIT DESIGN FEATURE | NOT INCLUDED |
| MATERIAL | PLASTIC, POLYAMIDE |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |

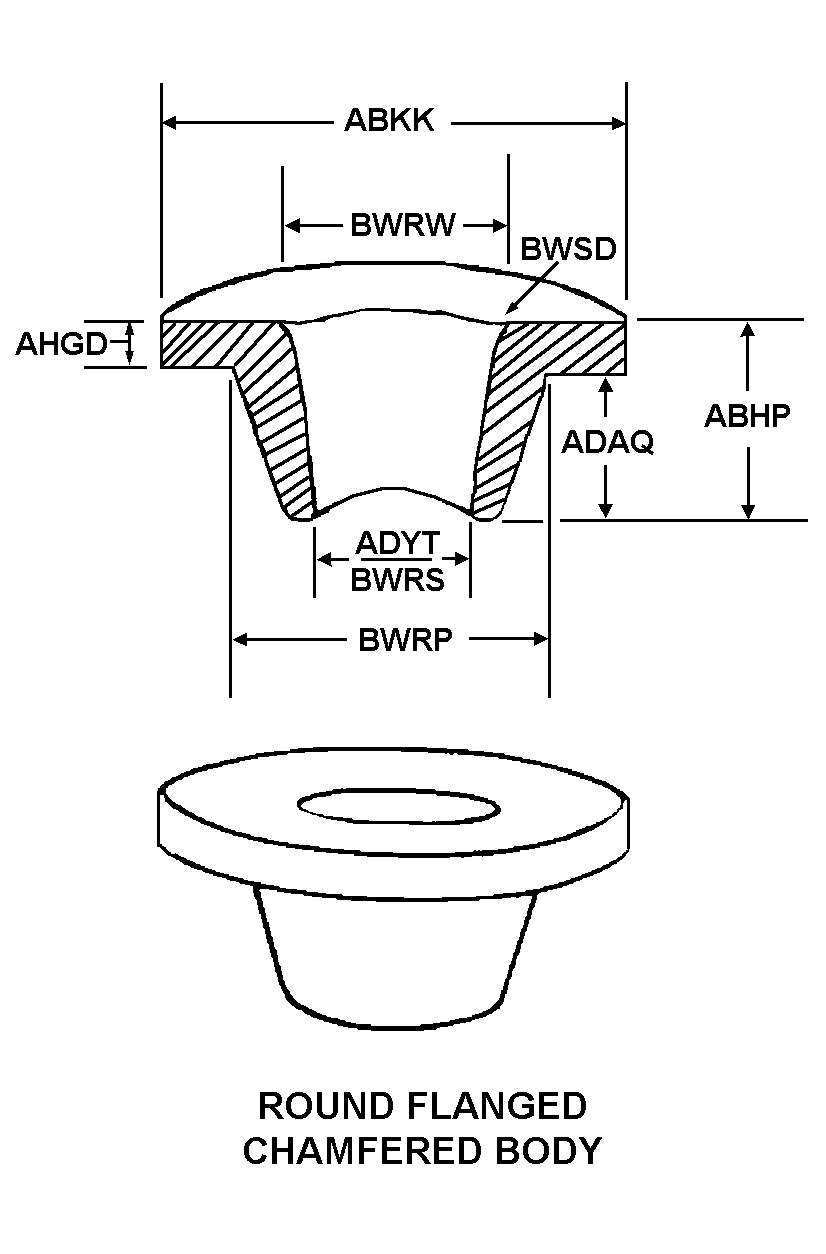

| STYLE DESIGNATOR | 15 ROUND FLANGED CHAMFERED BODY |
| OVERALL LENGTH | 0.365 INCHES NOMINAL |
| FLANGE DIAMETER | 0.838 INCHES NOMINAL |
| BODY LENGTH | 0.278 INCHES NOMINAL |
| FLANGE HEIGHT | 0.088 INCHES NOMINAL |
| TAPERED BODY LARGEST DIAMETER | 0.779 INCHES NOMINAL |
| TAPERED CENTER HOLE SMALLEST DIAMETER | 0.370 INCHES NOMINAL |
| TAPERED CENTER HOLE LARGEST DIAMETER | 0.659 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | 107.0 NOMINAL DUROMETER |
| III END ITEM IDENTIFICATION | AEL |
Restrictions/Controls & Freight Information | NSN 5365-01-492-8576
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-492-8576
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
