NSN 5365-01-512-5818 NAS43DD310N, NAS43DD3-10N, NSN SPECIFIC V-22 AE1107C ENGINE
Product Details | SLEEVE SPACER
5365-01-512-5818 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: NAS43DD310N, NAS43DD3-10N, NSN SPECIFIC V-22 AE1107C ENGINE, NSNSPECIFICV22AE1107CENGINE, 5365-01-512-5818, 01-512-5818, 5365015125818, 015125818
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 SEP 2003 | 01-512-5818 | 13207 ( SPACER, SLEEVE ) |

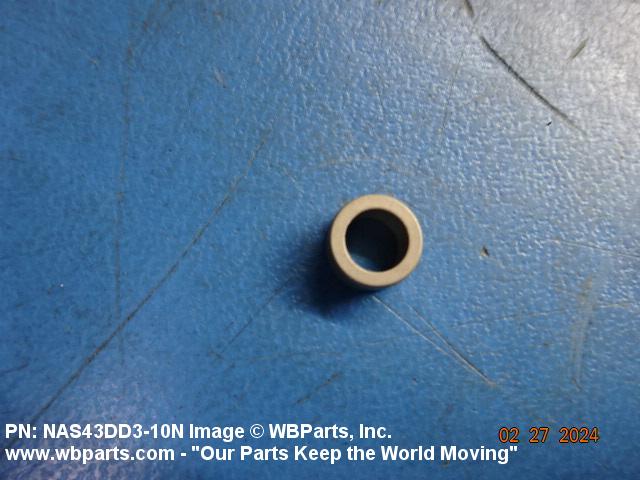

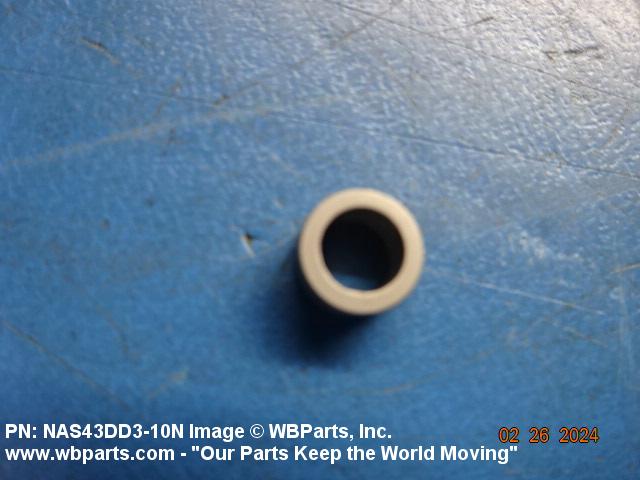

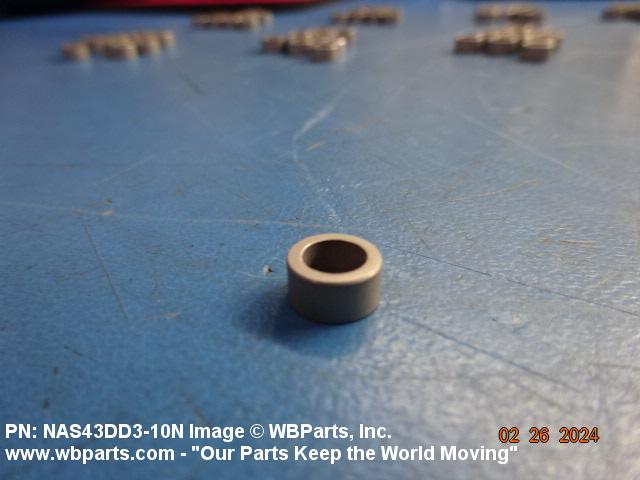

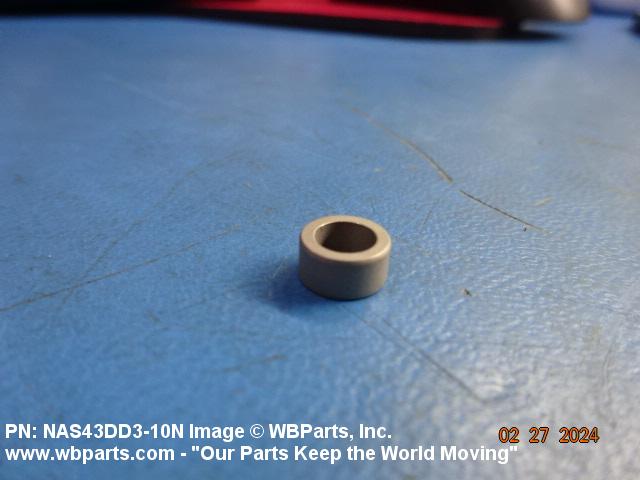

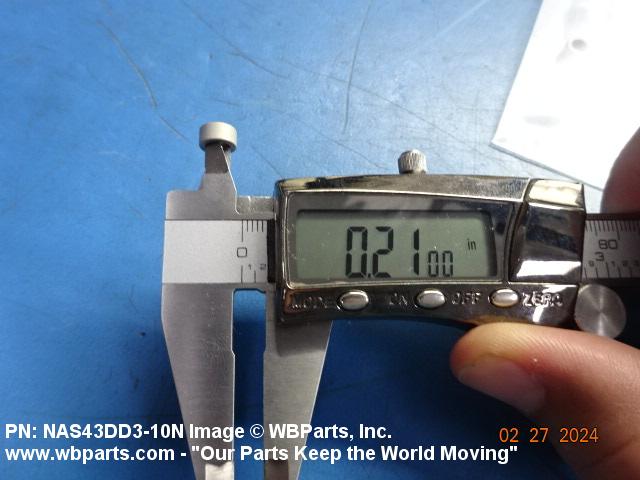

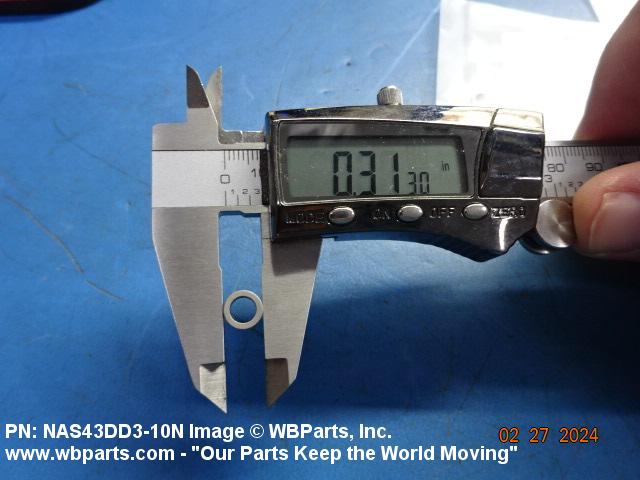

Drawings & Photos | NSN 5365-01-512-5818
Demand History | NSN 5365-01-512-5818
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS43DD310N | 2024-02-53 | 150 | United States |
| NAS43DD310N | 2024-02-53 | 150 | United States |
| NAS43DD310N | 2017-10-277 | 2 | US |
| NSN SPECIFIC V-22 AE1107C ENGINE | 2016-03-81 | 4 | United States |
| NAS43DD310N | 2015-05-140 | 15 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-512-5818
Technical Data | NSN 5365-01-512-5818
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | WW-T-700/3,T3 TY-1 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY-1 MIL SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

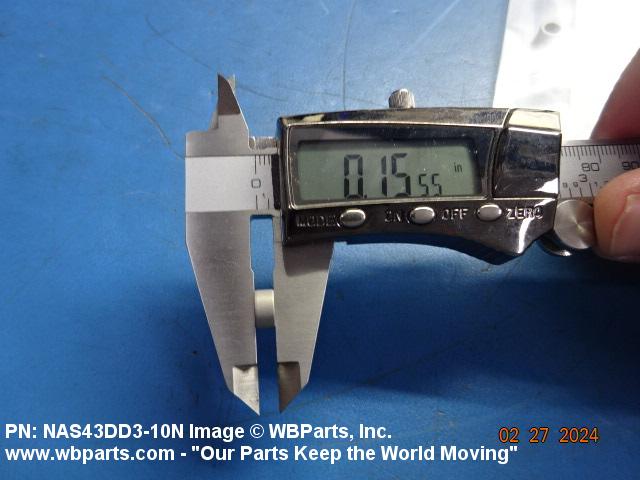

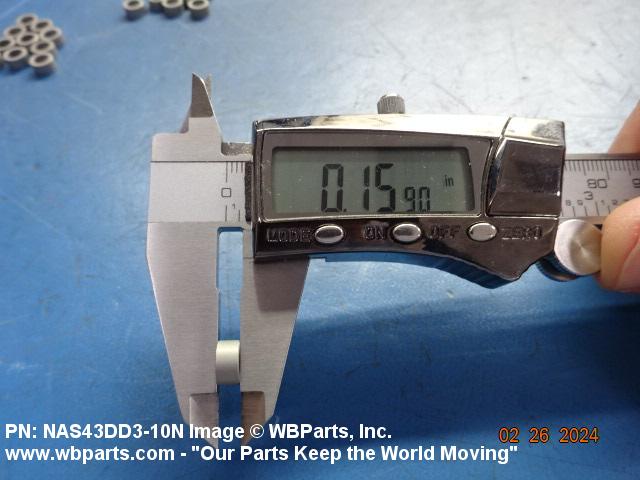

| OVERALL LENGTH | 0.1510 INCHES MINIMUM AND 0.1610 INCHES MAXIMUM |

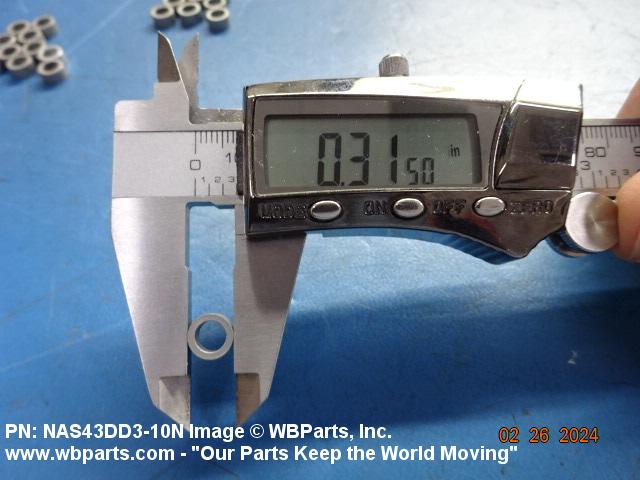

| BODY OUTSIDE DIAMETER | 0.3020 INCHES MINIMUM AND 0.3220 INCHES MAXIMUM |

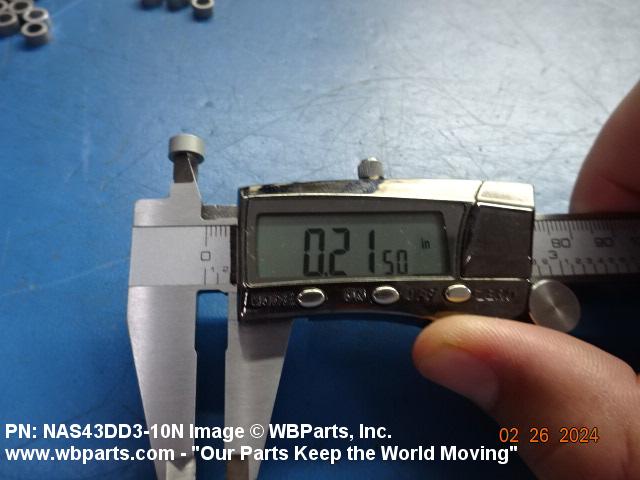

| BODY INSIDE DIAMETER | 0.1940 INCHES MINIMUM AND 0.2340 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | V-22 ENGINE;T406-AD-400 ENGINE |
Restrictions/Controls & Freight Information | NSN 5365-01-512-5818
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-512-5818
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | CL | ALLISONENGINE(AE1107C) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | Q1J | Naval ICP Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Y EA : Each |
