NSN 5365-01-573-9845 13509113, 135091-13, 01-573-9845
Product Details | SLEEVE BUSHING
5365-01-573-9845 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 13509113, 135091-13, 5365-01-573-9845, 01-573-9845, 5365015739845, 015739845
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 2009 | 01-573-9845 | 13206 ( BUSHING, SLEEVE ) |

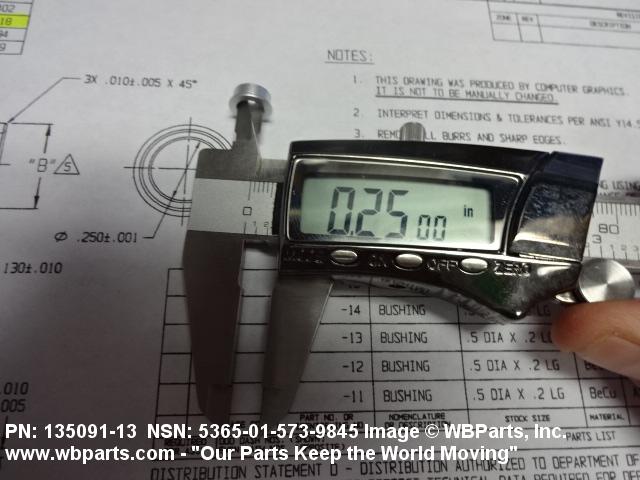

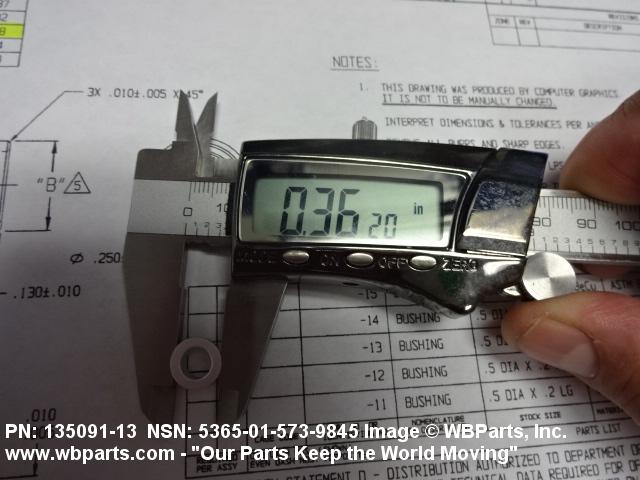

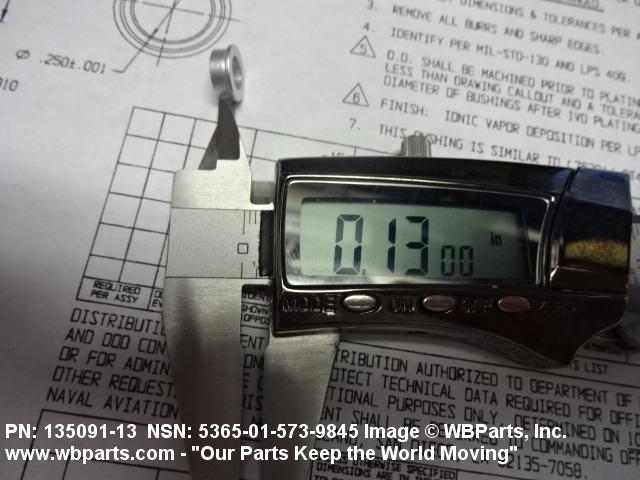

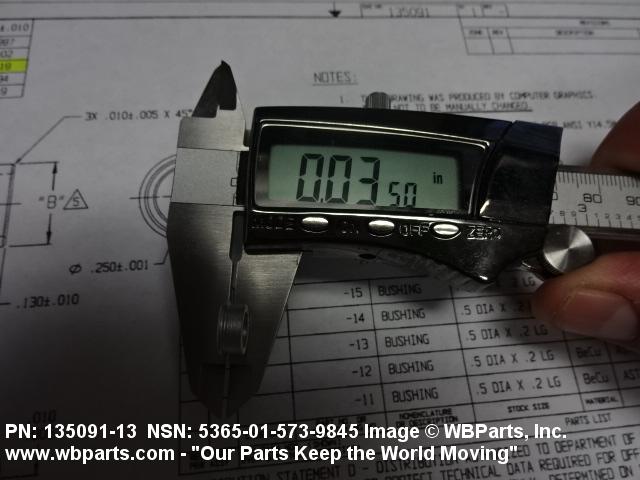

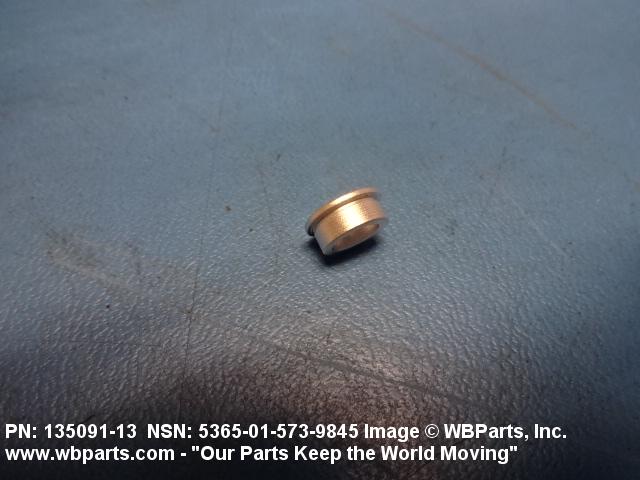

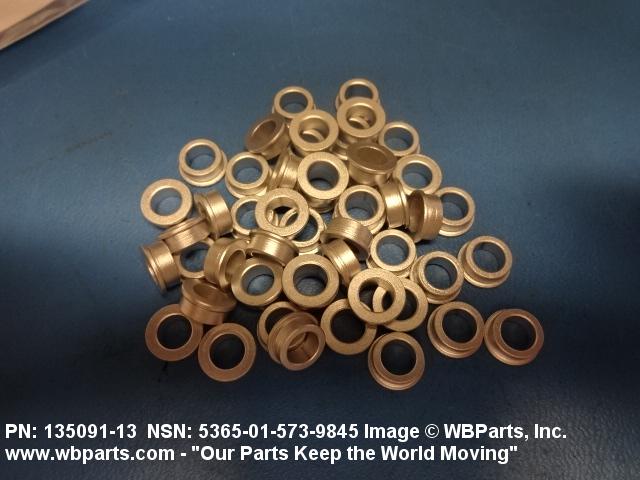

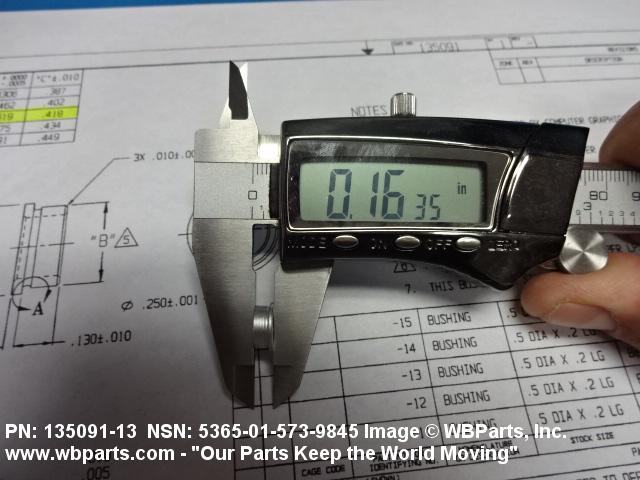

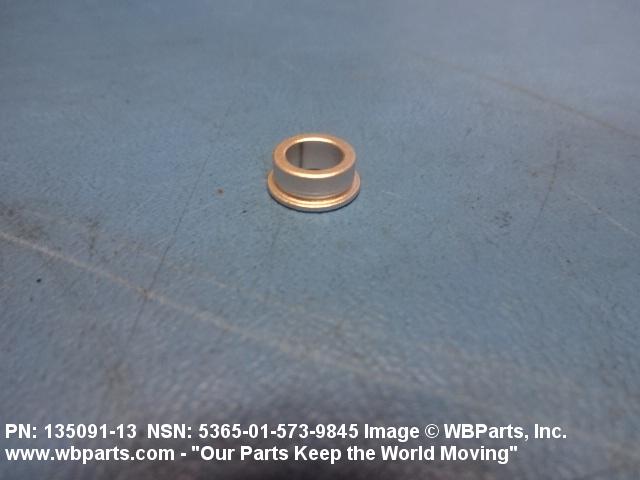

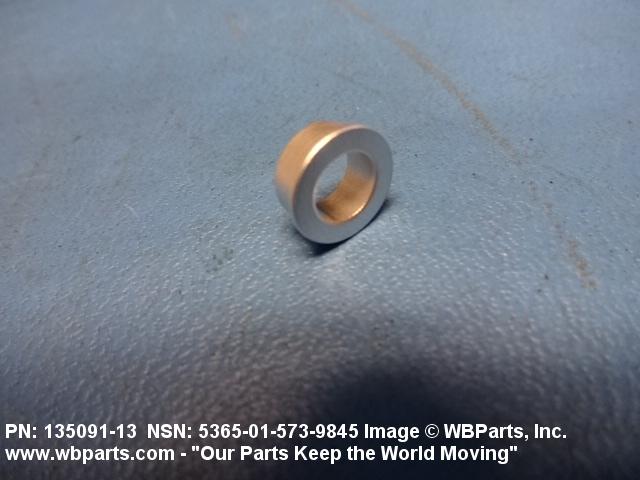

Drawings & Photos | NSN 5365-01-573-9845
Demand History | NSN 5365-01-573-9845
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-573-9845 | 2020-05-136 | 12 | United States |
| 5365-01-573-9845 | 2020-04-100 | 6 | Australia |
| 5365-01-573-9845 | 2017-02-48 | 50 | United States |
| 5365-01-573-9845 | 2017-02-32 | 50 | DIBBS |
| 5365-01-573-9845 | 2014-09-273 | 21 | DIBBS |
| 5365-01-573-9845 | 2014-05-141 | 3 | DIBBS |
| 5365-01-573-9845 | 2014-05-141 | 3 | DIBBS |
| 5365-01-573-9845 | 2014-03-85 | 6 | DIBBS |
| 5365-01-573-9845 | 2014-03-68 | 6 | DIBBS |
| 5365-01-573-9845 | 2014-01-30 | 1 | DIBBS |
Cross Reference | NSN 5365-01-573-9845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 135091-13 | 91145 | FLEET READINESS CENTER SOUTHWEST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-573-9845
Technical Data | NSN 5365-01-573-9845
| Characteristic | Specifications |
|---|---|
| RIGHT FLANGE WIDTH | 0.0900 INCHES MINIMUM AND 0.1100 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2490 INCHES MINIMUM AND 0.2510 INCHES MAXIMUM |
| OVERALL LENGTH | 0.1500 INCHES MINIMUM AND 0.1750 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY OVERALL |
| RIGHT FLANGE OUTSIDE DIAMETER | 0.3614 INCHES MINIMUM AND 0.3619 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | F/A-18 AIRCRAFT |
| STYLE DESIGNATOR | SOLID INTERNAL FLANGE ONE END |
| BODY OUTSIDE DIAMETER | 0.3414 INCHES MINIMUM AND 0.3519 INCHES MAXIMUM |
| LEFT FLANGE OUTSIDE DIAMETER | 0.4080 INCHES MINIMUM AND 0.4280 INCHES MAXIMUM |
| SPECIAL FEATURES | MATERIAL IS BECU, FINISH IS IONIC VAPOR DEPOSITION IAW LPS/NI 285, CLASS 3, TYPE 1 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B196 ALLOY C17300 COND TD04 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HINGE NO.1,2,3 3RD O/S BUSHING |
| LEFT FLANGE WIDTH | 0.0300 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5365-01-573-9845
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5365-01-573-9845
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
