NSN 5365-01-590-7613 941187, 01-590-7613, 015907613
Product Details | RING SPACER
5365-01-590-7613 A circular-shaped item designed to maintain predetermined distance between assembled parts and/or for distributing pressure or preventing endwise movement between member parts. It has a solid cross-section and two flat parallel bearing surfaces. The distance between the bearing surfaces perpendicular to the axis of the centrally located hole shall not exceed 25 percent of the outside diameter. The diameter of the centrally located hole must exceed 75 percent of the outside diameter. Excludes laminated items. For items manufactured from impregnated graphite or lubricated nonmetallic materials, excluding felt or plastics, see GASKET. For items manufactured from lubricated plastics, see BEARING, WASHER, THRUST. For items manufactured from lubricated felt, see FELT, MECHANICAL, PREFORMED. Excludes DISK, VALVE; INSULATOR WASHER; and SHIM. See also SPACER, PLATE and SPACER, SLEEVE.
Part Alternates: 941187, 5365-01-590-7613, 01-590-7613, 5365015907613, 015907613
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 DEC 2010 | 01-590-7613 | 24307 ( SPACER, RING ) |

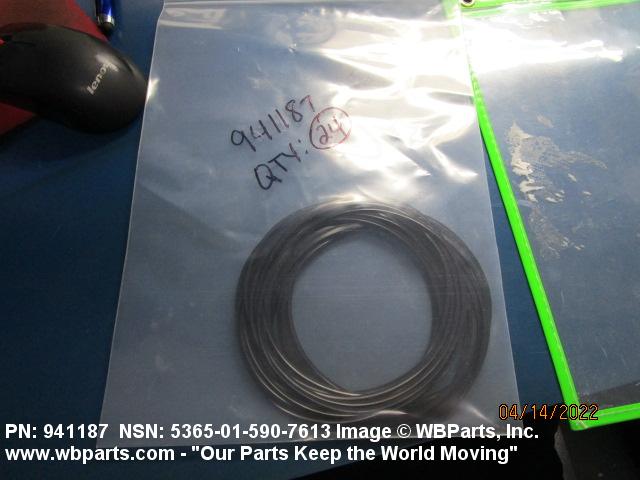

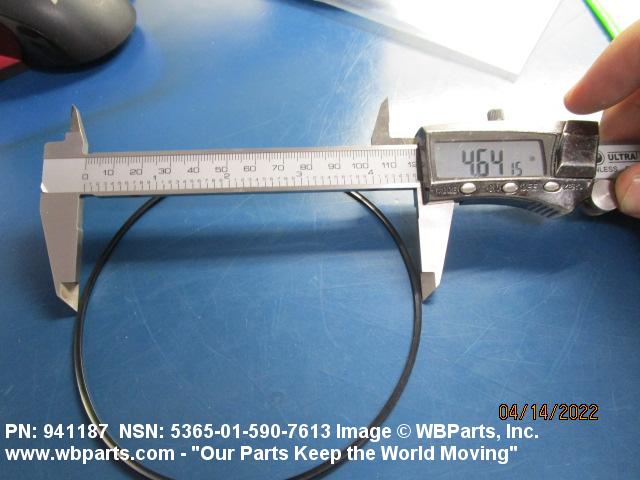

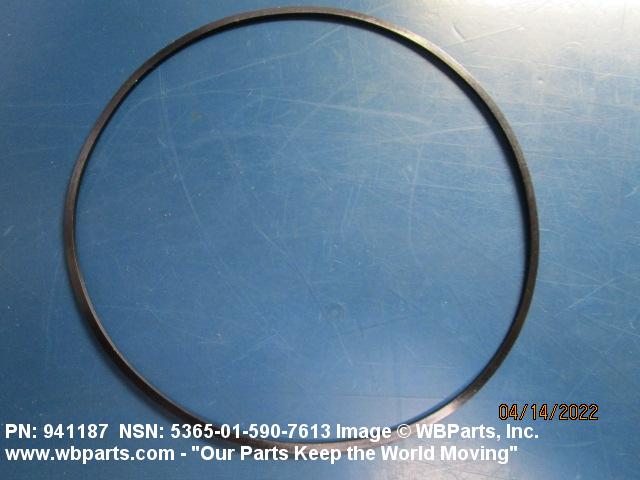

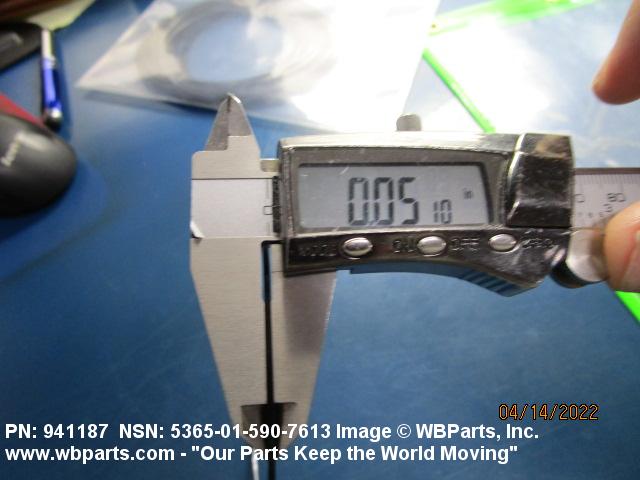

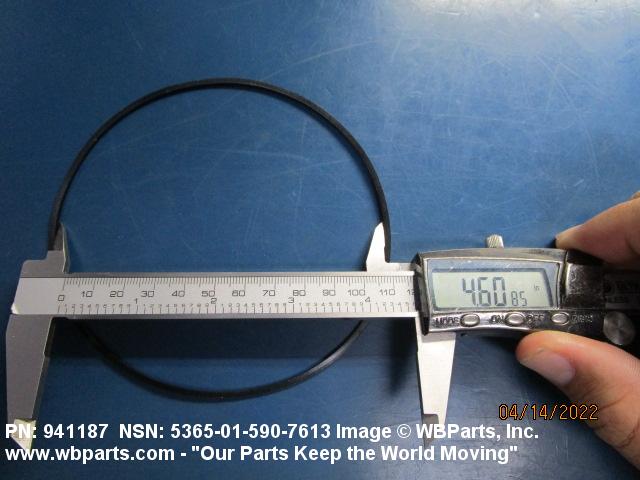

Drawings & Photos | NSN 5365-01-590-7613
Demand History | NSN 5365-01-590-7613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 941187 | 2024-08-233 | 271 | DIBBS |
| 5365-01-590-7613 | 2024-08-218 | 1 | United States |
| 5365-01-590-7613 | 2024-08-215 | 11 | United States |
| 5365-01-590-7613 | 2024-07-207 | 6 | US |
| 5365-01-590-7613 | 2024-07-207 | 11 | US |
| 941187 | 2023-12-346 | 205 | DIBBS |
| 941187 | 2022-03-87 | 24 | United States |
| 941187 | 2022-03-60 | 361 | DIBBS |
| 941187 | 2022-02-41 | 361 | DIBBS |
| 5365-01-590-7613 | 2017-12-345 | 521 | DIBBS |
Cross Reference | NSN 5365-01-590-7613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 941187 | 05779 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC FILTER DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-590-7613
Technical Data | NSN 5365-01-590-7613
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | 4330-01-590-7608 FILTER UNIT,FLUID,PRESSURE P/N WPF4 10QE B M2 K Y20 1 |
| SPECIAL FEATURES | ANTI-EXTRUSION |
Restrictions/Controls & Freight Information | NSN 5365-01-590-7613
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5365-01-590-7613
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
