NSN 5365-01-618-0691 30371671, 3037-1671 , 01-618-0691
Product Details | SHIM
5365-01-618-0691 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 30371671, 3037-1671 , 5365-01-618-0691, 01-618-0691, 5365016180691, 016180691
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013101 | 01-618-0691 | 20349 ( SHIM ) |

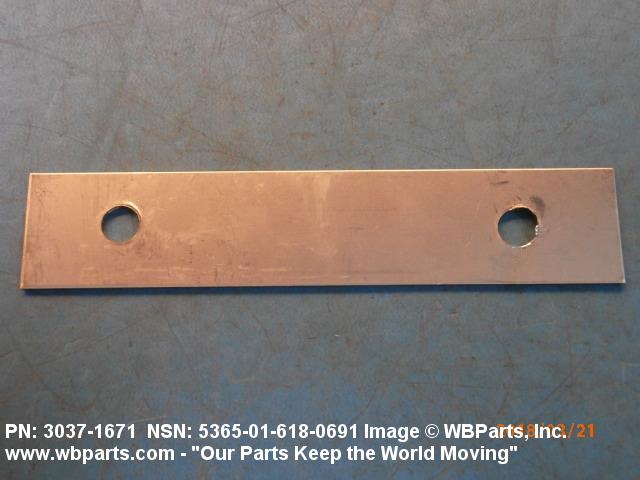

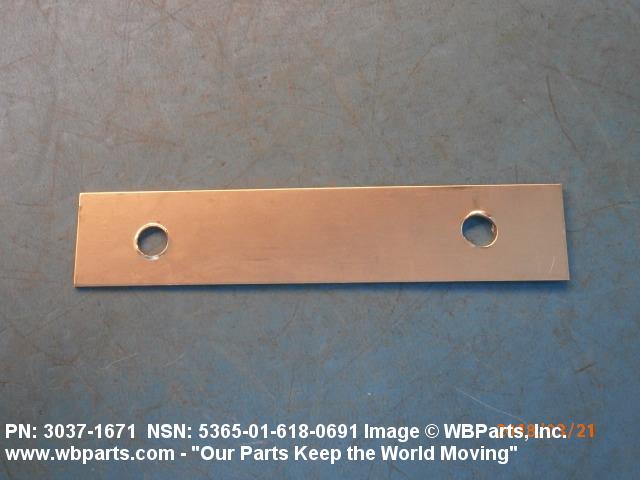

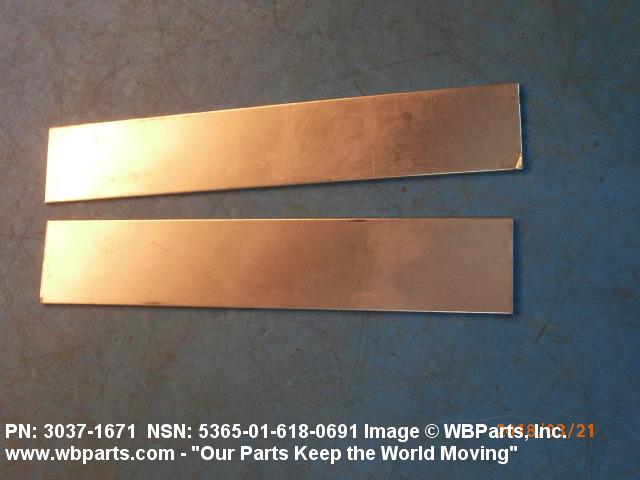

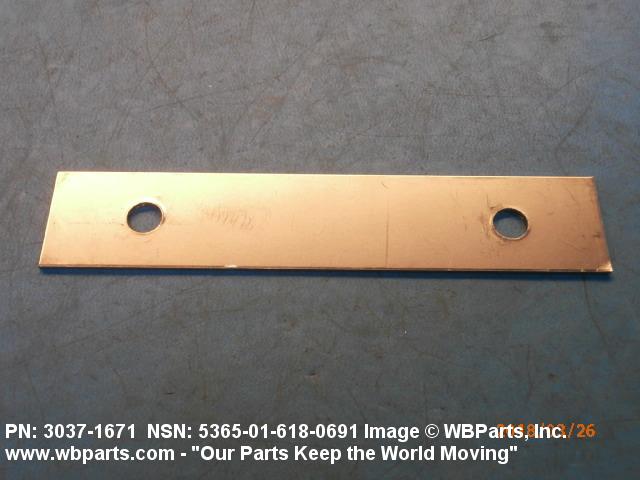

Drawings & Photos | NSN 5365-01-618-0691
Demand History | NSN 5365-01-618-0691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-618-0691 | 2023-01-29 | 539 | DIBBS |
| 5365-01-618-0691 | 2018-09-270 | 315 | DIBBS |
| 5365-01-618-0691 | 2018-08-219 | 110 | DIBBS |
| 5365-01-618-0691 | 2018-03-65 | 8 | United States |
| 5365-01-618-0691 | 2017-12-339 | 65 | DIBBS |
| 5365-01-618-0691 | 2017-07-190 | 32 | DIBBS |
| 5365-01-618-0691 | 2014-04-93 | 19 | DIBBS |
| 5365-01-618-0691 | 2013-10-303 | 7 | DIBBS |
Cross Reference | NSN 5365-01-618-0691
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3037-1671 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-618-0691
Technical Data | NSN 5365-01-618-0691

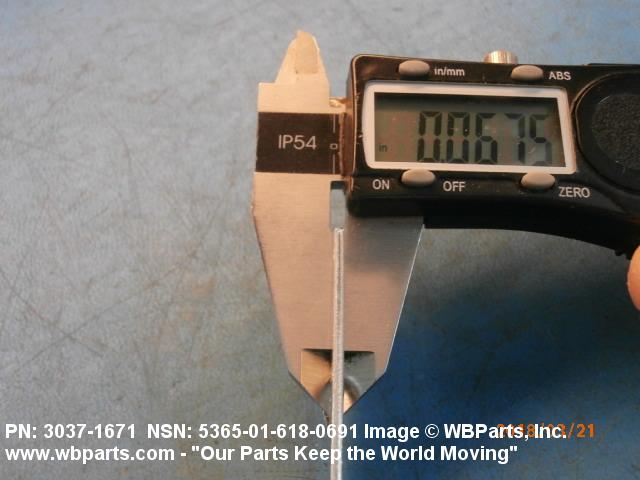

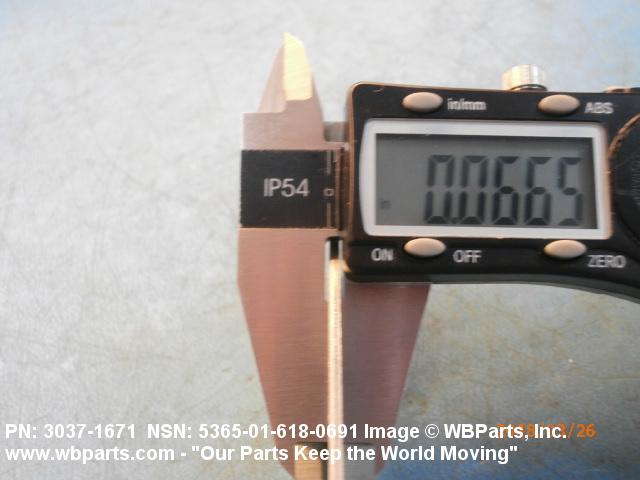

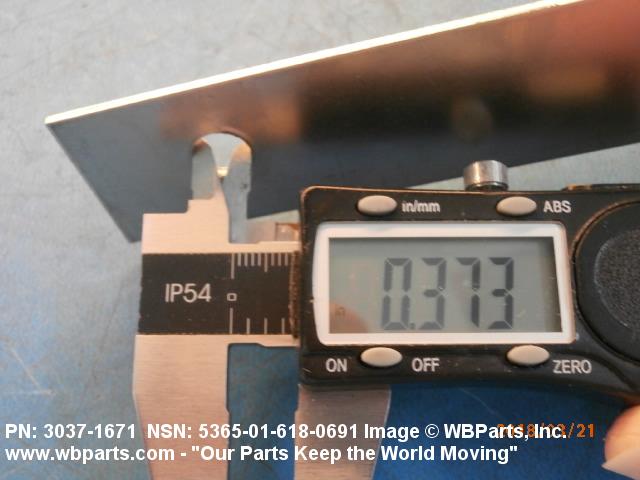

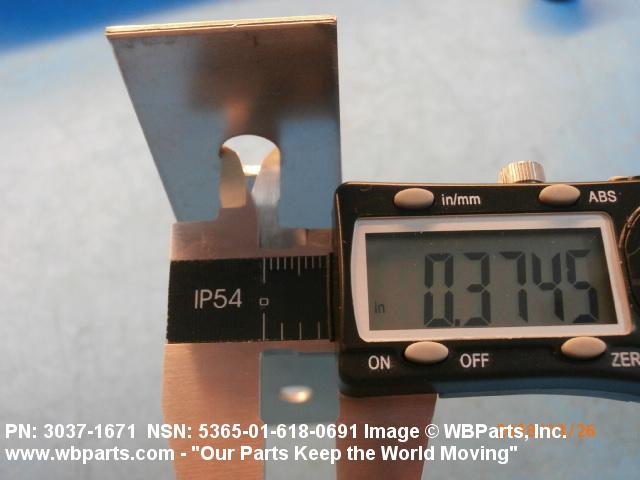

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-22499 FED SPEC 1ST MATERIAL RESPONSE AND |
| OVERALL THICKNESS | 0.0625 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| BOLT HOLE DIAMETER | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | RECTANGULAR |

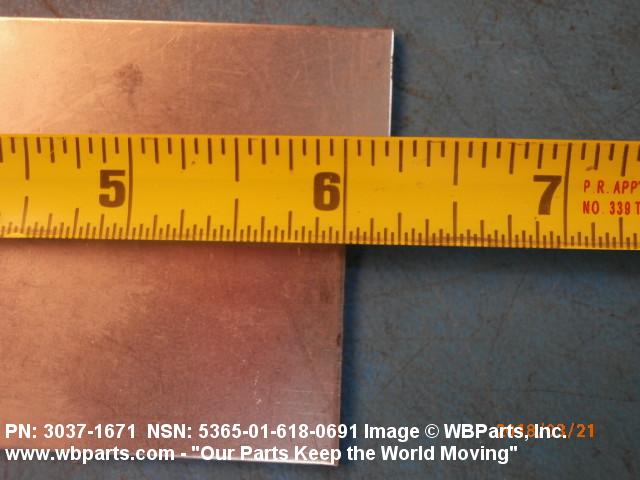

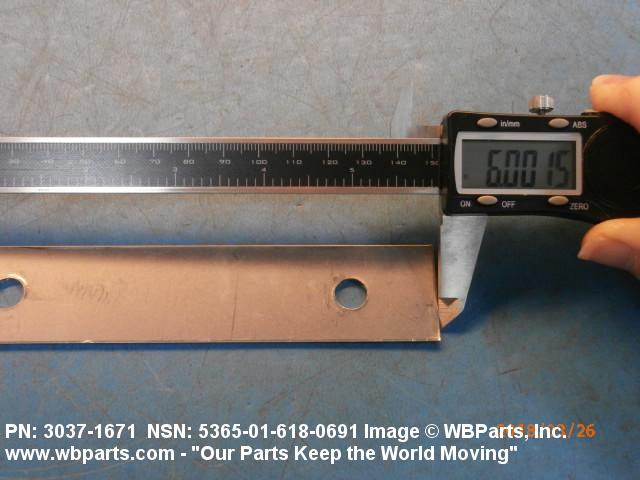

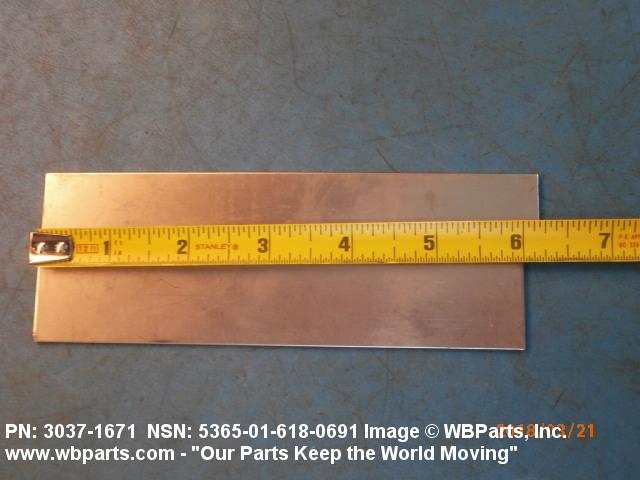

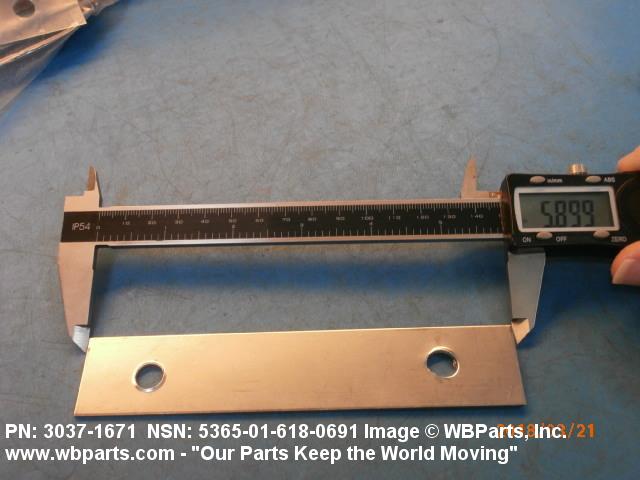

| OVERALL LENGTH | 6.000 INCHES NOMINAL |

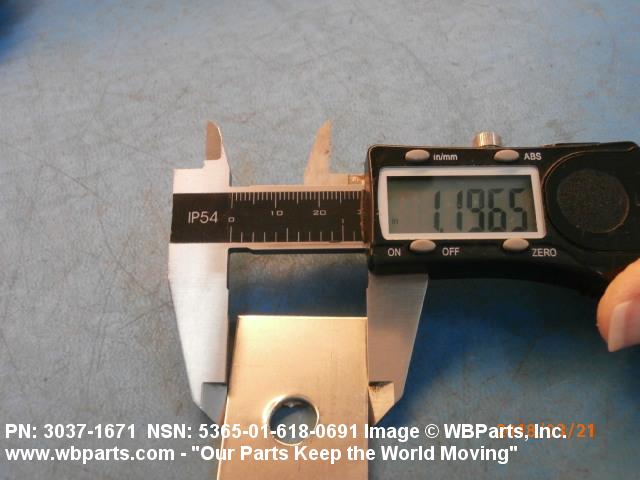

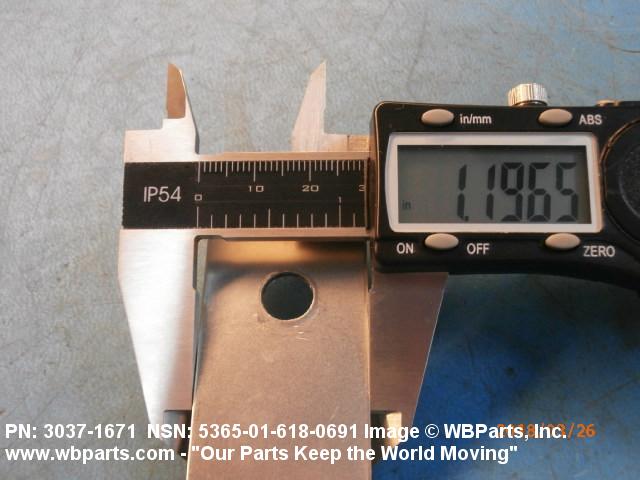

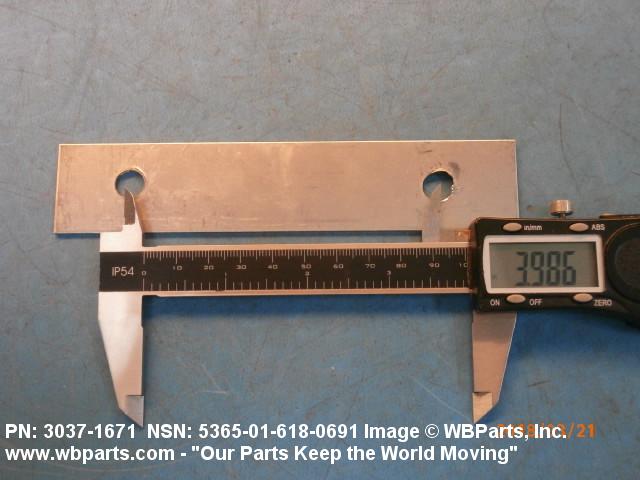

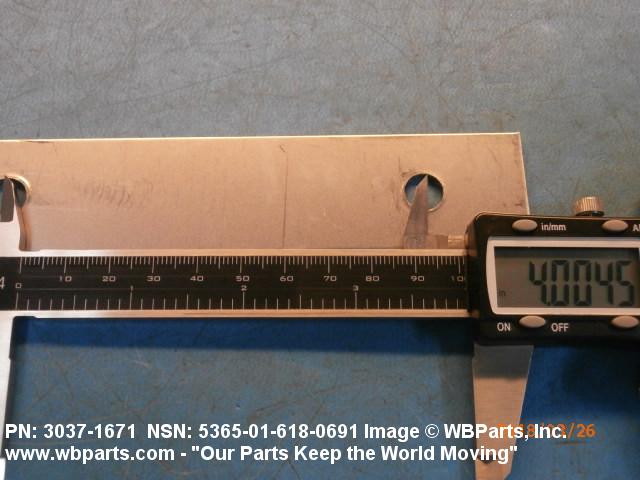

| OVERALL WIDTH | 0.188 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 4.000 INCHES NOMINAL |

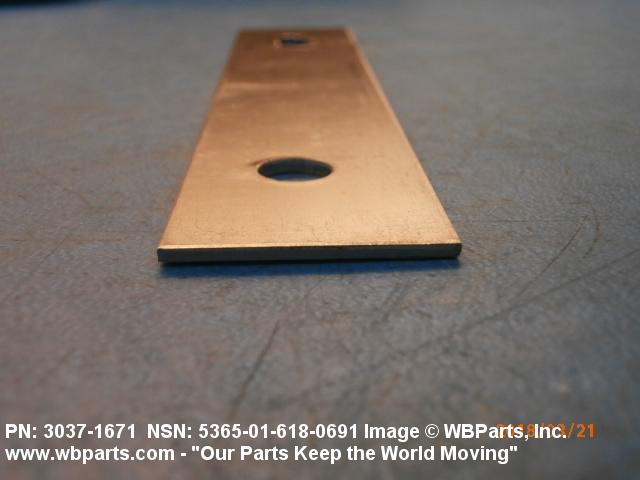

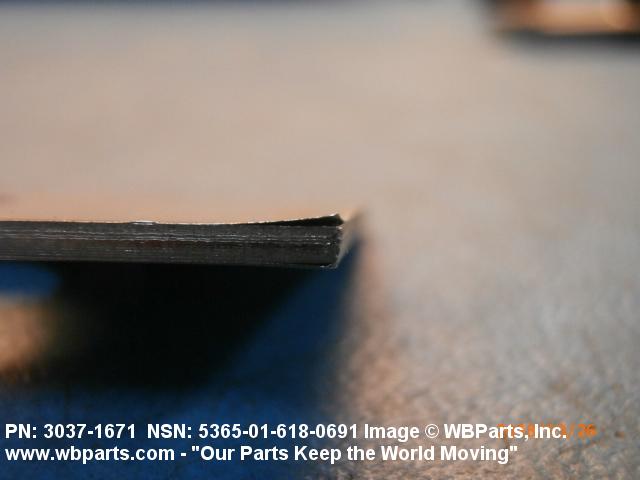

| SPECIAL FEATURES | LAMINATED STEEL;DETAILS REFER TO DRAWING 3037-1671 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SHIM GUIDE ADJUSTMENT,SECONDARY DOOR |
Restrictions/Controls & Freight Information | NSN 5365-01-618-0691
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | TU | AF Cataloging Agent DLIS-K Battle Creek, MI 49037-3094 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
