NSN 5410-00-025-3930 D8770133, D8770-1-33, 8770133
Product Details | READY-CUT PREFABRICATED BUILDING
5410-00-025-3930 A structure constructed of metal and/or wood studs, joists, rafters, siding and other parts fabricated to predetermined shapes and sizes at the factory and shipped knocked down and packaged. Designed for quick erection or dismantling and adapted for various uses.
Part Alternates: D8770133, D8770-1-33, 8770133, 8770-1-33, 5410-00-025-3930, 00-025-3930, 5410000253930, 000253930
Prefabricated Structures and Scaffolding | Prefabricated and Portable Buildings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 54 | 01 JAN 1963 | 00-025-3930 | 02393 ( BUILDING, PREFABRICATED, READY-CUT ) |
Drawings & Photos | NSN 5410-00-025-3930
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5410-00-025-3930
Related Products | NSN 5410-00-025-3930
Technical Data | NSN 5410-00-025-3930
| Characteristic | Specifications |
|---|---|

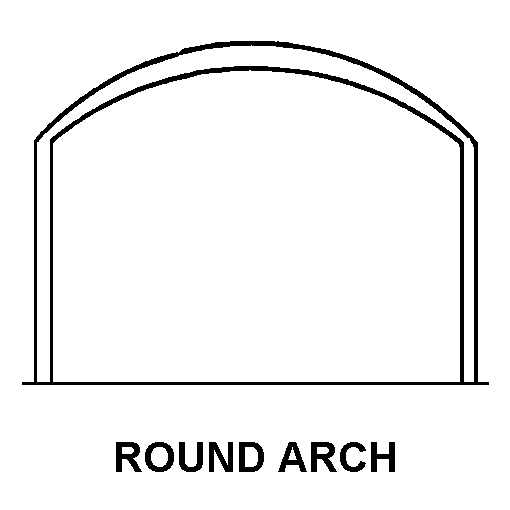

| STYLE DESIGNATOR | A31 ROUND ARCH |
| PARTIALLY PANELED FEATURE | NOT INCLUDED |
| NOMINAL WIDTH | 20.000 FEET |
| NOMINAL LENGTH | 48.000 FEET |
| CENTER INSIDE CLEARANCE HEIGHT | 10.000 FEET NOMINAL |
| SIDEWALL INSIDE CLEARANCE HEIGHT | 7.000 FEET NOMINAL |
| ROOF FRAMING MATERIAL | STEEL |
| ROOF MATERIAL | STEEL |
| SIDEWALL FRAMING MATERIAL | STEEL |
| OUTSIDE SIDEWALL MATERIAL | STEEL |
| INSIDE SIDEWALL MATERIAL | FIBERBOARD |
| ENDWALL FRAMING MATERIAL | STEEL |
| OUTSIDE ENDWALL MATERIAL | STEEL |
| INSIDE ENDWALL MATERIAL | FIBERBOARD |
| FLOOR FRAMING MATERIAL | STEEL |
| FLOOR MATERIAL | PLYWOOD |
| FOUNDATION POST MATERIAL | WOOD |
| CEILING MATERIAL | FIBERBOARD |
| PARTITION MATERIAL | ANY ACCEPTABLE |
| INSULATION LOCATION | ROOF AND WALL |
| ROOM QUANTITY | 1 |
| DOOR OPENING QUANTITY | 2 |
| DOOR OPENING TYPE | FRAME |
| DOOR OPENING LOCATION | END WALL |
| DOOR OPENING WIDTH | 3.510 FEET NOMINAL |
| DOOR OPENING HEIGHT | 7.031 FEET NOMINAL |
| DOOR TYPE AND QUANTITY | 2 HINGED SINGLE |
| DOOR LOCATION | END WALL |
| DOOR WIDTH | 3.500 FEET NOMINAL |
| DOOR HEIGHT | 7.000 FEET NOMINAL |
| WINDOW OPENING QUANTITY | 16 |
| WINDOW OPENING TYPE | FRAME |
| WINDOW OPENING LOCATION | SIDE WALL |
| WINDOW OPENING WIDTH | 3.667 FEET NOMINAL |
| WINDOW OPENING HEIGHT | 1.844 FEET NOMINAL |
| WINDOW QUANTITY | 16 |
| WINDOW WIDTH | 3.812 FEET NOMINAL |
| WINDOW HEIGHT | 1.974 FEET NOMINAL |
| SCREEN QUANTITY | 16 |
| LOUVER OPENING QUANTITY | 2 |
| LOUVER QUANTITY | 2 |
| VENTILATOR OPENING QUANTITY | 1 |
| VENTILATOR QUANTITY | 1 |
| STACK OPENING QUANTITY | 1 |
| STACK QUANTITY | 2 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| MANUFACTURERS CODE | 81336 |
| DESIGN CONTROL REFERENCE | D8770-1-33 |
Restrictions/Controls & Freight Information | NSN 5410-00-025-3930
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5410-00-025-3930
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WA | Port Support and Watercraft Equipment |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
