NSN 5410-00-254-4278 MILB16041, MIL-B-16041, 00-254-4278
Product Details | READY-CUT PREFABRICATED BUILDING
5410-00-254-4278 A structure constructed of metal and/or wood studs, joists, rafters, siding and other parts fabricated to predetermined shapes and sizes at the factory and shipped knocked down and packaged. Designed for quick erection or dismantling and adapted for various uses.
Part Alternates: MILB16041, MIL-B-16041, 5410-00-254-4278, 00-254-4278, 5410002544278, 002544278
Prefabricated Structures and Scaffolding | Prefabricated and Portable Buildings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 54 | 01 JAN 1963 | 00-254-4278 | 02393 ( BUILDING, PREFABRICATED, READY-CUT ) |
Drawings & Photos | NSN 5410-00-254-4278
Cross Reference | NSN 5410-00-254-4278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-B-16041 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5410-00-254-4278
Related Products | NSN 5410-00-254-4278
Technical Data | NSN 5410-00-254-4278
| Characteristic | Specifications |
|---|---|

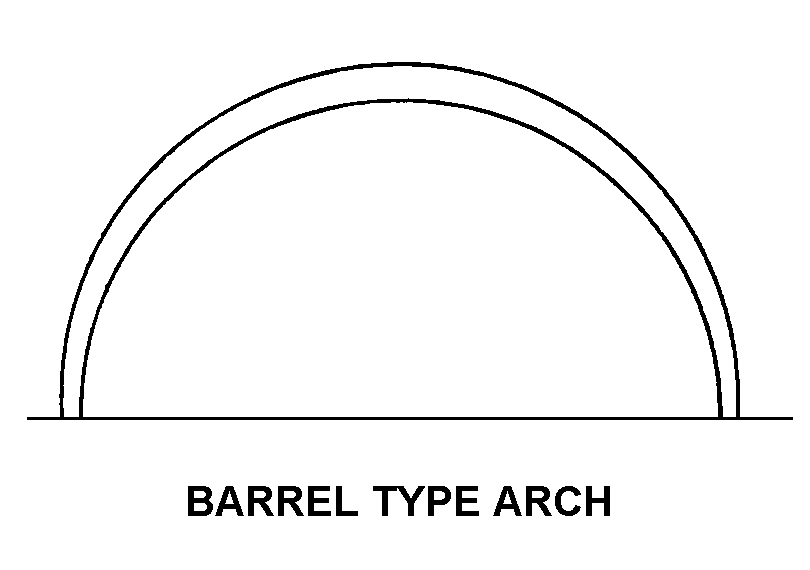

| STYLE DESIGNATOR | A29 BARREL TYPE ARCH |
| PARTIALLY PANELED FEATURE | NOT INCLUDED |
| NOMINAL WIDTH | 25.000 FEET |
| NOMINAL LENGTH | 48.000 FEET |
| CENTER INSIDE CLEARANCE HEIGHT | 12.333 FEET MINIMUM AND 12.666 FEET MAXIMUM |
| ROOF FRAMING MATERIAL | STEEL |
| ROOF MATERIAL | STEEL |
| SIDEWALL FRAMING MATERIAL | STEEL |
| OUTSIDE SIDEWALL MATERIAL | STEEL |
| INSIDE SIDEWALL MATERIAL | STEEL |
| ENDWALL FRAMING MATERIAL | STEEL |
| OUTSIDE ENDWALL MATERIAL | STEEL |
| INSIDE ENDWALL MATERIAL | STEEL |
| FLOOR FRAMING MATERIAL | CONCRETE |
| FLOOR MATERIAL | CONCRETE |
| FOUNDATION POST MATERIAL | STEEL |
| CEILING MATERIAL | STEEL |
| PARTITION MATERIAL | ANY ACCEPTABLE |
| INSULATION LOCATION | UNINSULATED |
| ROOM QUANTITY | 1 |
| DOOR OPENING QUANTITY | 1 |
| DOOR OPENING TYPE | FRAME |
| DOOR OPENING LOCATION | END WALL |
| DOOR OPENING WIDTH | 8.000 FEET NOMINAL |
| DOOR OPENING HEIGHT | 10.000 FEET NOMINAL |
| DOOR TYPE AND QUANTITY | 2 HINGED DOUBLE |
| DOOR LOCATION | END WALL |
| DOOR WIDTH | 4.000 FEET NOMINAL |
| DOOR HEIGHT | 10.000 FEET NOMINAL |
| LOUVER OPENING QUANTITY | 2 |
| LOUVER QUANTITY | 2 |
| VENTILATOR OPENING QUANTITY | 3 |
| VENTILATOR QUANTITY | 3 |
| SPECIAL FEATURES | DESIGNED FOR AMMUNITION STORAGE,DOOR LOUVERS AND VENTILATORS EQUIPPED W/SPARK AND MISSILE SCREENS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-16041 |
Restrictions/Controls & Freight Information | NSN 5410-00-254-4278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 038470 | HOUSES R BUILDINGS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 750 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5410-00-254-4278
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WA | Port Support and Watercraft Equipment |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | H | If condemned or uneconomically repairable, then dispose at Intermediate level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
