NSN 5510-00-274-7432 MML751, MM-L-751, PATTERN8427
Product Details | WOOD MOLDING
5510-00-274-7432 A shaped piece of wood having a plane or curved surface, either sunk or projecting, used for ornamental or other application, either singly or in groups. It does not include wood shapes of ornamental designs used as structural supports, or stress members of a structure.
Part Alternates: MML751, MM-L-751, PATTERN8427, 5510-00-274-7432, 00-274-7432, 5510002747432, 002747432
Lumber, Millwork, Plywood, and Veneer | Lumber and Related Basic Wood Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 55 | 01 JAN 1963 | 00-274-7432 | 03597 ( MOLDING, WOOD ) |
Drawings & Photos | NSN 5510-00-274-7432
Demand History | NSN 5510-00-274-7432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MML751 | 2019-01-04 | 500 | United States |
| MML751 | 2018-07-191 | 3050 | AE |
| MML751 | 2018-07-191 | 3219 | AE |
| MML751 | 2018-07-191 | 3731 | AE |
| MML751 | 2017-04-117 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5510-00-274-7432
Related Products | NSN 5510-00-274-7432
Technical Data | NSN 5510-00-274-7432
| Characteristic | Specifications |
|---|---|
| TYPICAL WOOD PRODUCTS USE | HIGH QUALITY SOFTWOOD FLOORING |
| SPECIES-GRADE AND GRADING ASSOCIATION | REDWOOD CLEAR REDWOOD INSPECTION SERVICE OR PINE, SOUTHERN B AND BETTER SOUTHERN PINE INSPECTION BUREAU OR CEDAR, WESTERN MOULDINGS WEST COAST LUMBER INSPECTION BUREAU OR DOUGLAS FIR MOULDINGS WEST COAST LUMBER INSPECTION BUREAU OR DOUGLAS-FIR, SOUTH, INTERIOR SELECT STRUCTURAL SCAFFOLD PLANK WESTERN WOOD PRODUCTS ASSOCIATION OR FIR, SUBALPINE STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR HEM-FIR STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR HEMLOCK, MOUNTAIN STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR LARCH STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR PINE, IDAHO WHITE STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR PINE, LODGEPOLE STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR PINE, PONDEROSA STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR PINE, SUGAR STANDARD WESTERN WOOD PRODUCTS ASSOCIATION OR SPRUCE, ENGELMANN STANDARD WESTERN WOOD PRODUCTS ASSOCIATION |
| MEASURING METHOD AND LENGTH | 4.000 FEET MINIMUM RANDOM |
| RANDOM LENGTH | 4 FEET AND LONGER,PERMITTING A MAX OF 10 PERCENT OF THE CONTRACT LINE ITEM QTY TO BE FURNISHED IN 4 THRU 7 FT LENGTHS AND REQUIRING A MIN OF 60 PERCENT OF THE ITEM QTY TO BE FURINSHED IN LENGTHS OF 12 FT AND LONGER |
| MOISTURE CONTENT RETENTION PERCENTAGE | 15.0 MINIMUM |

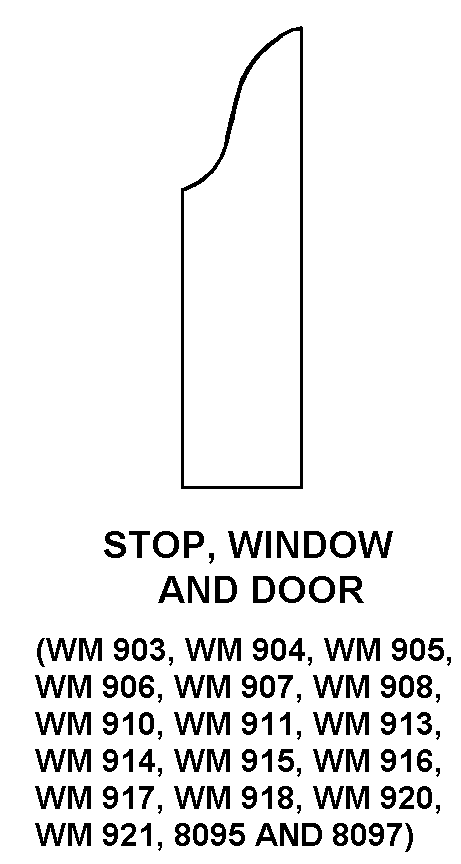

| STYLE DESIGNATOR | 12 STOP, WINDOW AND DOOR |
| WOOD PRODUCERS MOULDING NUMBER | 8427-5/8 X 3/4 |
| III SUPPLEMENTARY FEATURES | TYPICAL USE--FOR INTERIOR AND EXTERIOR TRIM,@UNIT OF ISSUE--FEET |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MM-L-751 |
Restrictions/Controls & Freight Information | NSN 5510-00-274-7432
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 112870 | LUMBER OR WOOD OR PLYWOOD |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 559 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5510-00-274-7432
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
