NSN 5510-00-276-9996 MML751, MM-L-751, 00-276-9996
Product Details | WOOD MOLDING
5510-00-276-9996 A shaped piece of wood having a plane or curved surface, either sunk or projecting, used for ornamental or other application, either singly or in groups. It does not include wood shapes of ornamental designs used as structural supports, or stress members of a structure.
Part Alternates: MML751, MM-L-751, 5510-00-276-9996, 00-276-9996, 5510002769996, 002769996
Lumber, Millwork, Plywood, and Veneer | Lumber and Related Basic Wood Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 55 | 01 JAN 1963 | 00-276-9996 | 03597 ( MOLDING, WOOD ) |
Drawings & Photos | NSN 5510-00-276-9996
Demand History | NSN 5510-00-276-9996
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MML751 | 2019-01-04 | 500 | United States |
| MML751 | 2018-07-191 | 3050 | AE |
| MML751 | 2018-07-191 | 3219 | AE |
| MML751 | 2018-07-191 | 3731 | AE |
| MML751 | 2017-04-117 | 1000 | US |
Cross Reference | NSN 5510-00-276-9996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MM-L-751 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5510-00-276-9996
Technical Data | NSN 5510-00-276-9996
| Characteristic | Specifications |
|---|---|
| TYPICAL WOOD PRODUCTS USE | INTERIOR AND EXTERIOR TRIM |
| SPECIES-GRADE AND GRADING ASSOCIATION | REDWOOD CLEAR REDWOOD INSPECTION SERVICE OR PINE, SOUTHERN B AND BETTER SOUTHERN PINE INSPECTION BUREAU OR CEDAR, WESTERN MOULDINGS WEST COAST LUMBER INSPECTION BUREAU OR DOUGLAS FIR MOULDINGS WEST COAST LUMBER INSPECTION BUREAU OR DOUGLAS-FIR, SOUTH, INTERIOR STANDARD WESTERN WOOD PRODUCTS ASSOCIATION |
| MEASURING METHOD AND LENGTH | 4.000 FEET MINIMUM RANDOM |
| RANDOM LENGTH | 4 FEET AND LONGER,PERMITTING A MAX OF 10 PERCENT OF THE CONTRACT LINE ITEM QTY TO BE FURNISHED IN 4 THRU 7 FT LENGTHS AND REQUIRING A MIN OF 60 PERCENT OF THE ITEM QTY TO B FURNISHED IN LENGTHS OF 12 FT AND LONGER |
| MOISTURE CONTENT RETENTION PERCENTAGE | 15.0 MAXIMUM |

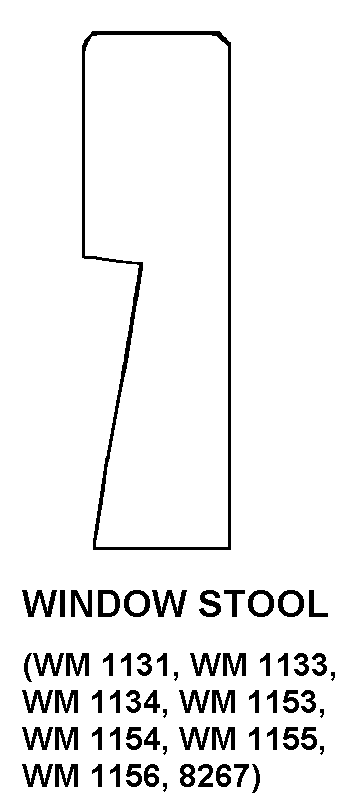

| STYLE DESIGNATOR | 1 WINDOW STOOL |
| WOOD PRODUCERS MOULDING NUMBER | WP1121/8267 |
| III SUPPLEMENTARY FEATURES | TYPICAL USE--FOR INTERIOR AND EXTERIOR TRIM,UNIT OF ISSUE--FOOT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MM-L-751 |
Restrictions/Controls & Freight Information | NSN 5510-00-276-9996
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
