NSN 5680-00-056-4370 EXPANDX, 00-056-4370, 000564370
Product Details | EXPANDED METAL
5680-00-056-4370 A ferrous or nonferrous metal sheet, that has been slit and expanded to form a mesh, which is used for reinforced concrete work or plaster wall construction and also for making grille vents and for such articles as trays where stiffness is needed with light weight.
Part Alternates: EXPANDX, 5680-00-056-4370, 00-056-4370, 5680000564370, 000564370
Construction and Building Materials | Miscellaneous Construction Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 JAN 1963 | 00-056-4370 | 05183 ( METAL, EXPANDED ) |
Drawings & Photos | NSN 5680-00-056-4370
Cross Reference | NSN 5680-00-056-4370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EXPANDX | 61357 | UNITED STATES GYPSUM CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5680-00-056-4370
Technical Data | NSN 5680-00-056-4370
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FABRICATION METHOD | ANY ACCEPTABLE |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| MINIMUM YIELD STRENGTH | NOT RATED |
| LENGTH | 84.000 FEET NOMINAL |

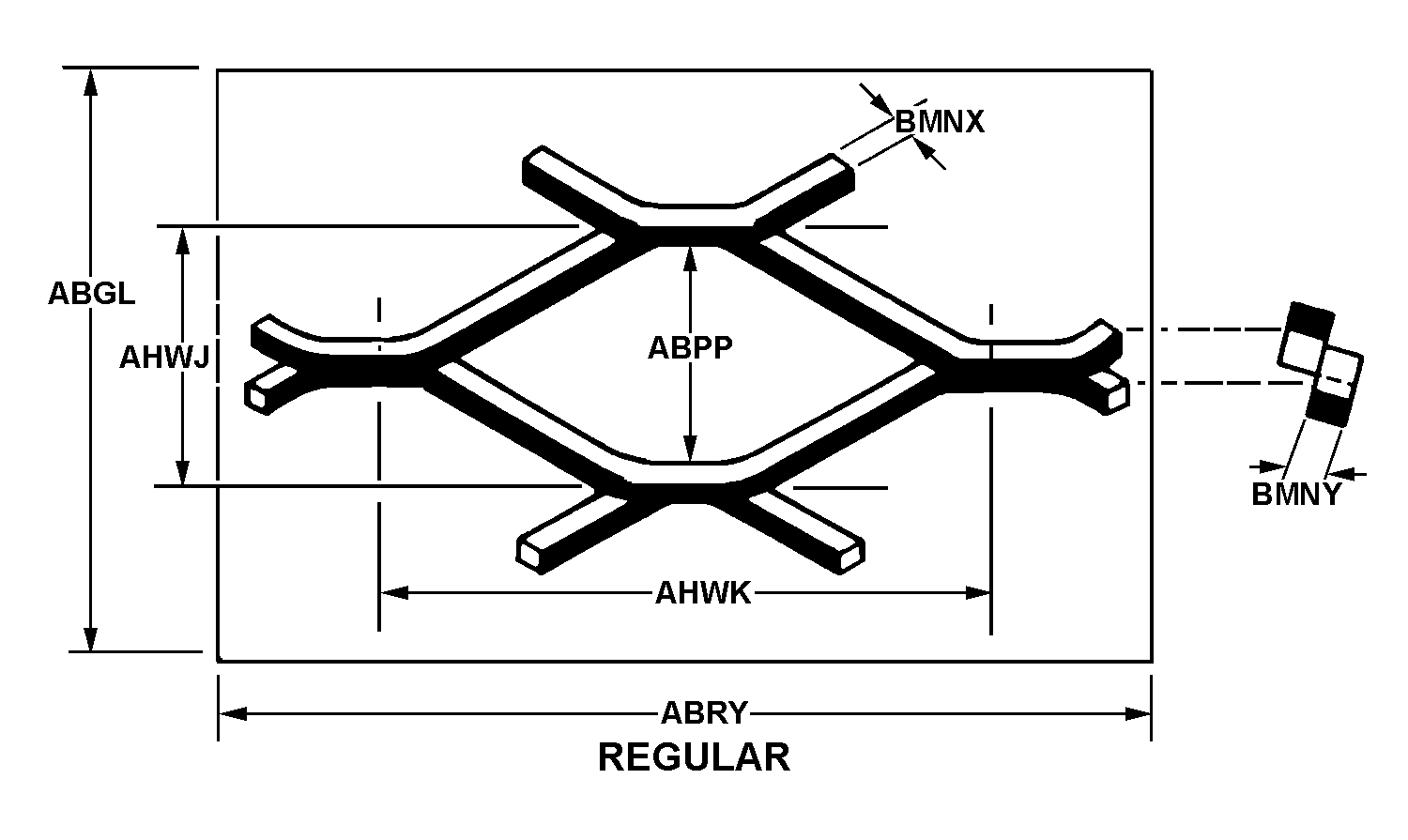

| BASIC SHAPE STYLE | C1 REGULAR |
| WIDTH | 72.000 INCHES NOMINAL |
| OPENING WIDTH | ANY ACCEPTABLE |
| MESH WIDTH | 0.510 INCHES NOMINAL |
| MESH LENGTH | 1.200 INCHES NOMINAL |
| STRAND WIDTH | 0.051 INCHES NOMINAL |
| STRAND THICKNESS | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5680-00-056-4370
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
