NSN 5840-00-026-8786 000268786
Product Details | WAVEGUIDE ASSEMBLY
5840-00-026-8786 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 000268786
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-026-8786 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5840-00-026-8786
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5840-00-026-8786
Technical Data | NSN 5840-00-026-8786
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 1.122 FEET NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 0.900 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.400 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.500 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |

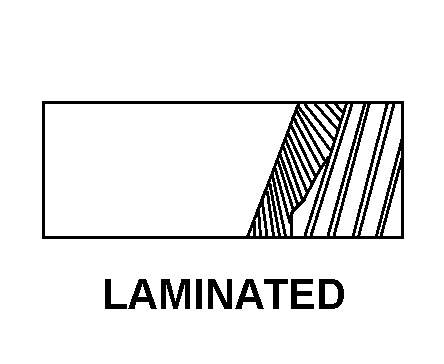

| TUBING WALL CONSTRUCTION STYLE | J2 LAMINATED SINGLE TUBING SEGMENT |
| MATERIAL | METAL NONFERROUS/D SINGLE TUBING SEGMENT COPPER ALLOY ALL FLANGE |
| SURFACE TREATMENT | SILVER SINGLE TUBING SEGMENT INSIDE SURFACES ENAMEL SINGLE TUBING SEGMENT OUTSIDE SURFACES SILVER ALL FLANGE INSIDE SURFACES ENAMEL ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C3 CHOKE TYPE FIRST FLANGE C28 COVER TYPE SECOND FLANGE |
| FLANGE INSIDE WIDTH | 0.900 INCHES NOMINAL FIRST FLANGE 1.062 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE HEIGHT | 0.400 INCHES NOMINAL FIRST FLANGE 0.505 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE WIDTH | 1.640 INCHES NOMINAL FIRST FLANGE 1.625 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.640 INCHES NOMINAL FIRST FLANGE 1.625 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE DIAMETER | 1.422 INCHES NOMINAL FIRST FLANGE |
| FLANGE DEPTH | 0.438 INCHES NOMINAL FIRST FLANGE 0.438 INCHES NOMINAL SECOND FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE FIRST FLANGE SINGLE CONNECTION FACILITY 4 UNTHREADED HOLE SECOND FLANGE SINGLE CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL SECOND FLANGE SINGLE CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC FIRST FLANGE SINGLE CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.164 INCHES FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD CLASS | ANY ACCEPTABLE FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND FIRST FLANGE SINGLE CONNECTION FACILITY |
| MAXIMUM OPERATING PRESSURE | 30.0 POUNDS PER SQUARE INCH GAGE |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | 458276-501 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/59-6 FIRST FLANGE M3922/53-1 SECOND FLANGE |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | FLANGE SURFACE SILVER |
