Product Details | ANTENNA REFLECTOR
5895-00-284-4224 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Part Alternates: 002844224
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-284-4224 | 00244 ( REFLECTOR, ANTENNA ) |
Drawings & Photos | NSN 5895-00-284-4224
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5895-00-284-4224
5895-00-284-4225, 5895-00-284-4835, 5895-00-284-5985, 5895-00-284-6824, 5895-00-285-2212
Technical Data | NSN 5895-00-284-4224
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |

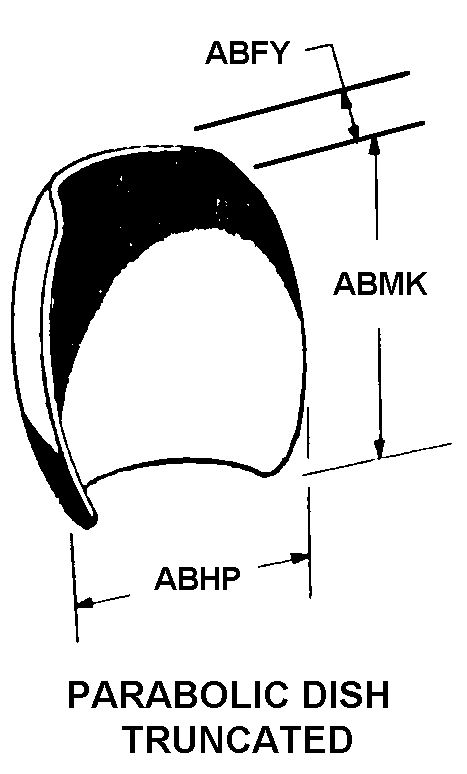

| STYLE DESIGNATOR | 2B PARABOLIC DISH TRUNCATED |
| OVERALL DEPTH | 11.260 INCHES NOMINAL |
| OVERALL LENGTH | 1.026 FEET NOMINAL |
| OVERALL WIDTH | 1.443 FEET NOMINAL |
| SPECIAL FEATURES | TWENTY 0.180 IN DIA. AND TWELVE 0.610 IN DIA MTG HOLES REGULARLYSPACED ON BASES OF REFLECTORS AND BRACES |
Restrictions/Controls & Freight Information | NSN 5895-00-284-4224
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
