NSN 5905-00-100-8831 00-100-8831, 001008831
Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-100-8831 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: 5905-00-100-8831, 00-100-8831, 5905001008831, 001008831
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-100-8831 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |
Drawings & Photos | NSN 5905-00-100-8831
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-100-8831
Technical Data | NSN 5905-00-100-8831
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 0.220 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 0.500 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 20.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 100.0 |
| INCLOSURE METHOD | ENCAPSULATED |

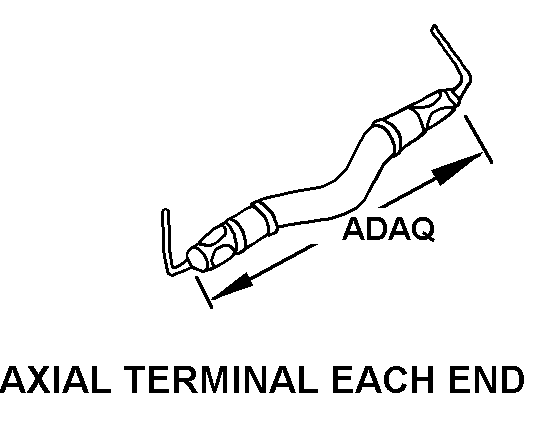

| STYLE DESIGNATOR | 10 AXIAL TERMINAL EACH END |
| BODY DIAMETER | ANY ACCEPTABLE |
| BODY LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-00-100-8831
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
