NSN 5905-00-101-0746 MFA505, MILR29, MIL-R-29
Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-101-0746 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: MFA505, MILR29, MIL-R-29, 023-000392, 2801121P1, 280-1121P1, 5905-00-101-0746, 00-101-0746, 5905001010746, 023000392, 001010746
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-101-0746 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |

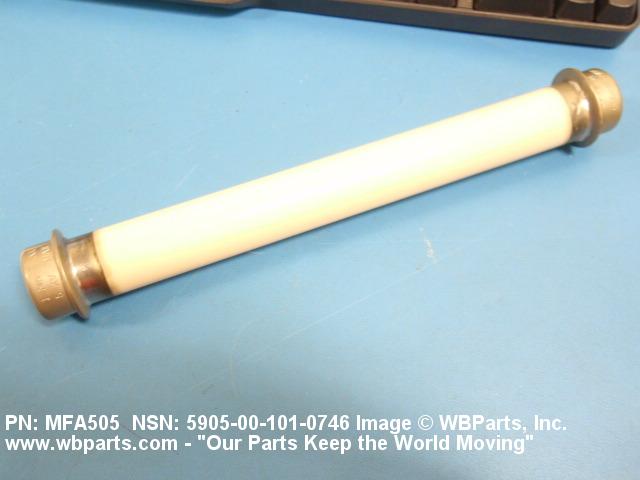

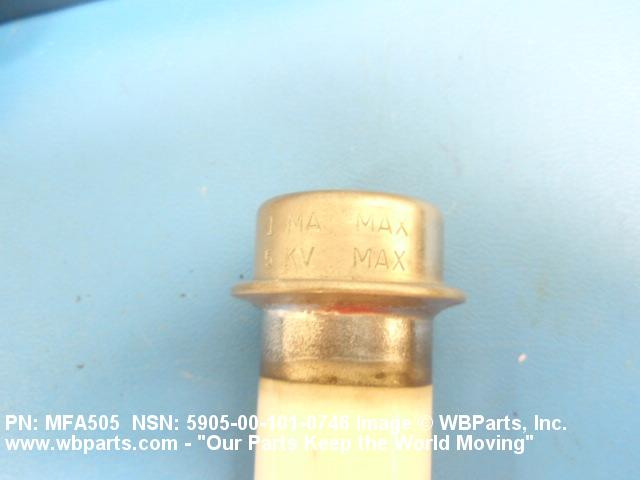

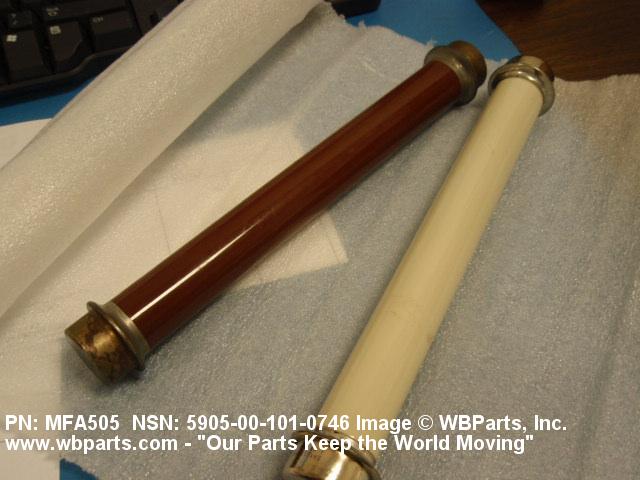

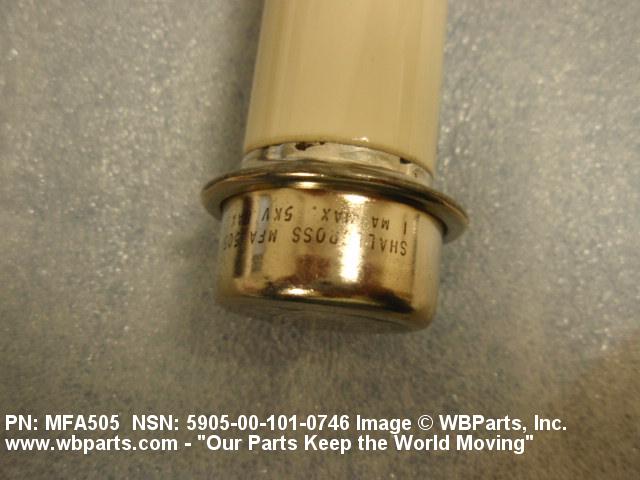

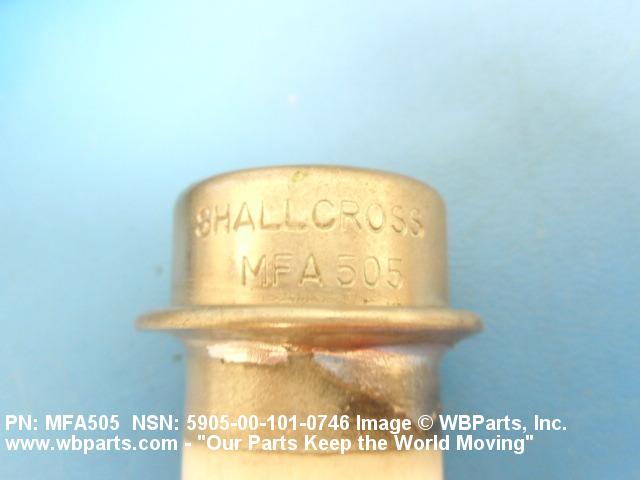

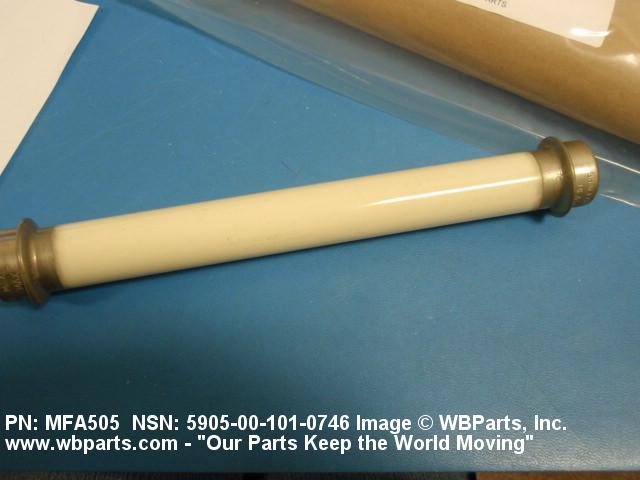

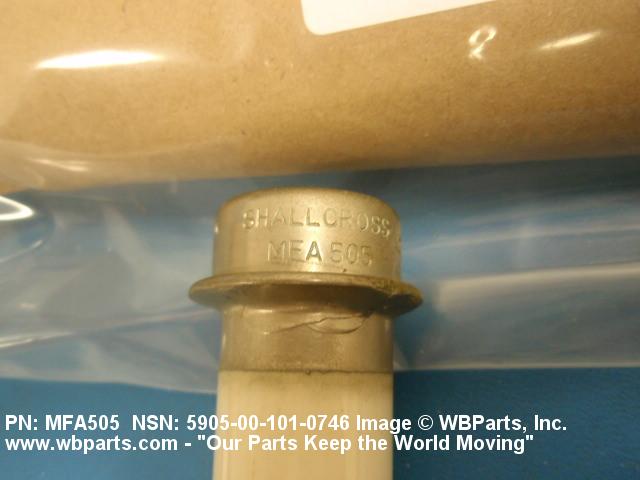

Drawings & Photos | NSN 5905-00-101-0746
Demand History | NSN 5905-00-101-0746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-101-0746 | 2019-01-24 | 4 | DIBBS |
| 5905-00-101-0746 | 2017-03-61 | 5 | DIBBS |
| 5905-00-101-0746 | 2015-06-174 | 8 | DIBBS |
| 5905-00-101-0746 | 2015-04-91 | 2 | DIBBS |
| 5905-00-101-0746 | 2015-02-57 | 1 | DIBBS |
| 5905-00-101-0746 | 2011-04-93 | 2 | DIBBS |
| 5905-00-101-0746 | 2009-12-352 | 2 | DIBBS |
| 5905-00-101-0746 | 2009-11-306 | 1 | DIBBS |
| 5905-00-101-0746 | 2009-05-146 | 1 | DIBBS |
| 5905-00-101-0746 | 2009-02-45 | 2 | DIBBS |
| 5905-00-101-0746 | 2009-02-34 | 9 | United States |
| 5905-00-101-0746 | 2009-01-27 | 4 | DIBBS |
| 5905-00-101-0746 | 2009-01-27 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-101-0746
Technical Data | NSN 5905-00-101-0746
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 5.000 MEGOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -0.500 TO 0.500 |
| POWER DISSIPATION RATING IN WATTS | 5.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 85.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 110.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -50.0 TO 200.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 110.0 |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 26 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 1.375 INCHES MINIMUM AND 1.407 INCHES MAXIMUM |
| BODY LENGTH | 9.750 INCHES MINIMUM AND 9.812 INCHES MAXIMUM |
| TERMINAL TYPE | FERRULE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-R-29 SPECIFICATION |
| (NON-CORE DATA) CUBIC MEASURE | 14.817 CUBIC INCHES |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MFA505 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-29 |
Restrictions/Controls & Freight Information | NSN 5905-00-101-0746
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
