NSN 5905-00-114-2672 7683027002, 768-3027-002, 00-114-2672
Product Details | THERMAL RESISTOR
5905-00-114-2672 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 7683027002, 768-3027-002, 5905-00-114-2672, 00-114-2672, 5905001142672, 001142672
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 SEP 1968 | 00-114-2672 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-114-2672
Cross Reference | NSN 5905-00-114-2672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 768-3027-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-114-2672
Technical Data | NSN 5905-00-114-2672
| Characteristic | Specifications |
|---|---|

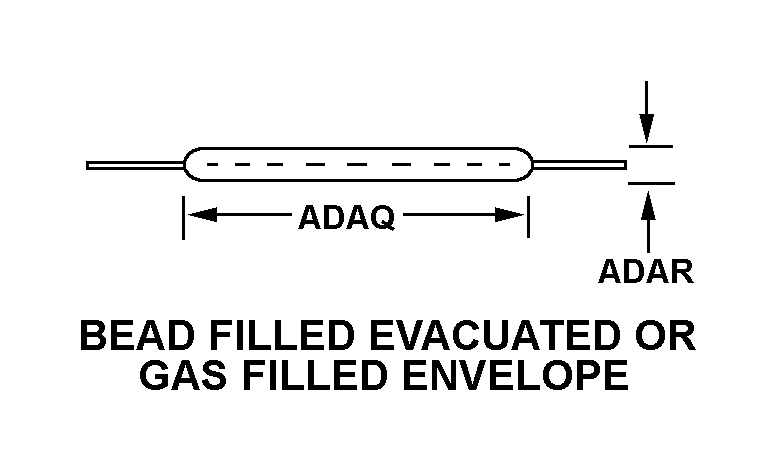

| STYLE DESIGNATOR | 5 BEAD TYPE EVACUATED OR GAS FILLED ENVELOPE |
| BODY LENGTH | 0.658 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.170 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.063 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 0.170 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 768-3027-002 |
Restrictions/Controls & Freight Information | NSN 5905-00-114-2672
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
