NSN 5905-00-145-6658 11207132-3, 9RT1A7, 00-145-6658
Product Details | THERMAL RESISTOR
5905-00-145-6658 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 11207132-3, 9RT1A7, 5905-00-145-6658, 00-145-6658, 5905001456658, 112071323, 001456658
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 SEP 1971 | 00-145-6658 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-145-6658
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-145-6658
Related Products | NSN 5905-00-145-6658
Technical Data | NSN 5905-00-145-6658
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 4.150 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| MAXIMUM OPERATING TEMP | 150.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 150.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 55.0 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | 0.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT 50.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT 75.0 DEG CELSIUS 3RD RESISTANCE-TEMPERATURE POINT 100.0 DEG CELSIUS 4TH RESISTANCE-TEMPERATURE POINT 125.0 DEG CELSIUS 5TH RESISTANCE-TEMPERATURE POINT 150.0 DEG CELSIUS 6TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 10.0 OHMS 1ST RESISTANCE-TEMPERATURE POINT 4.0 OHMS 2ND RESISTANCE-TEMPERATURE POINT 1.0 OHMS 3RD RESISTANCE-TEMPERATURE POINT 0.8 OHMS 4TH RESISTANCE-TEMPERATURE POINT 0.4 OHMS 5TH RESISTANCE-TEMPERATURE POINT 0.2 OHMS 6TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -15.0 TO 15.0 ALL RESISTANCE-TEMPERATURE POINTS |

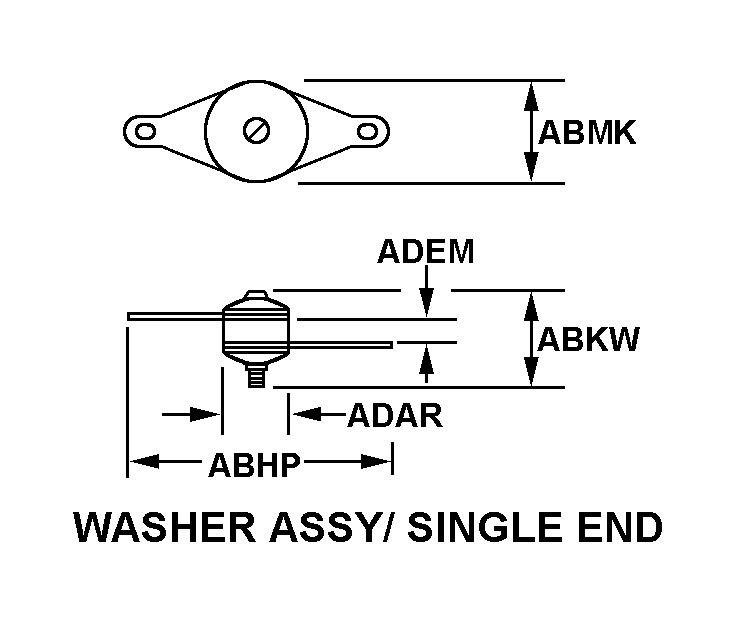

| STYLE DESIGNATOR | 25 WASHER ASSY/SINGLE END |
| OVERALL LENGTH | 2.120 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.740 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.740 INCHES NOMINAL |
| WASHER THICKNESS | 0.140 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.190 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| INCLOSURE TYPE | UNINCLOSED |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 17773 |
| DESIGN CONTROL REFERENCE | 11207132-3 |
