NSN 5905-00-154-2961 K1024, 21876131, 2187613-1
Product Details | THERMAL RESISTOR
5905-00-154-2961 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: K1024, 21876131, 2187613-1, 5905-00-154-2961, 00-154-2961, 5905001542961, 001542961
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 OCT 1971 | 00-154-2961 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-154-2961
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-154-2961
Technical Data | NSN 5905-00-154-2961
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 15.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -1.0 TO 1.0 |
| AMBIENT TEMP AT FULL RATED POWER | 25.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 100.0 DEG CELSIUS |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 1.9 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | 32.0 DEG FAHRENHEIT 1ST RESISTANCE-TEMPERATURE POINT 57.0 DEG FAHRENHEIT 2ND RESISTANCE-TEMPERATURE POINT 97.0 DEG FAHRENHEIT 3RD RESISTANCE-TEMPERATURE POINT 127.0 DEG FAHRENHEIT 4TH RESISTANCE-TEMPERATURE POINT 162.0 DEG FAHRENHEIT 5TH RESISTANCE-TEMPERATURE POINT 212.0 DEG FAHRENHEIT 6TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 44.5 KILOHMS 1ST RESISTANCE-TEMPERATURE POINT 23.9 KILOHMS 2ND RESISTANCE-TEMPERATURE POINT 9.7 KILOHMS 3RD RESISTANCE-TEMPERATURE POINT 5.3 KILOHMS 4TH RESISTANCE-TEMPERATURE POINT 2.8 KILOHMS 5TH RESISTANCE-TEMPERATURE POINT 1.2 KILOHMS 6TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -15.0 TO 15.0 ALL RESISTANCE-TEMPERATURE POINTS |

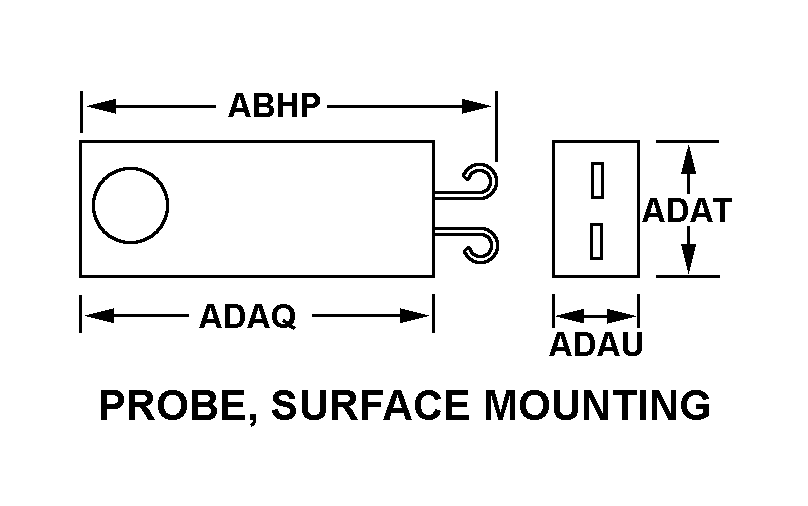

| STYLE DESIGNATOR | 29 PROBE, SURFACE MOUNTING |
| OVERALL LENGTH | ANY ACCEPTABLE |
| BODY LENGTH | 0.750 INCHES NOMINAL |
| BODY WIDTH | 0.281 INCHES NOMINAL |
| BODY HEIGHT | 0.188 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 49671-2187613 DRAWING |
