5905-00-165-3235 - RESISTOR ASSEMBLY, LMFL2210, LMFL2-210, 11608358

Product Details | RESISTOR ASSEMBLY

5905-00-165-3235 Two or more individual fixed, variable, thermal, or adjustable resistors on a common mounting or mounted on each other. The resistors must be separable and each must be capable of functioning in accordance with its applicable item name. For variable resistors mounted in tandem with a common or dual concentric shaft, see RESISTOR, VARIABLE (as modified) and ATTENUATOR, VARIABLE. For inseparable resistors permanently cased, sealed or potted together to form a multisection unit, see RESISTOR ASSORTMENT; RESISTOR SET, MATCHED; and items which have wire leads temporarily twisted together, or are otherwise physically attached solely for convenience in handling or shipping.

Part Alternates: LMFL2210, LMFL2-210, 11608358, 2339140, 23391-40, 5905-00-165-3235, 00-165-3235, 5905001653235 , 001653235

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 JAN 1972	00-165-3235	00487 ( RESISTOR ASSEMBLY )

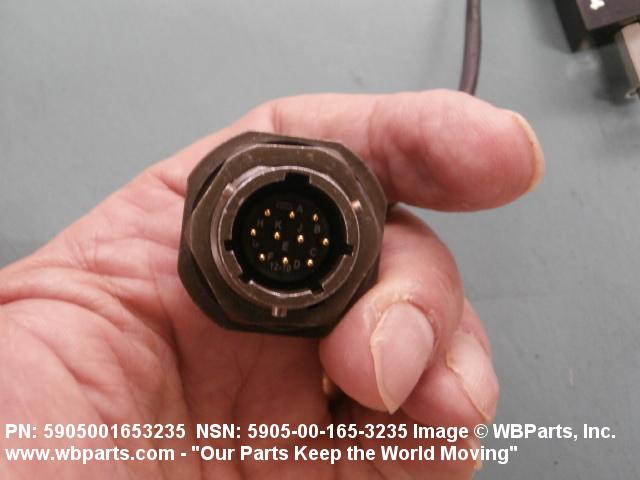

Drawings & Photos | NSN 5905-00-165-3235

Part Number	Request Date	QTY	Origin
5905-00-165-3235	2022-09-15	1	United States
5905-00-165-3235	2021-10-06	25	DIBBS
5905-00-165-3235	2020-12-02	10	DIBBS
5905-00-165-3235	2018-09-23	14	DIBBS
5905-00-165-3235	2018-08-19	2	DIBBS
5905-00-165-3235	2018-08-18	2	DIBBS
5905-00-165-3235	2018-08-13	14	DIBBS
5905-00-165-3235	2017-08-31	35	DIBBS
5905-00-165-3235	2017-02-21	30	DIBBS
5905-00-165-3235	2016-10-26	5	DIBBS
5905-00-165-3235	2016-08-23	40	DIBBS
5905-00-165-3235	2016-02-02	27	US
5905-00-165-3235	2015-12-23	28	DIBBS
5905-00-165-3235	2014-01-16	3	DIBBS
11608358	2014-01-06	8	Turkey
5905-00-165-3235	2014-01-03	9	Turkey
11608358	2014-01-02	8	Turkey
11608358	2013-12-19	8	TR
5905-00-165-3235	2013-11-24	1	DIBBS
5905-00-165-3235	2013-11-24	1	DIBBS
5905-00-165-3235	2013-11-24	18	DIBBS
5905-00-165-3235	2011-10-25	42	South Korea
5905-00-165-3235	2007-02-20	100	US
5905-00-165-3235	2007-02-12	76	DIBBS

Cross Reference | NSN 5905-00-165-3235

Part Number	Cage Code	Manufacturer
11608358	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
23391-40	04454	SENSOR SYSTEMS, L.L.C.
23391-40	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
LMFL2-210	08815	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5905-00-165-3235

Compare

Related Products | NSN 5905-00-165-3235

5905-00-165-3236, 5905-00-165-3237, 5905-00-165-3238, 5905-00-165-3239, 5905-00-165-3240

Technical Data | NSN 5905-00-165-3235

Characteristic	Specifications
ASSEMBLY CONSTRUCTION METHOD	ENCASED IN POTTING COMPOUND
COMPONENT RELATIONSHIP	UNCONNECTED MATCHED PAIR
COMPONENT QUANTITY	2
COMPONENT NAME	RESISTOR,ADJUSTABLE
COMPONENT CONTROLLING AGENCY	U.S.ARMY TANK AUTOMOTIVE CENTER
COMPONENT IDENTIFYING NUMBER	11608358-1 DRAWING NO.
ELECTRICAL RESISTANCE	5.0 KILOHMS
RESISTANCE TOLERANCE IN PERCENT	-10.0 TO 10.0
RESISTOR POWER DISSIPATION RATING IN WATTS	0.5
ELECTRICAL CONNECTION METHOD	PARALLEL
TERMINAL QUANTITY	1
TERMINAL TYPE	CONNECTOR
MOUNTING METHOD	THROUGH HOLE
MOUNTING CONFIGURATION	0.191 IN. MIN,0.196 IN. MAX. HOLE DIA,HOLE CENTERED PARALLEL TO LGAND W THRU TOP
OVERALL LENGTH	2.874 INCHES NOMINAL
OVERALL HEIGHT	0.537 INCHES MINIMUM AND 0.562 INCHES MAXIMUM
OVERALL WIDTH	1.750 INCHES MAXIMUM
MANUFACTURERS CODE	19207
DESIGN CONTROL REFERENCE	11608358

Restrictions/Controls & Freight Information | NSN 5905-00-165-3235

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062960	REOSTATS/PARTS NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5905-00-165-3235

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
85.33	- Electrical resistors (including rheostats and potentiometers), other than heating resistors; parts thereof:
8533.10	- - Fixed carbon resistors, composition or film types:
	- - - Designed for surface mounting (SMD) by contact:
8533.10.0020	- - - - Having more than two terminals (resistor networks)	No.
8533.10.0042	- - - - Having two terminals	No.
8533.10.0057	- - - Having more than two leads (resistor networks)	No.
8533.10.0070	- - - Having two leads	No.
	- - Other fixed resistors:
8533.21	- - - For a power handling capacity not exceeding 20 W:
	- - - - Designed for surface mounting (SMD) by contact:
8533.21.0025	- - - - - Having more than two terminals (resistor networks)	No.
8533.21.0045	- - - - - Having two terminals	No.
8533.21.0075	- - - - Having more than two leads (resistor networks)	No.
	- - - - Other:
8533.21.0080	- - - - - Wirewound	No.
8533.21.0090	- - - - - Other (including metal film, metal oxide and thick cement film)	No.
8533.29.0000	- - - Other	No.
	- - Wirewound variable resistors, including rheostats and potentiometers:
8533.31.0000	- - - For a power handling capacity not exceeding 20 W	No.
8533.39	- - - Other:
8533.39.0040	- - - - Dimmers	No.
8533.39.0080	- - - - Other	No.
8533.40	- - Other variable resistors, including rheostats and potentiometers:
8533.40.0040	- - - Rheostat or resistor type motor starters and controllers	No.
8533.40.0080	- - - Other	No.
8533.90.0000	- - Parts	X
