NSN 5905-00-245-3718 D9421137M1PC9B, D942-1-137M1PC9B, D942137M3PC11A
Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-245-3718 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: D9421137M1PC9B, D942-1-137M1PC9B, D942137M3PC11A, D942-1-37M3PC11A, E9421124M2PC7B, E942-1-124M2PC7B, F9421131M9PC5C, F942-1-131M9PC5C, F9421138M5PC4A, F942-1-138M5PC4A, F9421153M3PC7A, F942-1-153M3PC7A, F9421156M3PC4B, F942-1-156M3PC4B, G3AL140, MILR15109, MIL-R-15109, 11003H5631, 11003H56-31, 11003H56A31, 203988, 3315944PC5A, 3315944PC6C, 3318740PC4B, 3318742PC5D, 3318869PC4C, 3318870PC6G, 57494, 57-49-4, 999146X1PC8C, 999-1-46X1PC8C, 5905-00-245-3718, 00-245-3718, 5905002453718, 002453718
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-245-3718 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |

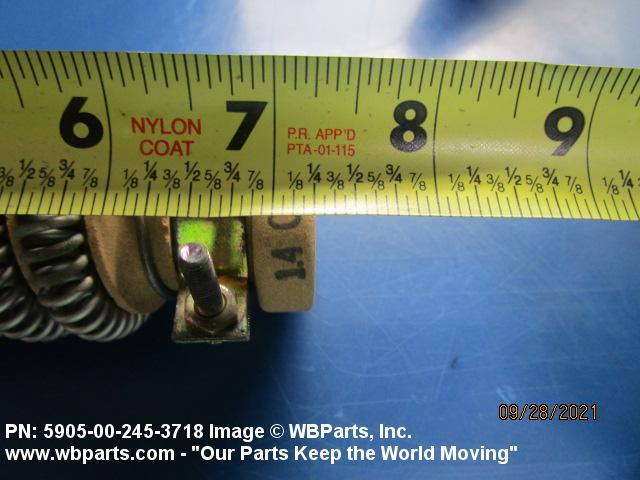

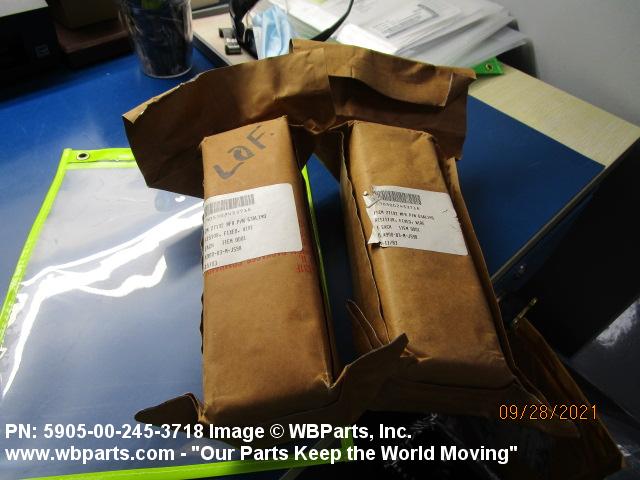

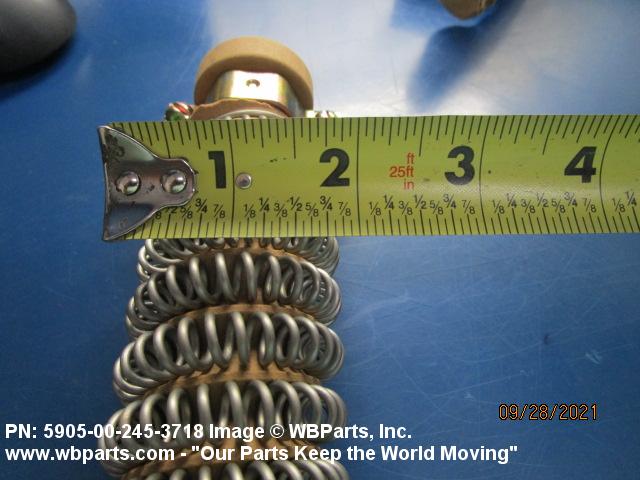

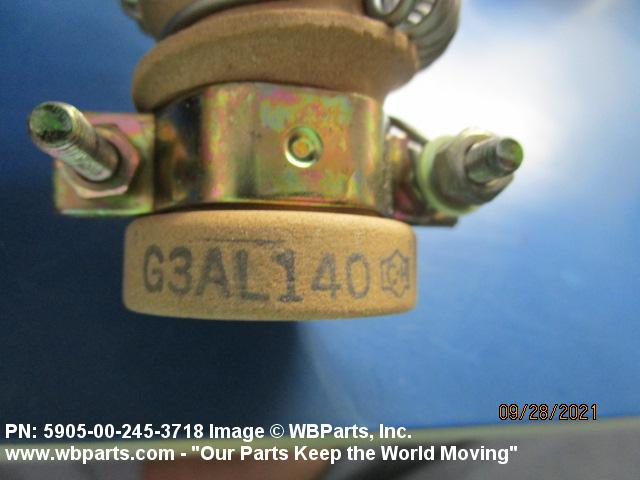

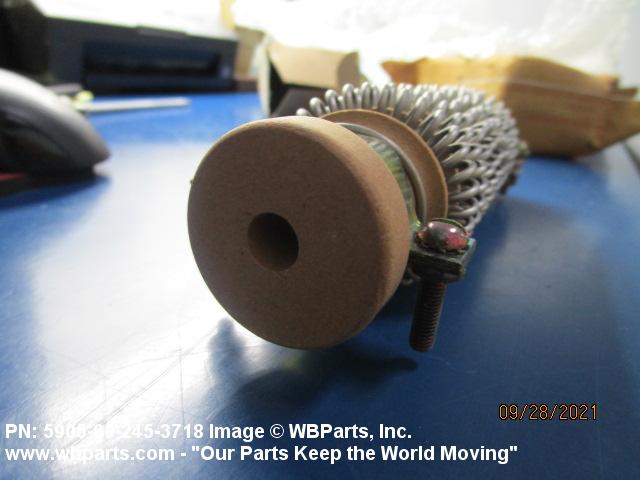

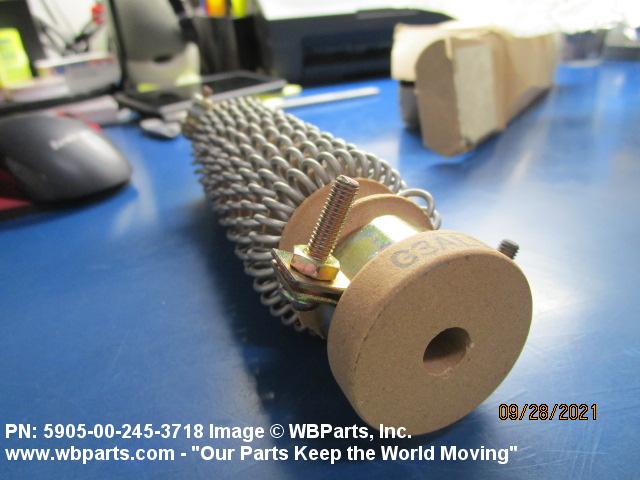

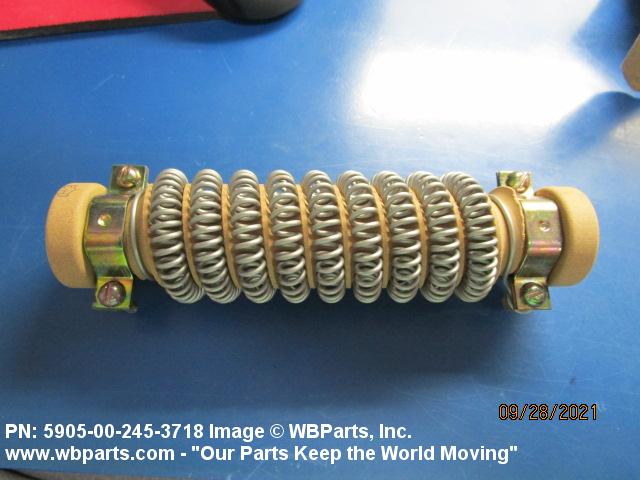

Drawings & Photos | NSN 5905-00-245-3718
Demand History | NSN 5905-00-245-3718
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-245-3718 | 2023-01-05 | 6 | DIBBS |
| 5905-00-245-3718 | 2021-09-259 | 2 | United States |
| 5905-00-245-3718 | 2021-08-236 | 22 | DIBBS |
| 5905-00-245-3718 | 2021-01-07 | 21 | DIBBS |
Cross Reference | NSN 5905-00-245-3718
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11003H56-31 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 11003H56A31 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 203988 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 3315944PC5A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3315944PC6C | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3318740PC4B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3318742PC5D | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3318869PC4C | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3318870PC6G | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 57-49-4 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 999-1-46X1PC8C | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| D942-1-137M1PC9B | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| D942-1-37M3PC11A | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| E942-1-124M2PC7B | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| F942-1-131M9PC5C | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| F942-1-138M5PC4A | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| F942-1-153M3PC7A | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| F942-1-156M3PC4B | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| G3AL140 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| MIL-R-15109 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-245-3718
Technical Data | NSN 5905-00-245-3718
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.400 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | 290.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 50.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 425.0 |
| INCLOSURE METHOD | UNINCLOSED |
| STYLE DESIGNATOR | 141 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 7.375 INCHES NOMINAL |
| TERMINAL TYPE | TERMINAL TYPE PER BODY STYLE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-R-15109 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-15109 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | EW FORM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-15109 |
Restrictions/Controls & Freight Information | NSN 5905-00-245-3718
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-245-3718
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
