Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-252-1318 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: B1620030000, B162003-0000 , B914304 , HP2800, HP50822677, HP5082-2677 , HP50822800, HP5082-2800 , HP822800, HP82-2800 , HP828908, HP82-8908 , HPA50822800, HPA5082-2800 , S116687, S11-6687, VA7000361, VA70-0036-1 , Y5017 , P58005773003, P58-005773-003 , 41145-106-5 , 415/4/02868/000 , 415402868000, 415-9-98532 , 4200557801, 4809243, 480924-3 , 48P16044A001P, 48P16044A-001P , 5L.5532.102.36 , 5L553210236, 60006206, 600062-06 , 6191741, 619174-1 , 7011453P033, 77PR1003, 77PR100K, 822800, 82-2800 , 888871 , 89WHR100K, 12057-0001 , 1544001001, 154-4001-001 , 1775020, 177-5020 , 1913055001, 1-913055-001 , 2000668001, 20-00668-001 , 004087 , 10658317, 269959-001 , 2800 , 32 869-001 , 32869001, 41145106005, 41145-106-00-5 , 499-042-095 , 505106, 505-106 , 50822677, 5082-2677 , 50822800, 5082-2800 , 50822883, 5082-2883 , 50828906, 5082-8906 , 5117851, 511785-1 , 5334741, 533474-1 , 53CSD53003AAZ , 2461340001, 246134-0001 , 913055-001 , 5905-00-252-1318, 00-252-1318, 5905002521318, 002521318, 120570001, 411451065, 200328000 , 913055001, 499042095, 415998532, 269959001
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 FEB 1969 | 00-252-1318 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-252-1318
Demand History | NSN 5905-00-252-1318
Cross Reference | NSN 5905-00-252-1318
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7011453P033 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 77PR1003 | 73138 | BI TECHNOLOGIES CORPORATION |
| 77PR100K | 73138 | BI TECHNOLOGIES CORPORATION |
| 89WHR100K | 73138 | BI TECHNOLOGIES CORPORATION |
| S11-6687 | 54418 | MILTOPE CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-00-252-1318
5905-00-252-1319, 5905-00-252-1413, 5905-00-252-1539, 5905-00-252-1549, 5905-00-252-1555
Technical Data | NSN 5905-00-252-1318
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 100.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -250.0 TO 0.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.75 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 25.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 105.0 SINGLE SECTION |

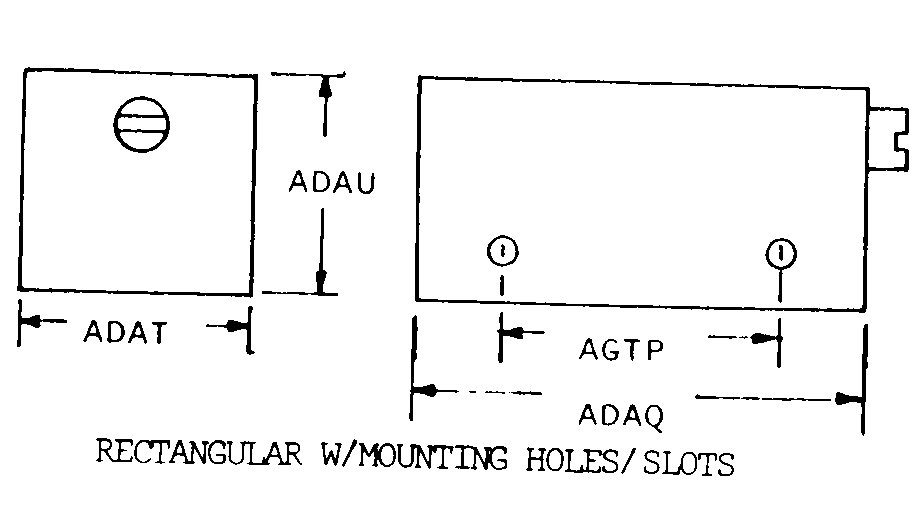

| BODY STYLE | 26B RECTANGULAR W/MOUNTING HOLES/SLOTS |
| BODY LENGTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |
| BODY WIDTH | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| BODY HEIGHT | 0.345 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.675 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.090 INCHES MINIMUM AND 0.1110 INCHES MAXIMUM |
| SHAFT LENGTH | 0.045 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| CONTACT ARM ELECTRICAL OFF POSITION | FULLY CCW |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.200 INCHES NOMINAL |
| TERMINAL LENGTH | 0.185 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| TERMINAL LOCATION | LOWER ADJACENT SIDE TWO ROWS |
| CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS | 0.200 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 0.780 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| III OVERALL HEIGHT | 0.520 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| III OVERALL WIDTH | 0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5905-00-252-1318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-252-1318
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
