NSN 5905-00-257-6545 SCC67301, GA51314, L474
Product Details | THERMAL RESISTOR
5905-00-257-6545 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: SCC67301, GA51314, L474, G113, 5905-00-257-6545, 00-257-6545, 5905002576545, 002576545
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-257-6545 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-257-6545
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-257-6545
Related Products | NSN 5905-00-257-6545
Technical Data | NSN 5905-00-257-6545
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 110.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -20.0 TO 20.0 |

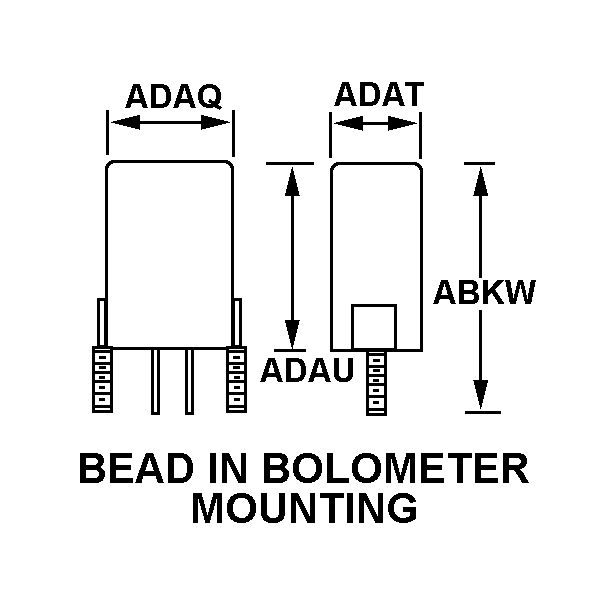

| STYLE DESIGNATOR | 10 BEAD IN BOLOMETER MOUNTING |
| OVERALL HEIGHT | 3.625 INCHES MAXIMUM |
| BODY LENGTH | 1.062 INCHES NOMINAL |
| BODY WIDTH | 1.531 INCHES MAXIMUM |
| BODY HEIGHT | 3.000 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.164 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.000 INCHES NOMINAL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| TERMINAL LENGTH | 0.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.085 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III MAXIMUM CURRENT RATING | 20.00 MILLIAMPERES |
