Product Details | COMPOSITION FIXED RESISTOR
5905-00-272-6983 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: FBF100, 1007, 5905-00-272-6983, 00-272-6983, 5905002726983, 002726983
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-6983 | 00126 ( RESISTOR, FIXED, COMPOSITION ) |
Drawings & Photos | NSN 5905-00-272-6983
Demand History | NSN 5905-00-272-6983
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5905-00-272-6983
Related Products | NSN 5905-00-272-6983
5905-00-272-6988, 5905-00-272-6997, 5905-00-272-6998, 5905-00-272-6999, 5905-00-272-7010
Technical Data | NSN 5905-00-272-6983
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 25.000 MEGOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 1.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | NOT RATED |
| INCLOSURE METHOD | UNINCLOSED |

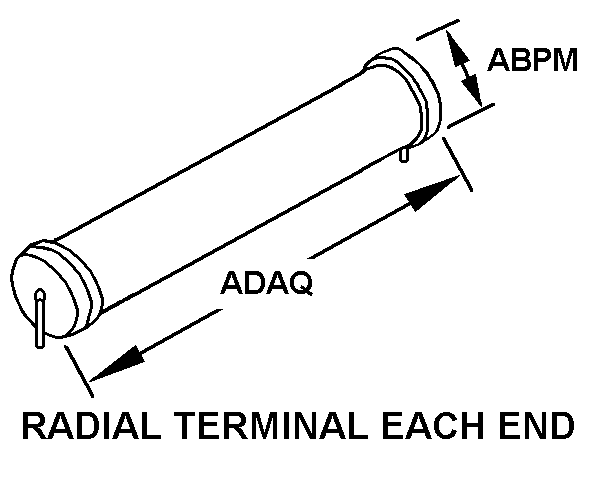

| STYLE DESIGNATOR | 102 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 0.312 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
