NSN 5905-00-401-7432 MK2 100K 0HMS, MK2100K0HMS, A3AA55385

Product Details | FILM FIXED RESISTOR

5905-00-401-7432 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.

Part Alternates: MK2 100K 0HMS, MK2100K0HMS, A3AA55385, A3AA55-385, B95223A953M1, B95223-A953-M1, C552385, C55-2-385, CCH1003F, CRB1/4FY100K, CRB14FY100K, EE441003, LVT5211.16-076374, LVT521116076374, MIL-R-55182/1, MILR551821, P325008202, RCR05G821K, RN55C1003, RN55C1003F, RN55C1003FM, RN55D1003F, RNC55C1072FR, RNC55H1003FG, RNC55H1003FM, RNC55H1003FP, RNC55H1003FR, RNC55H1003FS, RNR55D1003FP, RNR55H1003FP, RNR55H1003FS, 224807-319, 011003, 10052481, 10052-481, 10143-1003, 102525, 16565711, 165657-11, 24748-1003, 287990033272, 287-990033-272, 4110259, 411-0259 , 41513 26100, 4151326100, 4431402385, 443-1402-385, 4431512225, 443-1512-225, 5382657318, 538265-7318, 5E4720/05-1003, 5E4720051003, 6045684, 604-5684, 6080910002, 608-09-10002, 61031000, 6-103100-0, 6147W22P501, 6EM100K0, 7051439800, 705-1439-800, 7240632210, 724-0632-210, 9372206100, 937-220-6100, 9442051003, 944205-1003, 5905-00-401-7432, 00-401-7432, 5905004017432, 224807319, 101431003, 004017432, 247481003

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 APR 1970	00-401-7432	05311 ( RESISTOR, FIXED, FILM )

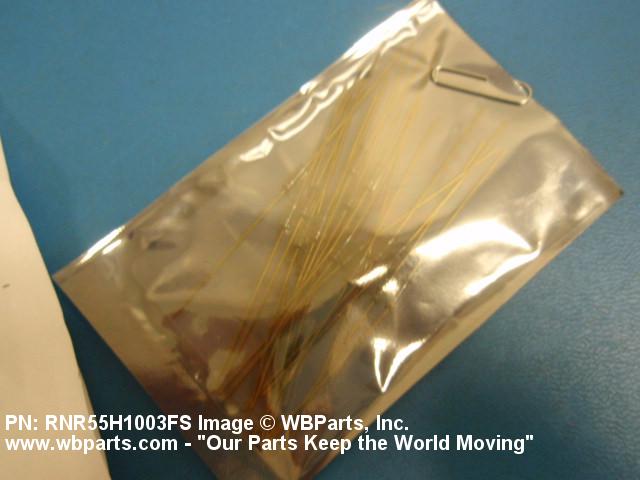

Drawings & Photos | NSN 5905-00-401-7432

Part Number	Request Date	QTY	Origin
RNC55H1003FS	2023-11-317	1	US
5905-00-401-7432	2015-01-23	500	US
RNC55H1003FS	2013-04-98	605	Korea
RNR55H1003FS	2011-03-77	30	Australia
RNR55H1003FS	2009-10-275	20	Australia
RNR55H1003FS	2009-09-247	20	Australia
5905-00-401-7432	2009-09-245	5	India
5905-00-401-7432	2009-03-61	54300	DIBBS

Cross Reference | NSN 5905-00-401-7432

Part Number	Cage Code	Manufacturer
011003	34280	WAVETEK RF PRODUCTS INC
10052-481	0A2J2	ELPAZ INSTRUMENTS INC
10143-1003	80031	MEPCO/ELECTRA INC
102525	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
165657-11	35351	GE AVIATION SYSTEMS LLC
224807-319	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
24748-1003	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
287-990033-272	38753	CMC ELECTRONICS INC
41513 26100	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
443-1402-385	94756	BOEING COMPANY, THE DBA BOEING
443-1512-225	94756	BOEING COMPANY, THE DBA BOEING
538265-7318	96214	RAYTHEON COMPANY DBA RAYTHEON
5E4720/05-1003	73030	HAMILTON SUNDSTRAND CORPORATION
6-103100-0	24856	ECTRON CORPORATION
604-5684	05083	BACHARACH, INC.
608-09-10002	06141	L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION
6147W22P501	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
6EM100K0	56289	SPRAGUE ELECTRIC CO WORLD HQS
705-1439-800	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
724-0632-210	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
937-220-6100	75042	TRW INC TRW ELECTRONIC COMPONENTS
937-220-6100	80031	MEPCO/ELECTRA INC
937-220-6100	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
944205-1003	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
A3AA55-385	64537	AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI
B95223-A953-M1	C4751	EPCOS AG
B95223-A953-M1	D1180	EPCOS AG ABT. PR ROE K PM
C55-2-385	17745	VISHAY ANGSTROHM PRECISION INC DBA VISHAY ANGSTROHM
CCH1003F	01121	ROCKWELL AUTOMATION, INC.
CRB1/4FY100K	57668	R-OHM CORP
EE441003	75042	TRW INC TRW ELECTRONIC COMPONENTS
LVT5211.16-076374	D0078	DIEHL BGT DEFENCE GMBH & CO. KG
MIL-R-55182/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MK2 100K 0HMS	52763	STETTNER ELECTRONICS INC
P325008202	16786	F E L CORP
RCR05G821K	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RN55C1003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RN55C1003F	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RN55C1003F	91637	VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE
RN55C1003FM	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RN55D1003F	13859	KING NUTRONICS CORPORATION
RNC55C1072FR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FG	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FM	24546	DALE ELECTRONICS INC A VISHAY INTERTECHOLOGY INC CO
RNC55H1003FM	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FS	01121	ROCKWELL AUTOMATION, INC.
RNC55H1003FS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNC55H1003FS	91637	VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE
RNR55D1003FP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNR55H1003FP	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RNR55H1003FS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
