NSN 5905-00-671-2409 ES728, 00-671-2409, 006712409
Product Details | THERMAL RESISTOR
5905-00-671-2409 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: ES728, 5905-00-671-2409, 00-671-2409, 5905006712409, 006712409
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-671-2409 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-671-2409
Cross Reference | NSN 5905-00-671-2409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ES728 | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-671-2409
Related Products | NSN 5905-00-671-2409
Technical Data | NSN 5905-00-671-2409
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 492.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -5.0 TO 5.0 |
| MAXIMUM POWER DISSIPATION RATING | 2.50 WATTS |
| AMBIENT TEMP AT FULL RATED POWER | 125.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 200.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 50.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 5.5 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | -21.5 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT 37.8 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 246.0 OHMS 1ST RESISTANCE-TEMPERATURE POINT 946.0 OHMS 2ND RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -5.0 TO 5.0 ALL RESISTANCE-TEMPERATURE POINTS |

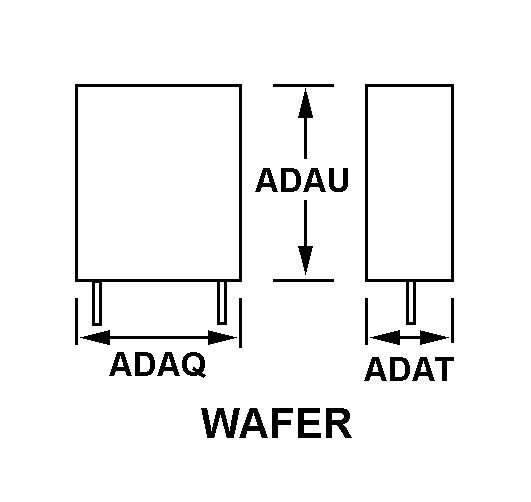

| STYLE DESIGNATOR | 47 WAFER |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.188 INCHES NOMINAL |
| BODY HEIGHT | 0.375 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III REFERENCE TEMP IN DEG CELSIUS | 25.0 |
| III MAXIMUM CURRENT RATING | 25.00 AMPERES |
