NSN 5905-00-681-9046 0550F, 763F, 00-681-9046
Product Details | THERMAL RESISTOR
5905-00-681-9046 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 0550F, 763F, 5905-00-681-9046, 00-681-9046, 5905006819046, 006819046
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-681-9046 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-681-9046
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-681-9046
Technical Data | NSN 5905-00-681-9046
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 60.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| MAXIMUM POWER DISSIPATION RATING | 1.00 WATTS |
| AMBIENT TEMP AT FULL RATED POWER | 125.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 200.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 50.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 5.5 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | -16.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT -10.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 45.3 KILOHMS 1ST RESISTANCE-TEMPERATURE POINT 45.1 KILOHMS 2ND RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -10.0 TO 10.0 ALL RESISTANCE-TEMPERATURE POINTS |

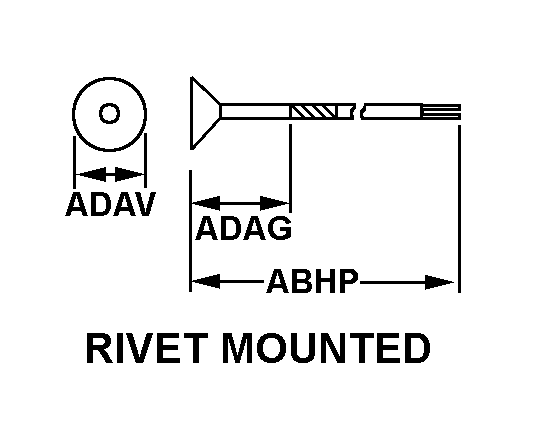

| STYLE DESIGNATOR | 57 RIVET MOUNTED |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| OVERALL DIAMETER | 0.125 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III REFERENCE TEMP IN DEG CELSIUS | 25.0 |
| III MAXIMUM CURRENT RATING | 25.00 AMPERES |
Restrictions/Controls & Freight Information | NSN 5905-00-681-9046
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
