Product Details | THERMAL RESISTOR
5905-00-701-0032 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: SMB416982, 719299-018, 45B1, 5905-00-701-0032, 00-701-0032, 5905007010032, 007010032, 719299018
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-701-0032 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-701-0032
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-701-0032
Related Products | NSN 5905-00-701-0032
Technical Data | NSN 5905-00-701-0032
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 50.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -40.0 TO 40.0 |
| AMBIENT TEMP AT FULL RATED POWER | 25.0 DEG CELSIUS |
| MAXIMUM OPERATING TEMP | 150.0 DEG CELSIUS |
| THERMAL TIME CONSTANT IN SECONDS | 2.0 |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 0.5 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | -50.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT -25.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT 0.0 DEG CELSIUS 3RD RESISTANCE-TEMPERATURE POINT 25.0 DEG CELSIUS 4TH RESISTANCE-TEMPERATURE POINT 50.0 DEG CELSIUS 5TH RESISTANCE-TEMPERATURE POINT 75.0 DEG CELSIUS 6TH RESISTANCE-TEMPERATURE POINT 100.0 DEG CELSIUS 7TH RESISTANCE-TEMPERATURE POINT 125.0 DEG CELSIUS 8TH RESISTANCE-TEMPERATURE POINT 150.0 DEG CELSIUS 9TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 3.0 MEGOHMS 1ST RESISTANCE-TEMPERATURE POINT 1.3 MEGOHMS 2ND RESISTANCE-TEMPERATURE POINT 160.0 KILOHMS 3RD RESISTANCE-TEMPERATURE POINT 50.0 KILOHMS 4TH RESISTANCE-TEMPERATURE POINT 19.0 KILOHMS 5TH RESISTANCE-TEMPERATURE POINT 8.0 KILOHMS 6TH RESISTANCE-TEMPERATURE POINT 3.5 KILOHMS 7TH RESISTANCE-TEMPERATURE POINT 1.8 KILOHMS 8TH RESISTANCE-TEMPERATURE POINT 950.0 OHMS 9TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -40.0 TO 40.0 ALL RESISTANCE-TEMPERATURE POINTS |

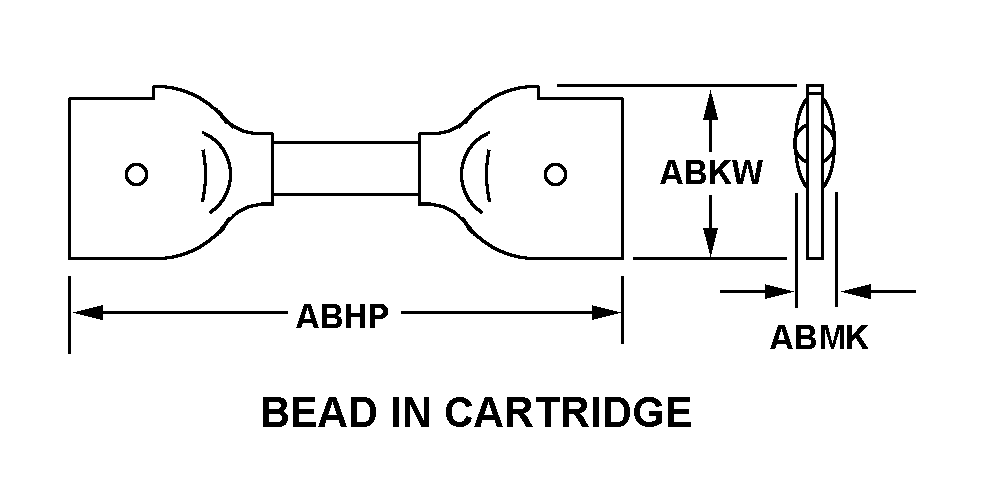

| STYLE DESIGNATOR | 9 BEAD IN CARTRIDGE |
| OVERALL LENGTH | 1.250 INCHES MINIMUM AND 1.370 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.340 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 KNIFE BLADE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
