5905-00-701-9508 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: F15290, F15-290 , 21W1, 5905-00-701-9508, 00-701-9508, 5905007019508, 007019508
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-701-9508 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-701-9508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-701-9508
Technical Data | NSN 5905-00-701-9508

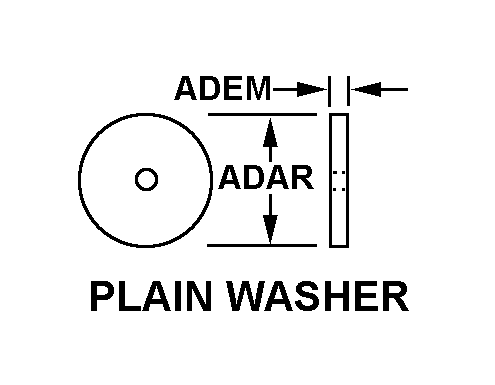

| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 100.000 OHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| MAXIMUM OPERATING TEMP | 150.0 DEG CELSIUS |
| POWER DISSIPATION CONSTANT IN MILLIWATTS PER DEG CELSIUS | 790.0 |
| ZERO POWER TEMP COEFFICIENT OF RESISTANCE IN PERCENT PER DEG CELSIUS | -4.40 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | 0.0 DEG CELSIUS 1ST RESISTANCE-TEMPERATURE POINT 50.0 DEG CELSIUS 2ND RESISTANCE-TEMPERATURE POINT 75.0 DEG CELSIUS 3RD RESISTANCE-TEMPERATURE POINT 100.0 DEG CELSIUS 4TH RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 325.0 OHMS 1ST RESISTANCE-TEMPERATURE POINT 35.5 OHMS 2ND RESISTANCE-TEMPERATURE POINT 15.0 OHMS 3RD RESISTANCE-TEMPERATURE POINT 6.8 OHMS 4TH RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -10.0 TO 10.0 ALL RESISTANCE-TEMPERATURE POINTS |
| STYLE DESIGNATOR | 23 PLAIN WASHER |
| BODY OUTSIDE DIAMETER | 0.770 INCHES NOMINAL |
| WASHER THICKNESS | 0.046 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 SURFACE CONTACT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III REFERENCE TEMP IN DEG CELSIUS | 25.0 |
| MANUFACTURERS CODE | 83186 |
| DESIGN CONTROL REFERENCE | 21W1 |
