Product Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-755-0828 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Part Alternates: ST18S180A, ST18-S180A, 134WS214, 28W82046, 28W8-2046, 9175347, 5905-00-755-0828, 00-755-0828, 5905007550828, 007550828
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-755-0828 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |

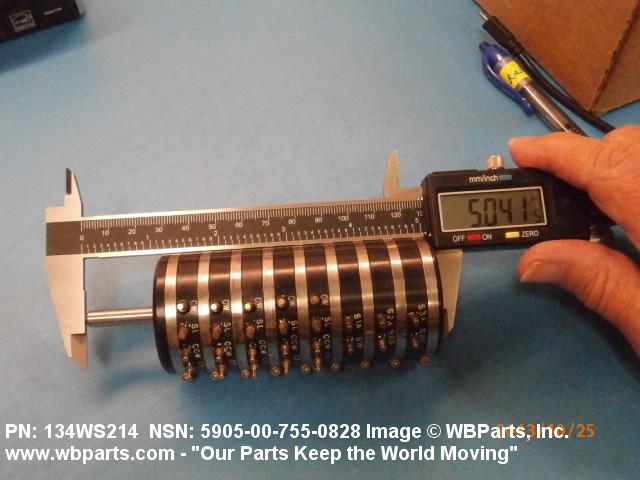

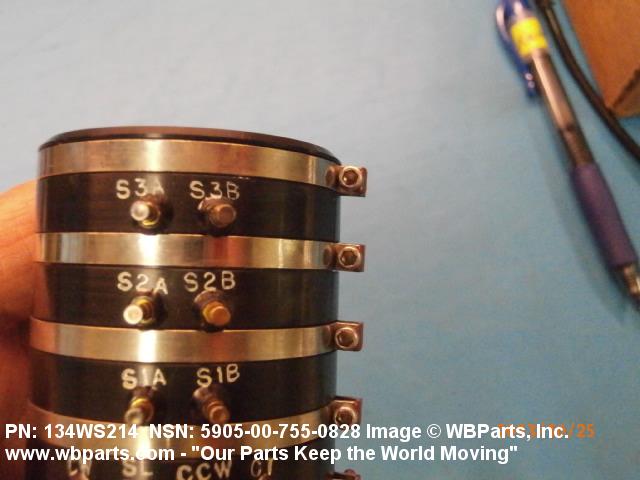

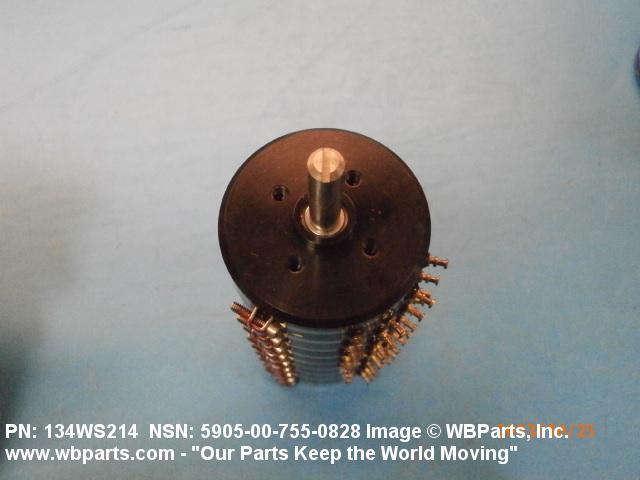

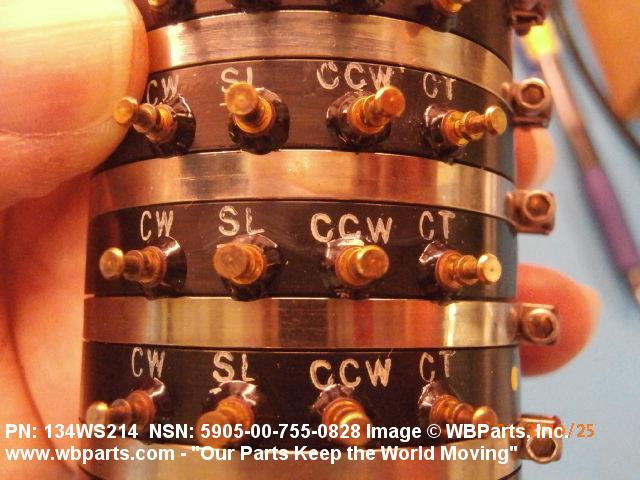

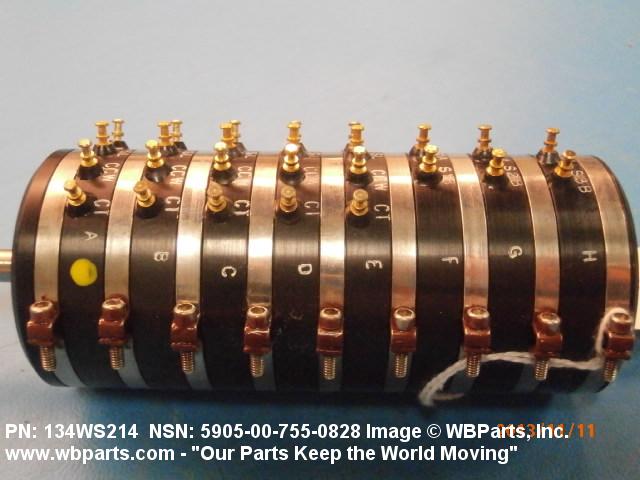

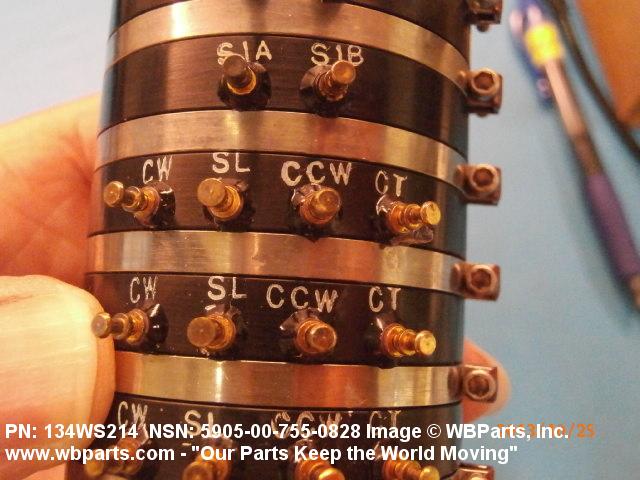

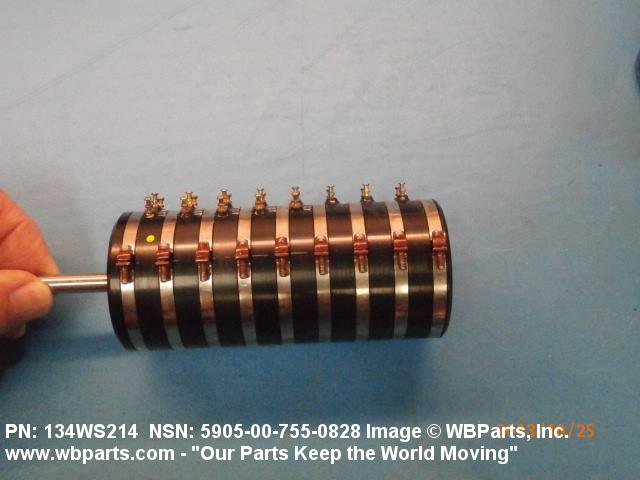

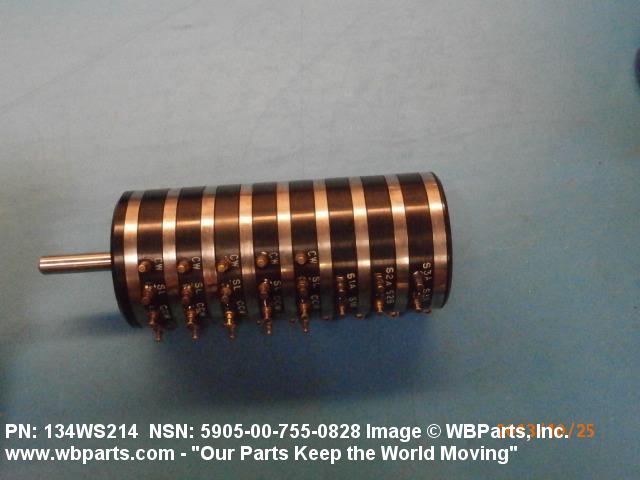

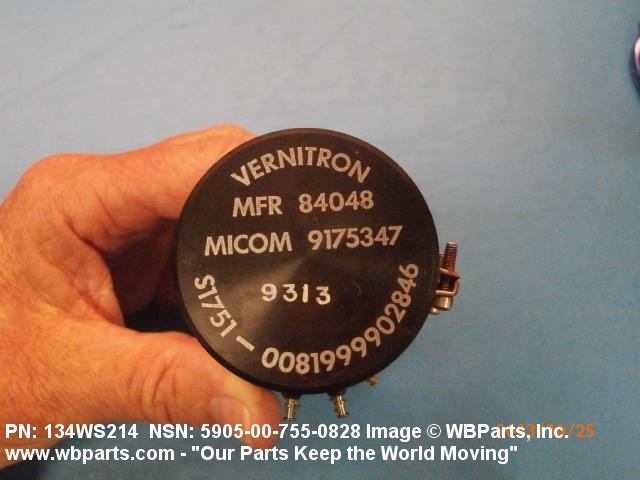

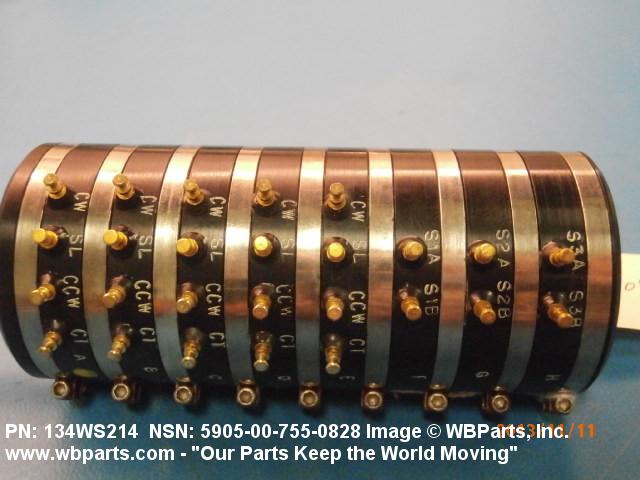

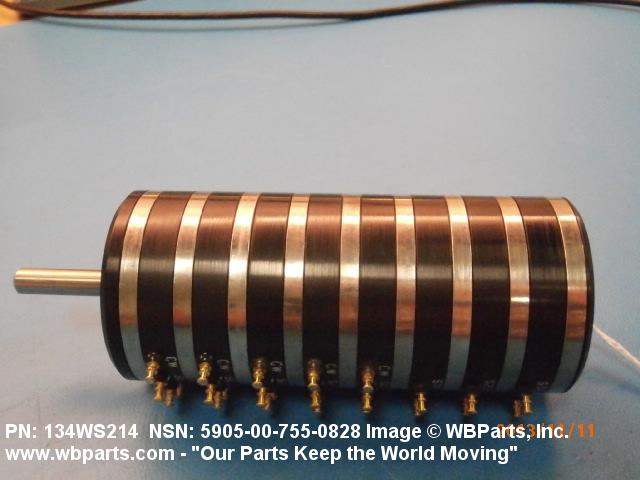

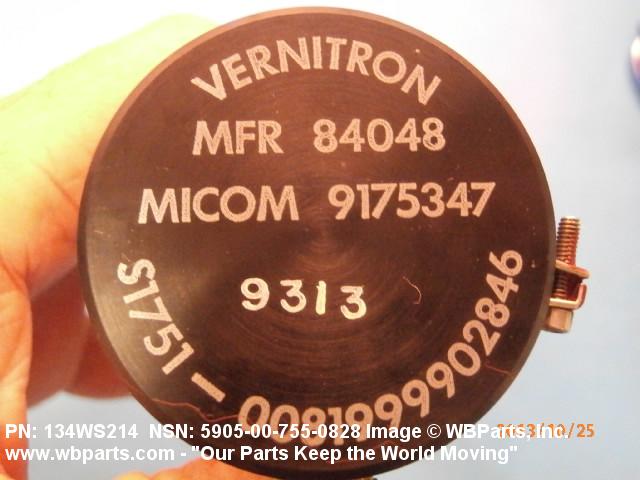

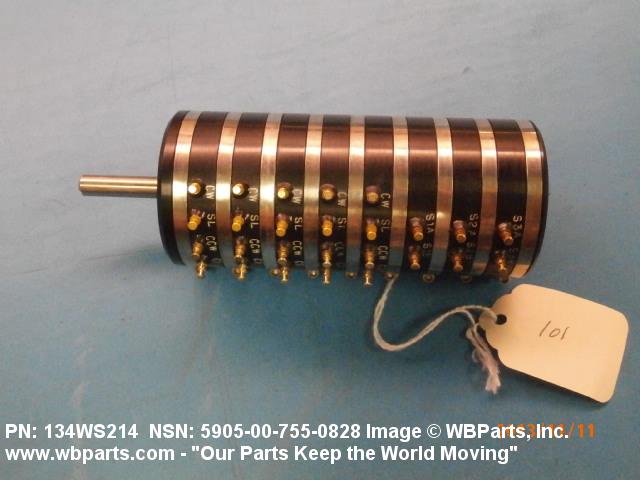

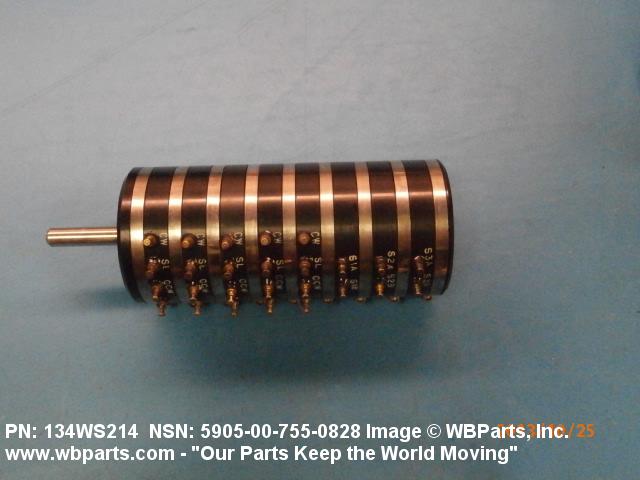

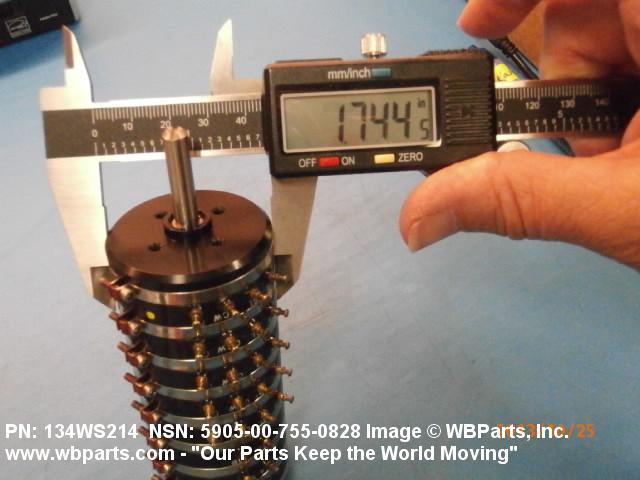

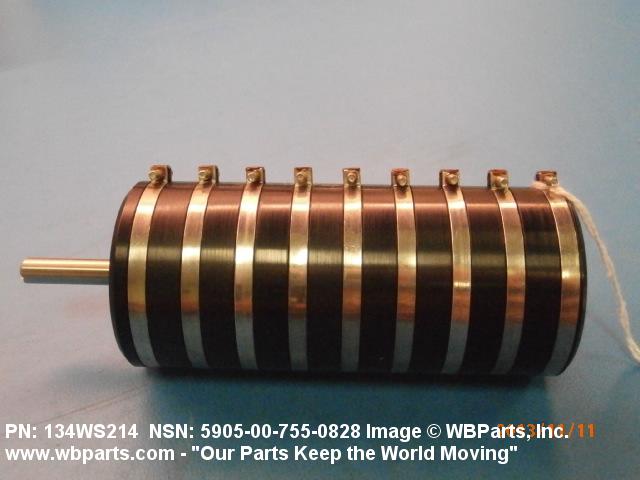

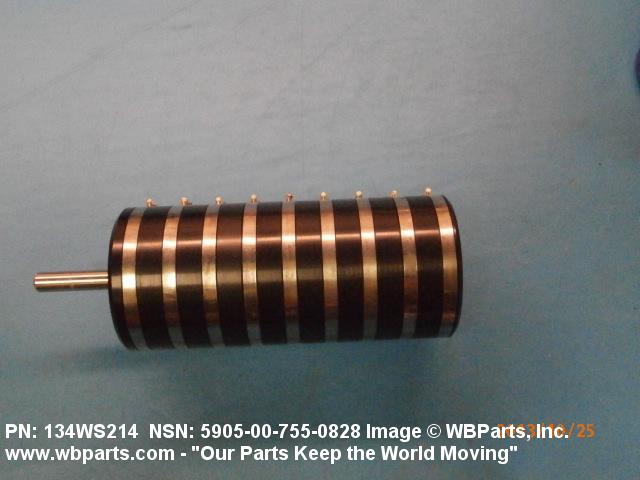

Drawings & Photos | NSN 5905-00-755-0828
Demand History | NSN 5905-00-755-0828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9175347 | 2015-04-09 | 10 | CN |
| 5905-00-755-0828 | 2013-10-18 | 15 | United States |
| 5905-00-755-0828 | 2013-09-23 | 15 | United States |
| 5905-00-755-0828 | 2013-07-25 | 15 | MANUAL |
| 9175347 | 2013-07-25 | 15 | US |
| 5905-00-755-0828 | 2012-12-20 | 15 | United States |
| 5905-00-755-0828 | 2012-12-20 | 15 | United States |
| 5905-00-755-0828 | 2012-12-20 | 15 | United States |
| 5905-00-755-0828 | 2008-02-07 | 15 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5905-00-755-0828
Related Products | NSN 5905-00-755-0828
5905-00-755-0832, 5905-00-755-0834, 5905-00-755-0836, 5905-00-755-0840, 5905-00-755-0841
Technical Data | NSN 5905-00-755-0828
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 5 |
| ELECTRICAL RESISTANCE PER SECTION | 50.000 KILOHMS 1ST SECTION 80.000 KILOHMS 2ND SECTION 80.000 KILOHMS 3RD SECTION 4.000 KILOHMS 4TH SECTION 4.000 KILOHMS 5TH SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 ALL SECTIONS |
| FUNCTION CONFORMITY PER SECTION | ALL SECTIONS TERMINAL BASE LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | ALL SECTIONS LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.30 TO 0.30 ALL SECTIONS |
| SHAFT RUNOUT | 0.001 INCHES |
| SHAFT BEARING TYPE | BALL |
| MAXIMUM STARTING TORQUE | 6.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 4.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO 20.0 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 85.0 ALL SECTIONS |
| FIXED TAP QUANTITY PER SECTION | 1 1ST SECTION 1 2ND SECTION 1 3RD SECTION 1 4TH SECTION 1 5TH SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN OHMS | 25000.0 1ST SECTION 40000.0 2ND SECTION 40000.0 3RD SECTION 2000.0 4TH SECTION 2000.0 5TH SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN DEG OF EFFECTIVE ELECTRICAL ROTATION | 175.0 ALL SECTIONS |

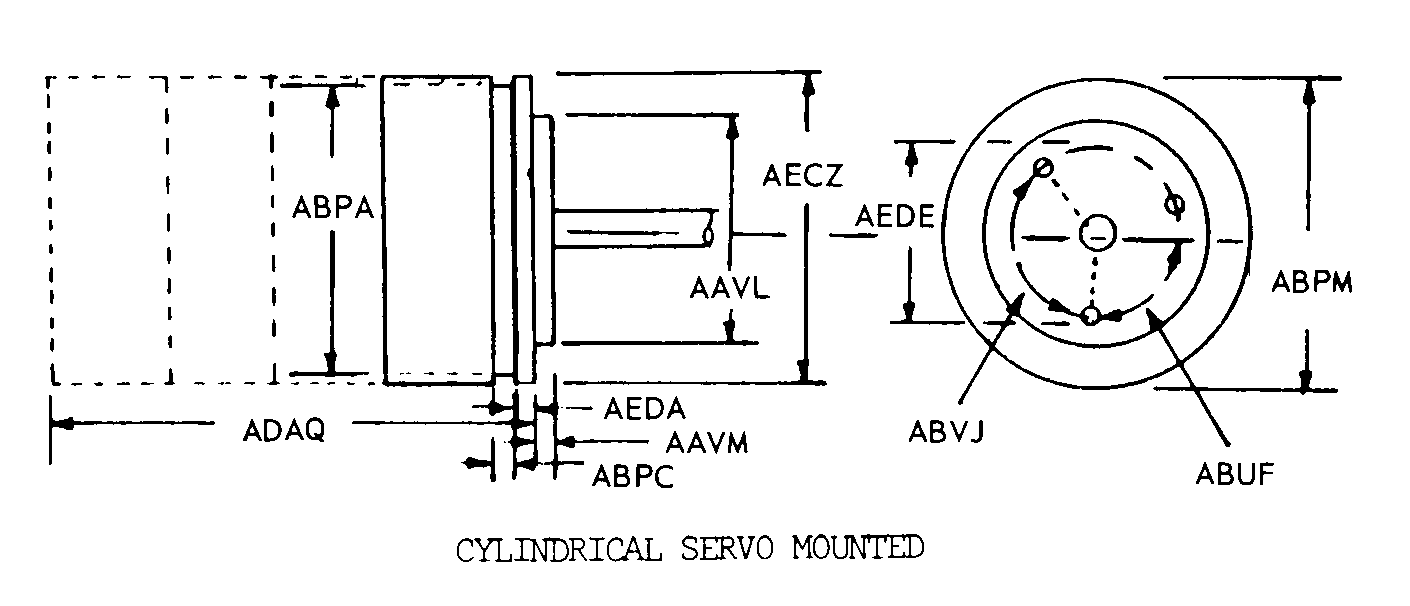

| BODY STYLE | 4B CYLINDRICAL SERVO MOUNTED |

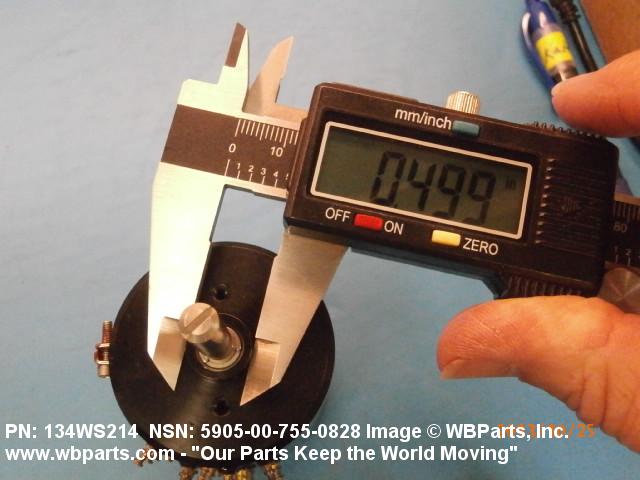

| PILOT DIAMETER | 0.4950 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM |
| PILOT LENGTH | 0.1250 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.750 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0730 INCHES NOMINAL |

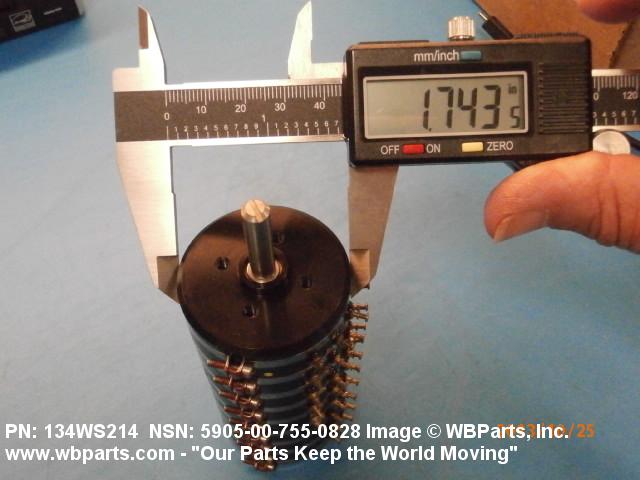

| BODY DIAMETER | 1.755 INCHES MAXIMUM |
| BODY LENGTH | 4.219 INCHES MAXIMUM |
| MOUNTING LIP DIAMETER | 2.0620 INCHES MAXIMUM |
| MOUNTING LIP DEPTH | 0.0930 INCHES NOMINAL |
| ANGLE OF MOUNTING HOLE IN DEG | 90.0 |
| ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 120.0 |
| MOUNTING HOLE/STUD CIRCLE DIAMETER | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |

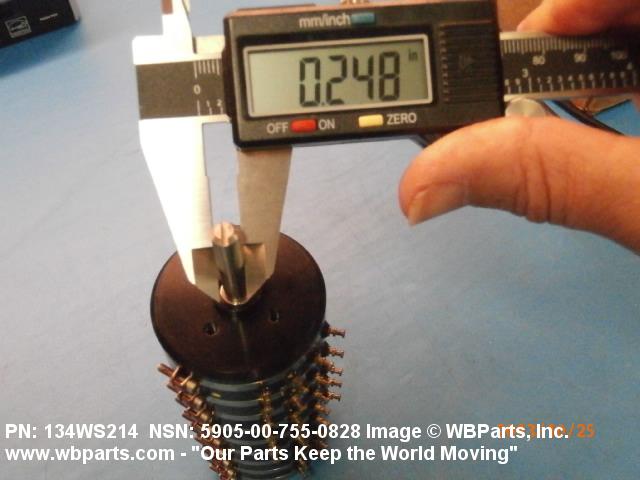

| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN | 350.0 NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-755-0828
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-755-0828
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
