NSN 5905-00-826-1215 666137-450, 00-826-1215, 666137450
Product Details | THERMAL RESISTOR
5905-00-826-1215 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 666137-450, 5905-00-826-1215, 00-826-1215, 5905008261215, 666137450, 008261215
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-826-1215 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-00-826-1215
Cross Reference | NSN 5905-00-826-1215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 666137-450 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-826-1215
Technical Data | NSN 5905-00-826-1215
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 1.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | -10.0 TO 10.0 |
| TEMP POINTS FOR RESISTANCE READINGS AT ZERO POWER | 50.0 DEG FAHRENHEIT 1ST RESISTANCE-TEMPERATURE POINT 140.0 DEG FAHRENHEIT 2ND RESISTANCE-TEMPERATURE POINT 212.0 DEG FAHRENHEIT 3RD RESISTANCE-TEMPERATURE POINT |
| ZERO POWER RESISTANCE AT SPECIFIED TEMP | 1.992 KILOHMS 1ST RESISTANCE-TEMPERATURE POINT 248.2 OHMS 2ND RESISTANCE-TEMPERATURE POINT 67.5 OHMS 3RD RESISTANCE-TEMPERATURE POINT |
| RESISTANCE TOLERANCE AT A SPECIFIED TEMP IN PERCENT | -10.0 TO 10.0 ALL RESISTANCE-TEMPERATURE POINTS |

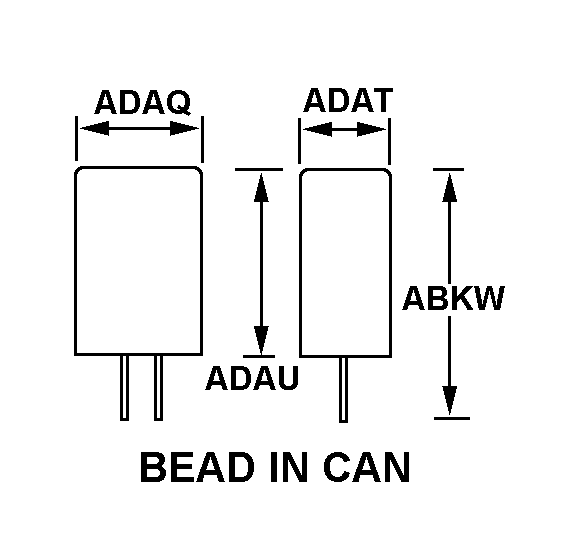

| STYLE DESIGNATOR | 11 BEAD IN CAN |
| OVERALL HEIGHT | 1.665 INCHES MINIMUM AND 1.685 INCHES MAXIMUM |
| BODY LENGTH | 0.416 INCHES MINIMUM AND 0.431 INCHES MAXIMUM |
| BODY WIDTH | 0.166 INCHES MINIMUM AND 0.181 INCHES MAXIMUM |
| BODY HEIGHT | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.375 INCHES MINIMUM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-00-826-1215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-826-1215
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
