NSN 5905-00-828-1111 205092, 205-092, 20509250142210
Product Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-828-1111 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 205092, 205-092, 20509250142210, 205-092-501-42210, 382664-001, 3826641, 382664-1, 5905-00-828-1111, 00-828-1111, 5905008281111, 382664001, 008281111
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-828-1111 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |

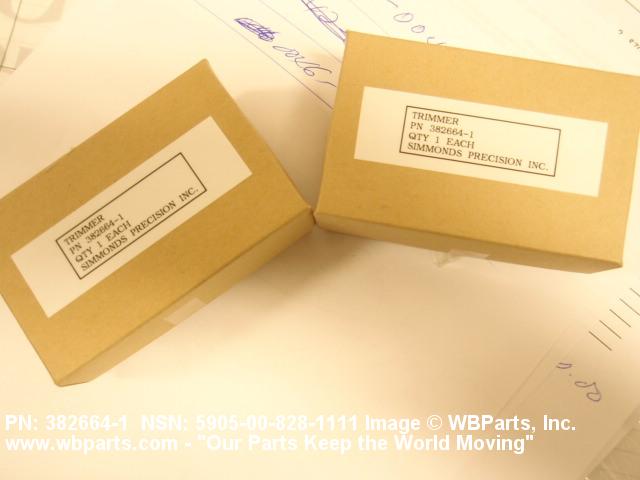

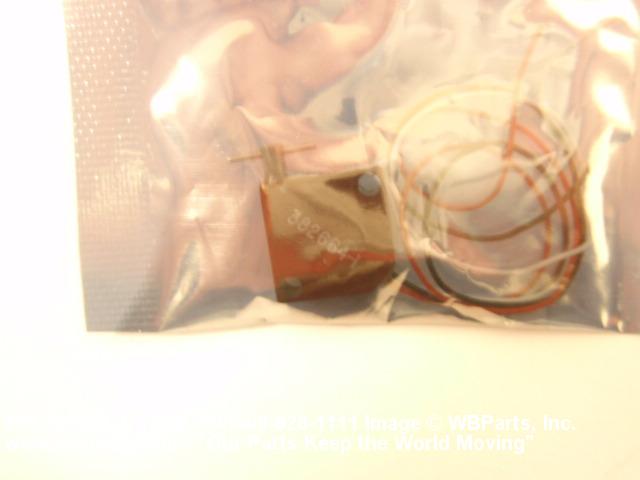

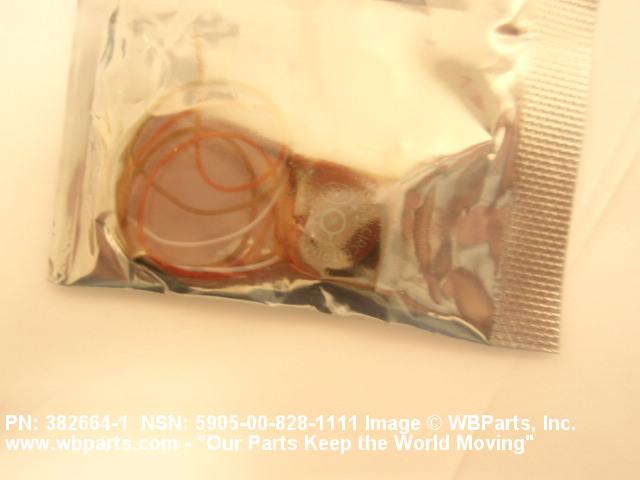

Drawings & Photos | NSN 5905-00-828-1111
Demand History | NSN 5905-00-828-1111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-828-1111 | 2025-03-84 | 2 | US |
| 5905-00-828-1111 | 2025-03-79 | 2 | US |
| 205-092-501-42210 | 2019-01-31 | 149 | DIBBS |
| 382664-001 | 2019-01-31 | 149 | DIBBS |
| 382664-1 | 2019-01-31 | 149 | DIBBS |
| 5905-00-828-1111 | 2018-03-63 | 126 | DIBBS |
| 5905-00-828-1111 | 2017-12-348 | 46 | DIBBS |
| 5905-00-828-1111 | 2017-08-239 | 90 | DIBBS |
| 5905-00-828-1111 | 2016-10-291 | 26 | DIBBS |
| 5905-00-828-1111 | 2016-10-279 | 26 | DIBBS |
| 5905-00-828-1111 | 2016-07-201 | 60 | DIBBS |
| 3826641 | 2016-04-120 | 2 | Malaysia |
| 5905-00-828-1111 | 2015-02-58 | 98 | DIBBS |
| 5905-00-828-1111 | 2015-02-47 | 98 | DIBBS |
| 5905-00-828-1111 | 2014-10-303 | 54 | DIBBS |
| 5905-00-828-1111 | 2014-07-198 | 45 | DIBBS |
| 5905-00-828-1111 | 2014-07-187 | 45 | DIBBS |
| 5905-00-828-1111 | 2014-05-133 | 62 | DIBBS |
| 382664001 | 2014-05-127 | 1 | Canada |
| 5905-00-828-1111 | 2013-07-185 | 43 | DIBBS |
| 5905-00-828-1111 | 2013-04-113 | 46 | DIBBS |
| 3826641 | 2012-08-228 | 2 | Malaysia |
| 5905-00-828-1111 | 2012-03-68 | 0 | DIBBS |
| 5905-00-828-1111 | 2011-08-213 | 55 | DIBBS |
| 3826641 | 2010-09-257 | 2 | United States |
| 3826641 | 2010-09-252 | 2 | United States |
| 3826641 | 2010-07-204 | 2 | Malaysia |
| 5905-00-828-1111 | 2010-05-139 | 50 | DIBBS |
| 5905-00-828-1111 | 2010-04-120 | 40 | DIBBS |
| 5905-00-828-1111 | 2010-02-36 | 54 | DIBBS |
| 5905-00-828-1111 | 2009-12-364 | 59 | DIBBS |
| 3826641 | 2009-10-293 | 2 | Malaysia |
| 5905-00-828-1111 | 2007-02-32 | 383 | DIBBS |
Cross Reference | NSN 5905-00-828-1111
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205-092 | 84048 | VERNITRON CORP VRN INTERNATIONAL DIV |
| 205-092-501-42210 | 84048 | VERNITRON CORP VRN INTERNATIONAL DIV |
| 382664-001 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
| 382664-1 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-828-1111
Technical Data | NSN 5905-00-828-1111
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 500.000 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 55.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |
| BODY STYLE | 32B RECTANGULAR W/MOUNTING HOLES |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.186 INCHES NOMINAL |
| BODY HEIGHT | 0.500 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.520 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 1C ROUND |
| SHAFT DIAMETER | 0.094 INCHES NOMINAL |
| SHAFT LENGTH | 0.145 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 360.0 NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | SHAFT DRILLED AND PIN INSERTED AND CENTERED CENTER LINE OF PIN LOCATED 3.100 IN FROM HOUSING |
Restrictions/Controls & Freight Information | NSN 5905-00-828-1111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5905-00-828-1111
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
