NSN 5905-00-977-2924 17045751REVA, 17-04575-1REVA, 00-977-2924

Product Details | THERMAL RESISTOR


5905-00-977-2924 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.

Part Alternates: 17045751REVA, 17-04575-1REVA, 5905-00-977-2924, 00-977-2924, 5905009772924, 009772924

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1962 00-977-2924

Drawings & Photos | NSN 5905-00-977-2924




Cross Reference | NSN 5905-00-977-2924


Part Number Cage Code Manufacturer
17-04575-1REVA 04614 TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS
17-04575-1REVA 80070 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5905-00-977-2924


Technical Data | NSN 5905-00-977-2924


Characteristic Specifications
ZERO POWER RESISTANCE 200.000 OHMS
ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP -10.0 TO 10.0
MAXIMUM POWER DISSIPATION RATING 2.00 WATTS
AMBIENT TEMP AT FULL RATED POWER 60.0 DEG CELSIUS
MAXIMUM OPERATING TEMP 150.0 DEG CELSIUS
THERMAL TIME CONSTANT IN SECONDS 30.0

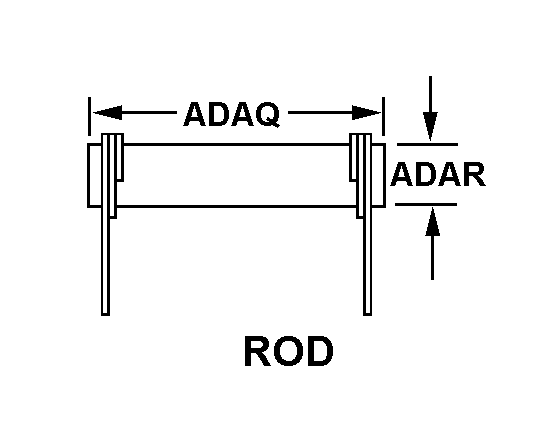

STYLE DESIGNATOR 16 ROD
BODY LENGTH 0.630 INCHES NOMINAL
BODY OUTSIDE DIAMETER 0.250 INCHES NOMINAL
INCLOSURE TYPE ENCAPSULATED
TERMINAL TYPE AND QUANTITY 2 WIRE LEAD
TERMINAL LENGTH 1.500 INCHES NOMINAL
TERMINAL DIAMETER 0.032 INCHES NOMINAL
RELIABILITY INDICATOR NOT ESTABLISHED
III REFERENCE TEMP IN DEG CELSIUS 25.0

Restrictions/Controls & Freight Information | NSN 5905-00-977-2924


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062960 REOSTATS/PARTS NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 72D unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5905-00-977-2924


Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
