Product Details | THERMAL RESISTOR
5905-01-013-8467 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Part Alternates: 21405, 5905-01-013-8467, 01-013-8467, 5905010138467, 010138467
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 DEC 1975 | 01-013-8467 | 00309 ( RESISTOR, THERMAL ) |
Drawings & Photos | NSN 5905-01-013-8467
Demand History | NSN 5905-01-013-8467
Cross Reference | NSN 5905-01-013-8467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21405 | 02009 | RDF CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-01-013-8467
5905-01-013-8589, 5905-01-013-8856, 5905-01-013-8857, 5905-01-013-8859, 5905-01-013-8862
Technical Data | NSN 5905-01-013-8467
| Characteristic | Specifications |
|---|---|
| MAXIMUM OPERATING TEMP | 120.0 DEG FAHRENHEIT |

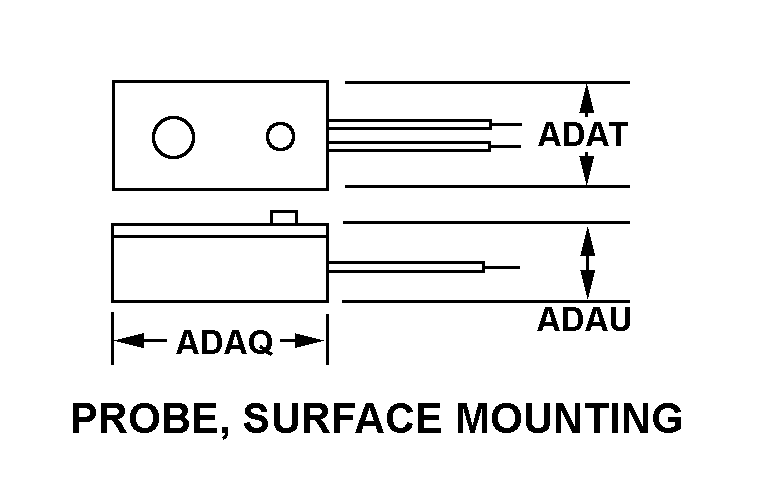

| STYLE DESIGNATOR | 27 PROBE, SURFACE MOUNTING |
| BODY LENGTH | 2.750 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| BODY HEIGHT | 0.560 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.332 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LENGTH | 180.000 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.032 INCHES NOMINAL |
| MANUFACTURERS CODE | 02009 |
| DESIGN CONTROL REFERENCE | 21405 |
Restrictions/Controls & Freight Information | NSN 5905-01-013-8467
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-01-013-8467
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
